Everlast ev-700 - Stage C

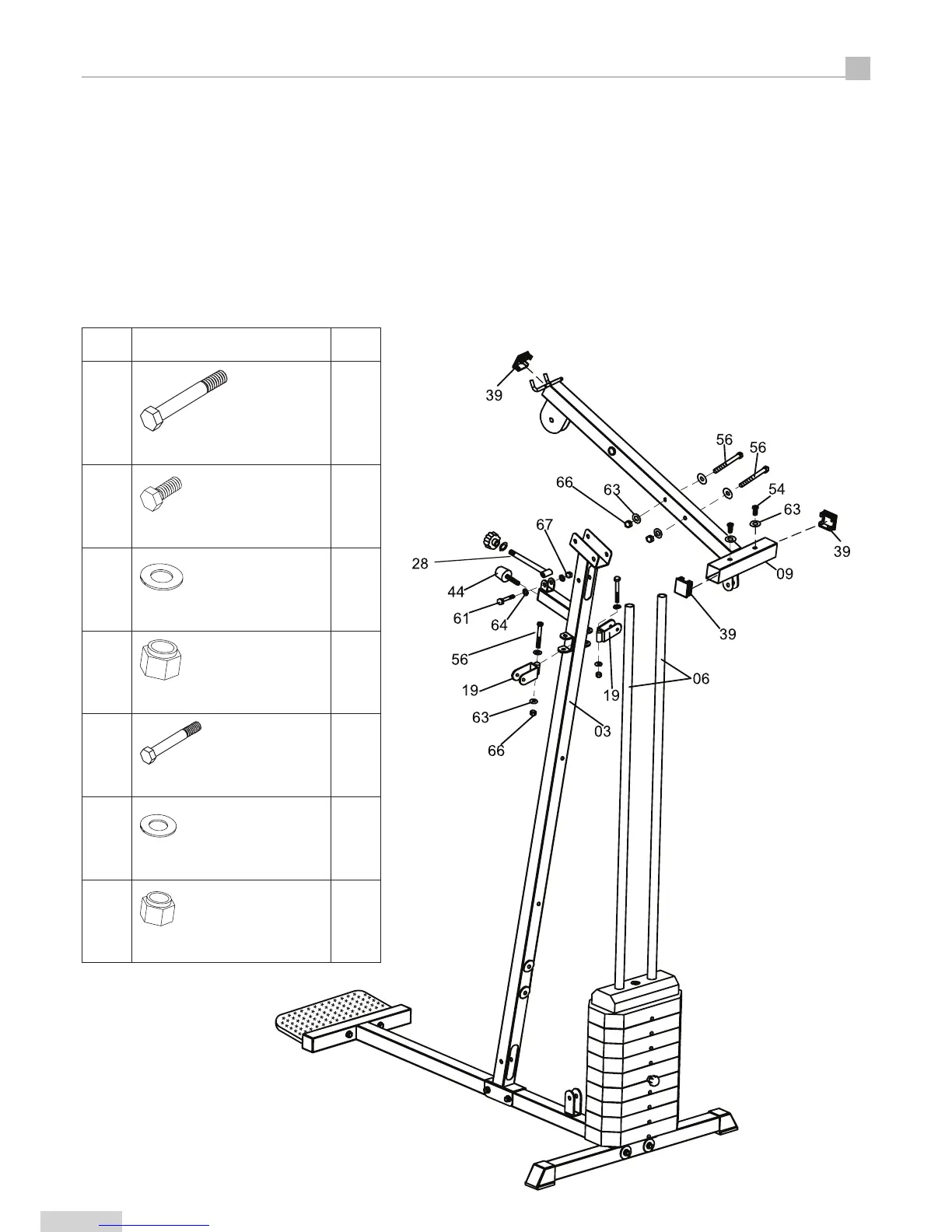

ASSEMBLY INSTRUCTIONS
No. Description Q'ty
56
Hex Bolt (M10 x 65mm)
4
54
Hex Bolt (M10 x 20mm)
2
63
Washer (M10)
10
66
Nylock Nut (M10)
4
61
Hex Bolt (M8 x 40mm)
1
64
Washer (M8)
2
67
Nylock Nut (M8)
1
Stage C
1. Lay the Upper Cross Beam (09) onto the Main Frame (03) and connect them using 2 x M10 x 65mm
Hex Bolts (56), 4 x M10 Washers (63) and 2 x M10 Nylock Nuts (66).
2. Connect the Weight Guide Tube (06) to the Upper Cross Beam (09) using 2 x M10 x 20mm Hex Bolt
(54), 2 x M10 Washers (63).
3. Connect the Press Pin (28) to the Main Frame (03) using M8 x 40 mm Hex Bolts (61), 2 x M8
Washers (64) and M8 Nylock Nuts (67).
4. Connect the Volitant U (19) to the Main Frame (03) using 2 x M10 x 65mm Hex Bolt (56), 4 x M10
Washers (63) and 2 x M10 Nylock Nuts (66).
10
HOME GYM
HELP LINE NUMBER: 08456 400800
ev-700
