Everlast ev-700 - Stage E

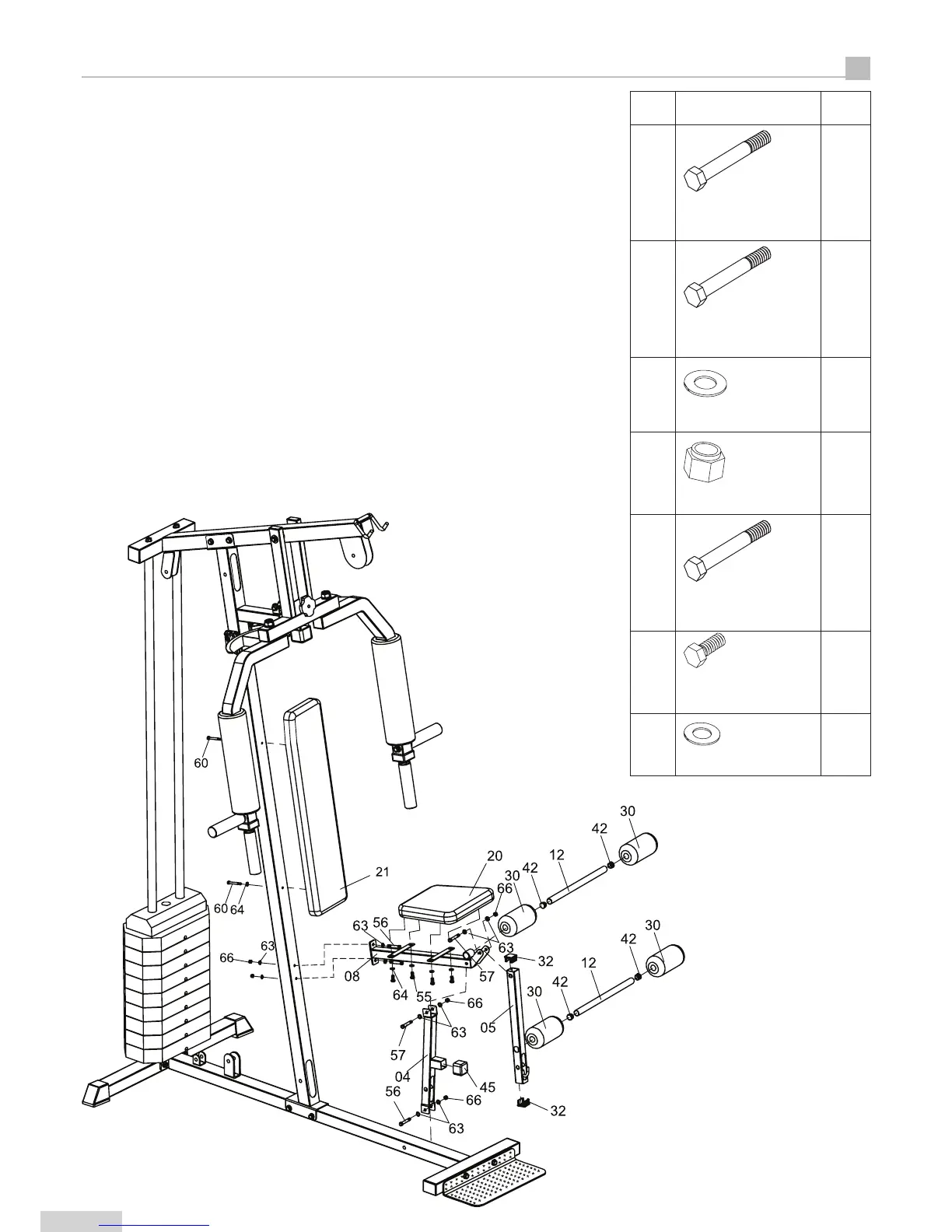

Stage E
1. Fit the Back Cushion (21) to the Main Frame (03) using 2 x M8 x
65mm Hex Bolts (60) and 2 x M8 Washers (64).
2. Connect the Front Support Frame (04) to the Front Base Frame
(01) using M10 x 65 Hex Bolt (56), 2 x M10 Washers (63) and M10
Nylock Nut (66).
3. Connect the Seat Frame (08) to the Main Frame (03) and the Front
Support Frame (04) using 2 x M10 x 65 Hex Bolts (56), M10 x 60
Hex Bolt (57), 6 x M10 Washers (63) and 3 x M10 Nylock Nuts (66).
4. Connect the Leg Extension Frame (05) to the Seat Frame (08) using
M10 x 60 Hex Bolt (57), 2 x M10 Washers (63) and M10 Nylock Nut
(66).
5. Fit the Seat Cushion (20) to the Seat Frame (08) using 4 x M8 x
15mm Hex Bolts (55) and 4 x M8 Washers (64).
6. Insert the Foam Pipes(12) into the hole of the Leg Extension
Frame(05), then attach two Small Foam (30) to Foam Pipe (12).
7. Insert the Foam PIpes(12) into the hole of the Seat Frame (08), then
attach two Small Foam (30) to Foam Pipe (12).
ASSEMBLY INSTRUCTIONS
No. Description Q'ty
56
Hex Bolt
(M10 x 65mm)
3
57
Hex Bolt
(M10 x 60mm)
2
63
Washer (M10)
10
66
Nylock Nut (M10)
5
60
Hex Bolt
(M8 x 65mm)
2
55
Hex Bolt
(M8 x 15mm)
4
64
Washer (M8)
6
12
HOME GYM
HELP LINE NUMBER: 08456 400800
ev-700
