eversolo DMP-A6 Master Edition - SPDIF (Coaxial;Optical) Output; XLR;RCA Output

Page 26
HIGH FIDELITY MUSIC STREAMER

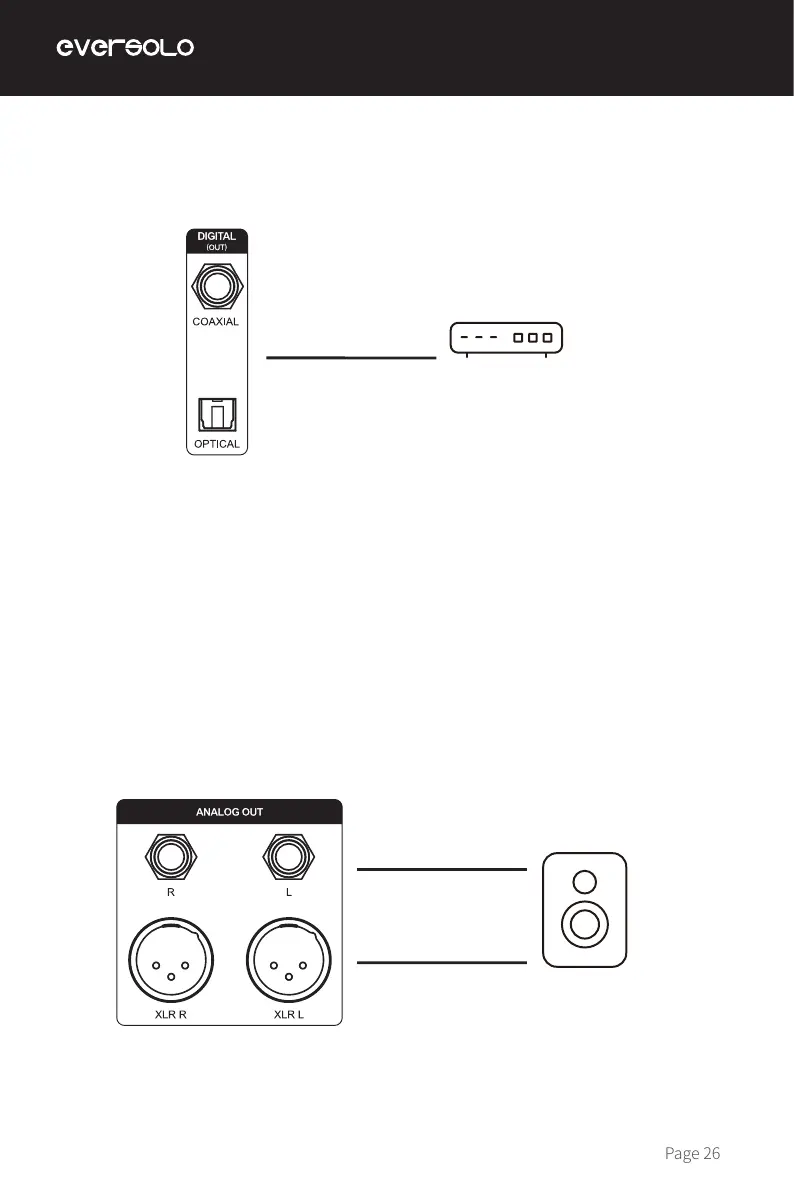

Use a Coaxial/Optical cable to connect the device’s Coaxial/Optical output to the AV
receiver input, then go to "Home screen > Source > Internal Player > SPDIF".
Use a pair of RCA/XLR audio cables to connect the device’s RCA/XLR output to the input
of active speakers or HiFi power amps, then go to "Home screen > Source > Internal Player
>RCA or XLR".
Note:
*Optical and coaxial outputs support up to stereo PCM 192KHz 24Bit, DSD64 Dop, MQA
format.
SPDIF (Coaxial/Optical) Output
XLR/RCA Output
Coaxial/Optical cable
DAC/AVR
RCA-type audio cable
XLR balanced audio cable
Stereo HiFi audio system
(HiFi headphone ampli󽗉er
/Active monitor speaker)
