Air Conditioner Service Manual
8
1). Frequency Slowly Increasing(FSI):
a. If 6℃≤IPT＜7℃, the frequency increasing rate is 1Hz/60s, slowly increasing operation speed.
b. When IPT≥7℃, unit quit from protection.
2). Frequency Limitation:
If 5℃≤IPT＜6℃, the compressor frequency forbidden to increase
3). Normal Frequency Decreasing (NFD):
If 3℃≤IPT＜4℃, the frequency decreasing rate is 8Hz/90s, until to the lower frequency limit.
4). Fast Frequency Decreasing (FFD):
If 2℃≤IPT＜3℃, the frequency decreasing rate is 16Hz/90s, until to the lower frequency limit.
5). Unit stop:
a. When IPT＜1℃ for 3min continuously, unit stops working for anti-defrosting protection.
b. While IPT＞6℃, and the unit stopped for 3 min already, can the unit recover to operation.
4.1.3 Dry mode
1. Temperature control: 16~31℃.
Fan speed: low
Vane blade position: as customer preset
2. When ODU failure or stops for protection, IDU works as preset.
3. Failure protection: as cooling mode.
4. Energy saving and sleep mode: Invalid.
4.1.4 Heating mode
1. Temperature control: 16-31℃.

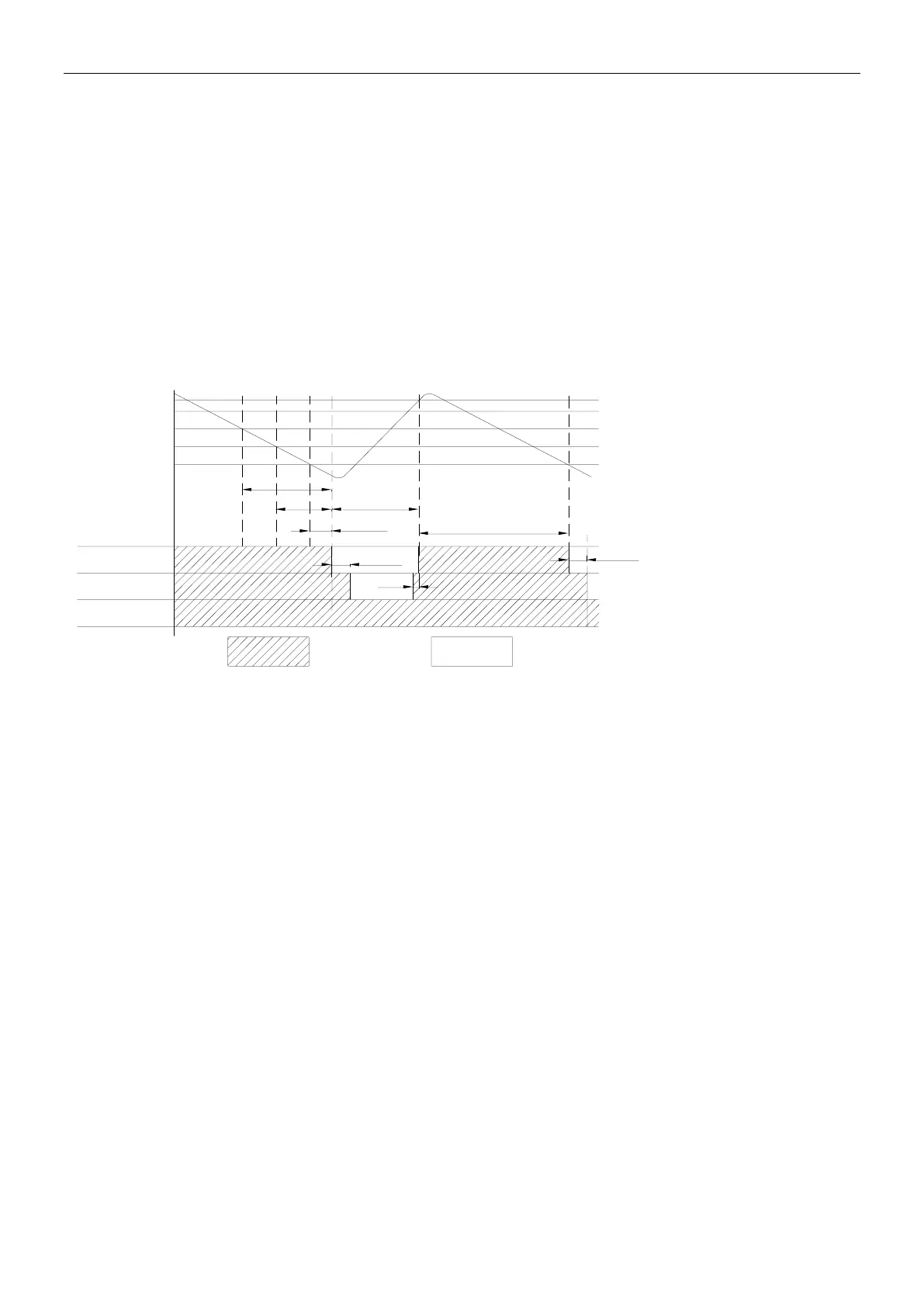

2. Compressor and process control.
1). When ST-CRT≥0.5℃, the compressor starts up working, AC operates as customer preset;;
2). When
a. ST-CRT≤－3℃ and compressor keeps 2 min continuously; or
b. ST-CRT≤－2℃ and compressor works in lowest frequency for 5 min continuously; or
c. RT-CRT≤－1℃ and compressor works in lowest frequency for 10 min continuously,
The compressor stops operation.
3). The compressor frequency control: Based on relation of RT & ST, and the changing speed of RT.
4). The compressor will also stop working while unit:
a. switched off.
b. under protection.
c. changed to fan mode.
5). Under normal operation, the compressor can be stopped by program only working after 7 min once it starts up.
6). In the process of unit operation, once the compressor ceased, it should be 3 min delay for the next procedure.
3. IDU time delay: When compressor stops or unit switches off while in heating mode, IDU fan motor will work for a
few seconds more to prevent overheat.
