1000W / 1300W GOLD Power Supply User Manual 1000W / 1300W GOLD Power Supply User Manual
Introduction: Premium Power
Safety Information
Thank you for purchasing the EVGA 1000G2/1300G2 80PLUS® GOLD Rated power supply. EVGA 1000G2/1300G2
are premium quality power supplies intended to meet the needs of the most demanding PC enthusiast systems.
Designed with enthusiast needs in mind EVGA 1000G2/1300G2 is the best choice to power next generation
systems.
STABLE POWER
The Gold series has outstanding electrical performance with ultra stable voltage and extremely clean power
output. This can help you achieve the highest possible overclock (optional) and provide the most stable and reliable
power to all components. The Gold series also provides up to 90% efficiency and is 80 PLUS GOLD certified.
TOP QUALITY PROTECTIONS
The SuperNOVA GOLD series comes equipped with the most comprehensive protection set possible, including
Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Short Circuit
Protection (SCP), Over Current Protection (OCP). This product is also covered by an exceptional 10-year warranty
and EVGA’s legendary customer service and support.
SUPERIOR BUILD QUALITY
The SuperNOVA GOLD series is built to the highest standards, using 100% Japanese capacitors on main board
rated at 105 degrees Celsius and high quality brand-name semiconductor components for the highest performance
and reliability. The Ultra Quiet 140mm double ball bearing fan provides adequate cooling to allow near silent
operation when not needed and proper cooling during heavy load operation.
MODULAR DESIGN
Reduce clutter in the case, improve ambient temperatures with better airflow overall and provide a clean look to
any system. Fully Modular PSU designs allow the user to disconnect the cable from the power supply side if they
are not needed for the specific configuration. This can help free up space inside the case and improve cable
management as well as airflow throughout the system. EVGA offers fully modular designs on all G2 series and
include a cable storage bag in case you plan to upgrade or add more components for storage.
Included with your EVGA 1000G2/1300G2 power supply offers the following items for proper installation and
optional testing:
What’s in the Box
(1) EVGA Power Supply
(1) EVGA Manual
(4) Mounting Screws
(1) EVGA PSU Tester (24-pin)
(1) EVGA Cable Bag
(1) 24-pin ATX Cable
(2) 4+4 pin EPS12V
CPU Cables
(4) 6+2 pin PCI-E VGA
Cables
(2) 6+2 pin + 6 pin PCI-E
VGA Cables
(2) 3 SATA cables
(2) 2 SATA cables
(1) 3 Molex cable
(1) 2 Molex cable +
1 Floppy connector
(1) Power Cord cable
(1) EVGA Power Supply
(1) EVGA Manual
(4) Mounting Screws
(1) EVGA PSU Tester (24-pin)
(1) EVGA Cable Bag
(1) 24-pin ATX Cable
(2) 4+4pin EPS12V CPU Cable
(4) 6+2pin PCI-E VGA Cables
(2) 6+2pin +6pin PCI-E
VGA Cables
(4) 3 SATA cables
(1) 3 Molex cable
(1) 2 Molex cable +
1 Floppy connector
(1) Power Cord cable
WARNING: This unit has no user-serviceable parts inside. Opening the casing presents a risk of electrocution and will
void the products warranty. EVGA will not be responsible for any result of improper use, including but not limited to,
any use of the product outside of its intended purpose or use inconsistent with the warranty terms available online.
(Warranty information is available at www.evga.com/support/warranty and this manual is available at
www.evga.com/manuals).

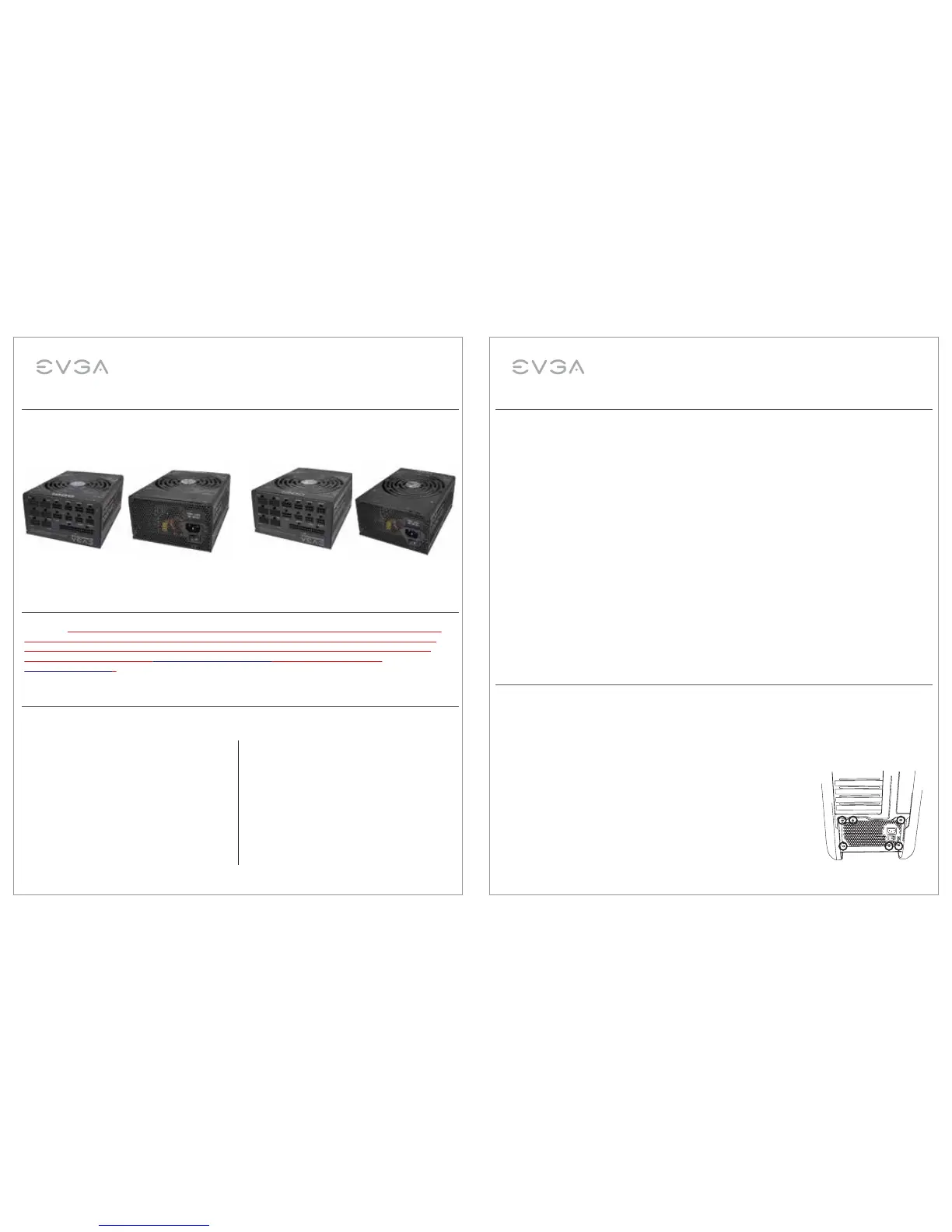

SuperNOVA 1000W GOLD
1000G2 Series 1300G2 Series
SuperNOVA 1300W GOLD
Installation
1. Remove the power supply from its packaging.
2. (Optional) Using the provided PSU testing tool, connect the 24pin cable to the
PSU, then attach the testing tool to the 24pin cable. Connect the ATX power cable
to the PSU and plug the PWR cable into the outlet or surge protector/UPS you plan
to use. Once connected, turn the power switch to the ON position.
Please note: If you are using a water cooling configuration, this testing tool
provides a simple, safe, option for bleeding/draining/testing water cooling
components without the need of a paperclip or other device.
3. Use the screws provided with your case to install the power supply into your
computer. NOTE: It is recommended to install the power supply with the fan
facing down. However, if your case places the power supply at the bottom of
the case and there are no ventilation holes available, it may be best to install
the power supply with the fan facing up for greater efficiency and reliability.
Features
EnglishEnglish
2 3
