EVGA SuperNOVA 650 G1 - SuperNOVA NEX 750 G Cable Configuration; SuperNOVA NEX 750 G Specifications

EVGA
SuperNOVA NEX750G GOLD
+50°C ambient @ full load
AC Input
100-240 VAC~, 10-5A, 50-60 Hz
DC Output +5V +3.3V +12V1 +12V2 +12V3 +12V4 -12V +5Vsb
MAX output, A
25 25 20 20 20 20 0.8 3
Combined, W
150 61A / 732W
9.6 15
Output power,
Pcont
750W @ +50°C
750W / 650W GOLD Power Supply User Manual 750W / 650W GOLD Power Supply User Manual

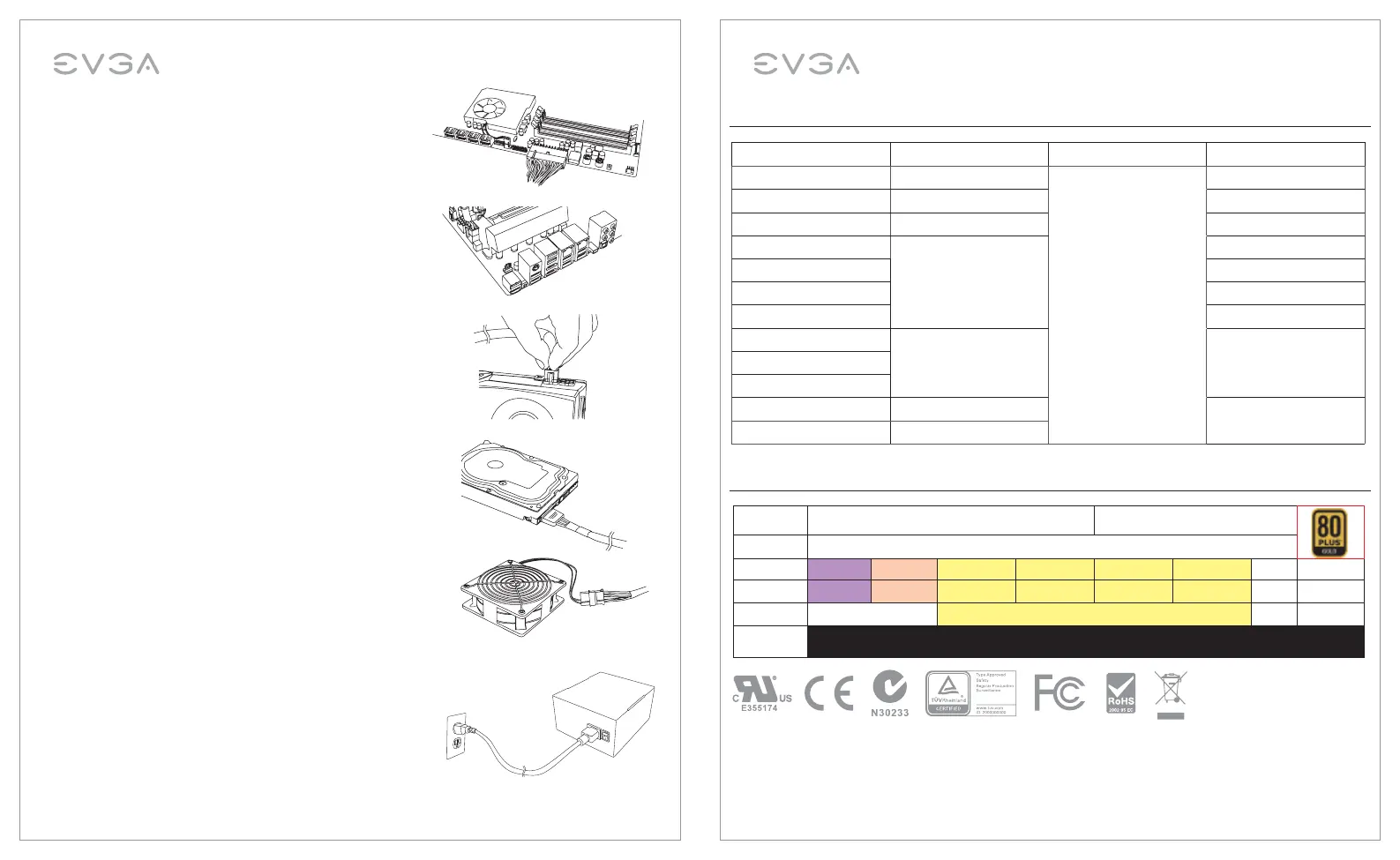

4. Connect the 24-pin ATX cable to the motherboard.
5. Connect the 4+4-pin EPS12V cable to the motherboard.
(Optional) – If you plan on extreme overclocking and your
motherboard supports additional 8pin or 4pin CPU power
connectors, connect the second 4+4-pin EPS12V cable. This is
only needed for heavy overclocking or for Dual CPU motherboards.
6. Connect the 6/6+2-pin PCI-E cables to your graphic card(s).
NOTE: Do not attempt to plug an 8-pin PCI-E cable into a 6-pin
connector without first detaching the two extra pins.
7. Connect SATA power cables to all data drives or optical drives.
(hard drives, solid state drives, optical drives)
8. Connect the peripheral “Molex” 4-pin connectors for fans, pumps,
legacy components and other devices/adapters.
9. Connect the AC power cord to your power supply and to the wall.
Check all connections to assure a solid connection and turn the
power switch on the power supply to the ON position.
Over Voltage Protection, Under Voltage Protection, Short Circuit Protection, Over Power Protection,
Over Current Protection, Over Temperature Protection.
Dimensions: 85mm (H) x 150mm (W) x 180mm (L)
SuperNOVA NEX 750G Cable Configuration
SuperNOVA NEX 750G Specifications
Modular Connector Cables Cable Color +12V Rail
MB 1x ATX 24 pin
Black
+12V1
CPU1 1x EPS12V 4+4 pin +12V1
CPU2 1x EPS12V 4+4 pin +12V3
VGA1
4x PCI-E 6+2 pin
+12V2
VGA2 +12V2
VGA3 +12V4
VGA4 +12V4
SATA1
3x SATA 5 pin x3 +12V3SATA2
SATA3
PERIF1
1x Molex 4 pin x3
1x Molex 4 pin x3 + 1 Floppy
+12V3
PERIF2
