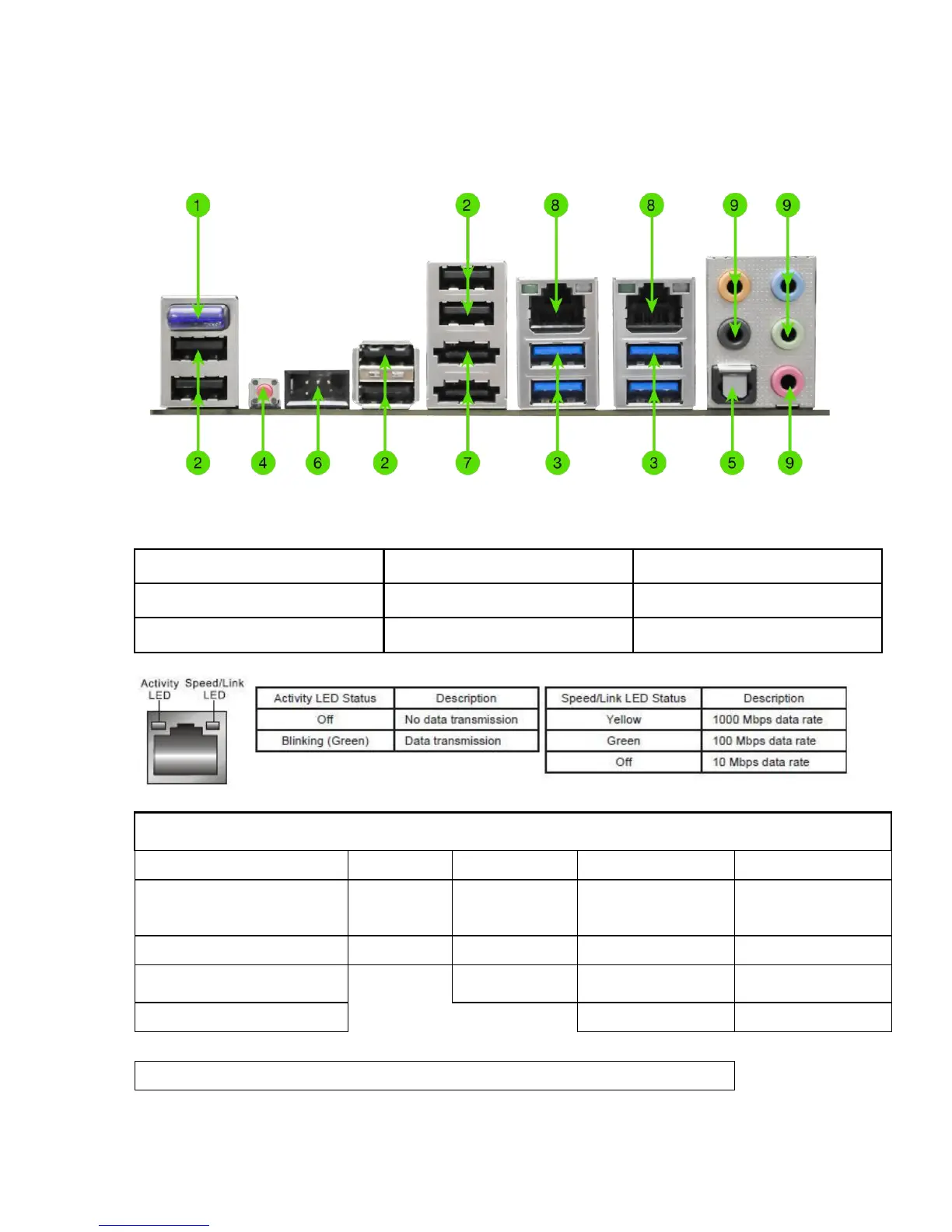

Figure 2. Chassis Rear Panel Connectors
1. Bluetooth
4. CMOS Reset Switch
7. eSata Ports
2. USB 2.0
5. Optical S/DIF Out
8. NIC
3. USB 3.0
6. EVBot Connecter
9. Analog Audio Output Jacks
Analog Audio Port Breakdown
2/2.1
Channel
4.0/4.1 Channel
5.1 (6 Channel)
7.1 (8 Channel)
Blue
Line in
Line In
Line in
* Side channel
Green
Line Out/
Speaker Out
Front Speaker/
Speaker+Sub
Out
Front Speaker/
Speaker+Sub Out
Front Speaker/
Speaker+Sub Out
Pink
Mic In
Mic In
Mic In
Mic In
Black
Rear Speaker
Out
Rear Speaker Out
Rear Speaker Out
Orange
Center/Voice channel
Center/Voice channel
* Only used in 7.1 and is changed via Realtek Software from within Windows.
