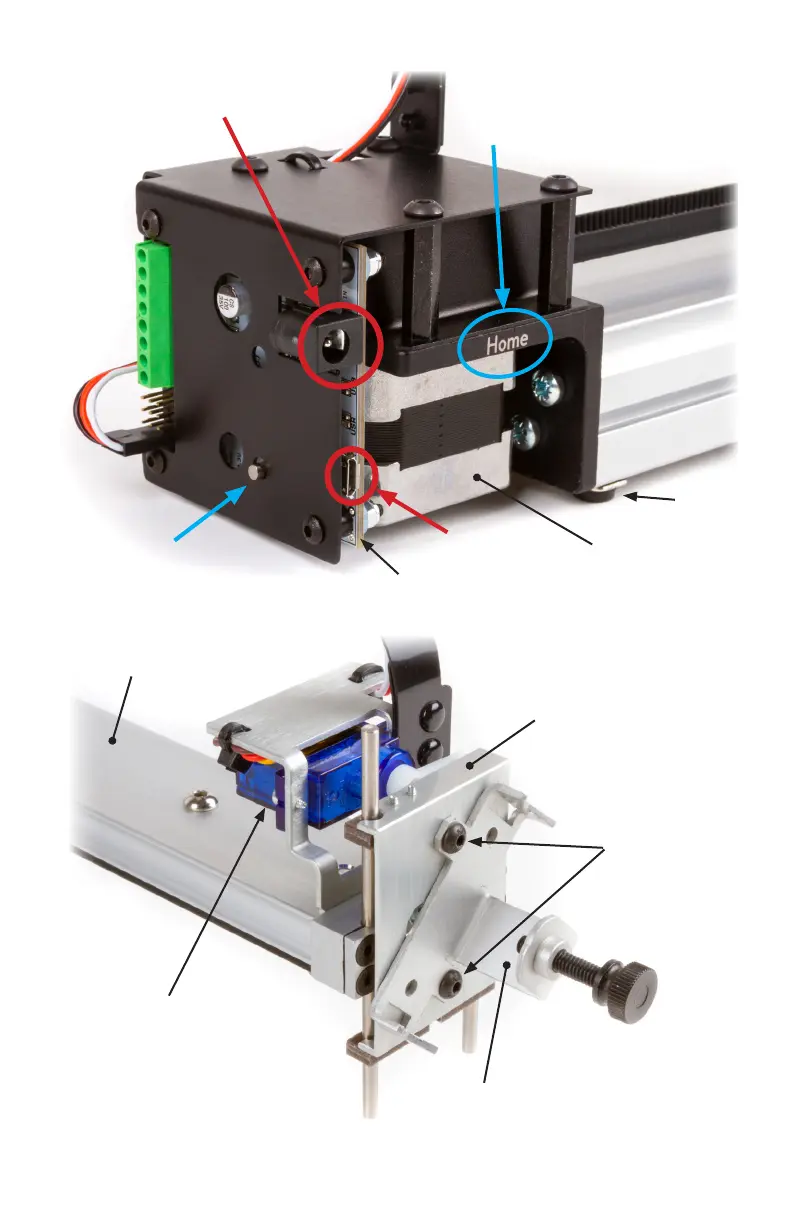

Detail: Left side of base

Rubber

Feet

Power Jack

EBB

Cover

Stepper motor

Pause Button

“EBB” Control board

USB Port

Home Position Label

Detail: Pen holder

Pen-lift

servo motor

Vertical slide

Thumbscrew

Pen Clip

Screws

Vertical shafts

Note: AxiDraw ships with its pen clip disconnected; see the next section.

Y Carriage
