19

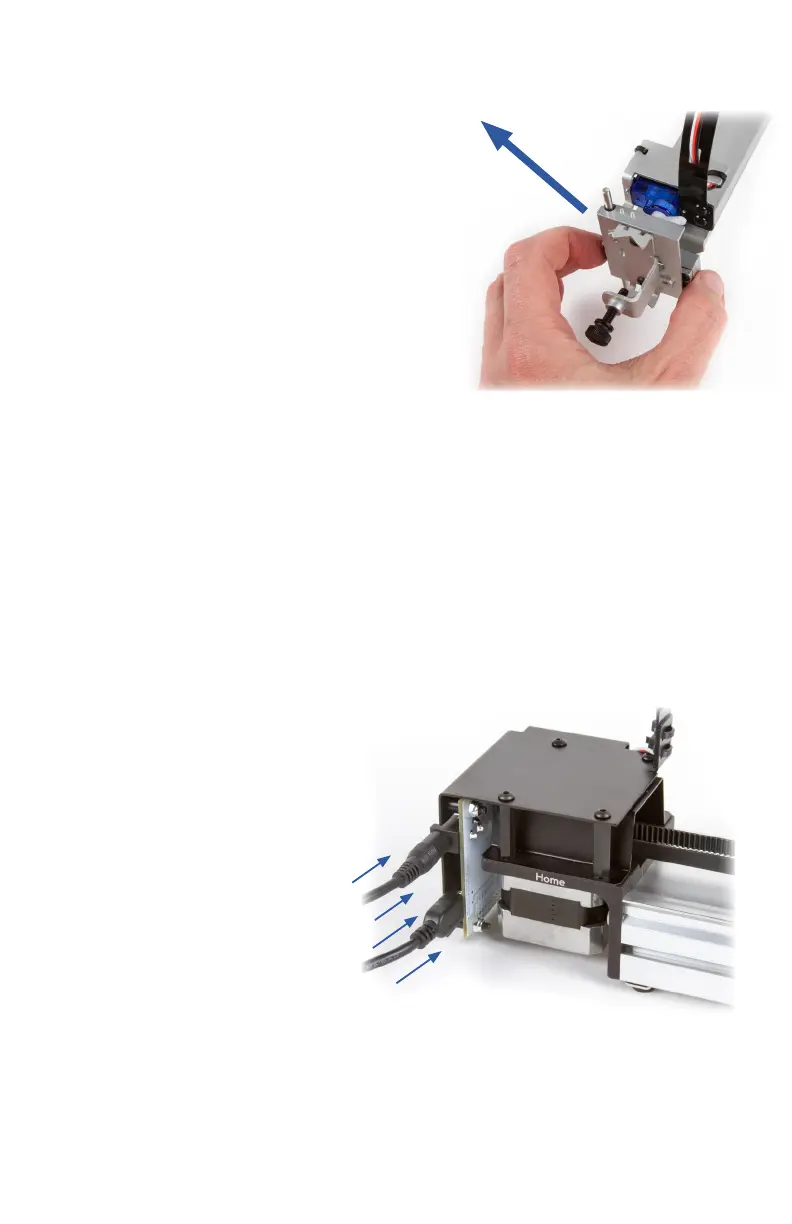

Once you have identified the Home Corner, slide the carriage there by hand.
You can move the carriage by the solid block of
metal behind the vertical slide of the pen hold-
er. (Do not push the vertical slide itself or the
pen clip directly.)
If the carriage does not move easily, you may
need to turn o the motors. To do so, select
from the Extensions menu in Inkscape:
AxiDraw Utilities > Disable XY Motors
For more about the Home corner, please see
§5. In detail: The Home Corner, on page 24.
4.3 Connect Power and USB
Next, connect the power and USB cables to the AxiDraw as shown below. Con-
nect the USB cable to any available USB port on your computer, and plug the
power adapter into a working outlet.
For more information about the power and USB cables, please see
§7. In detail: Power and USB, on page 28.
USB Cable
Power Adapter Cable
To Next Page
