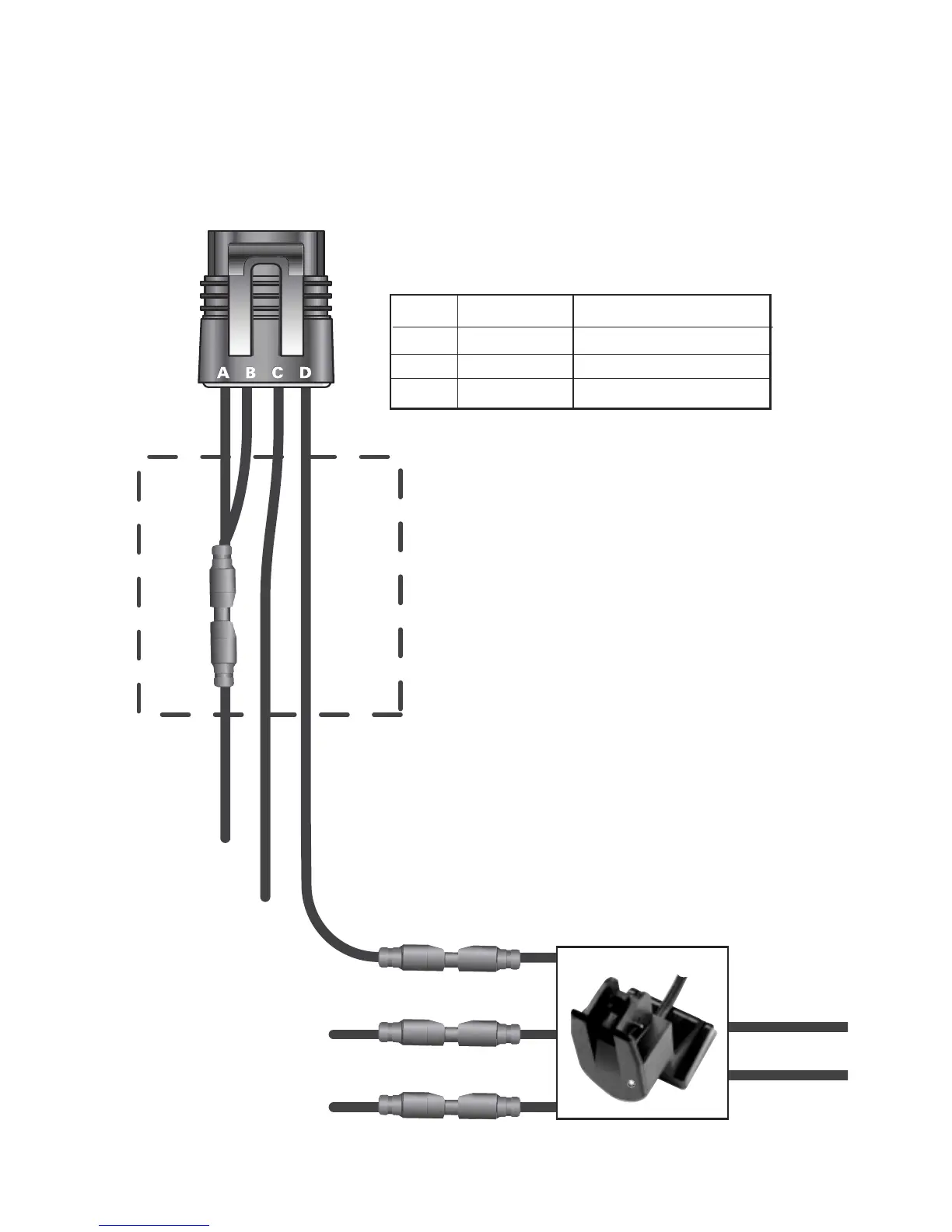

Evinrude Speedometer/Depth Sounder - Four Wire Connector

Page 8
Harness HN0353
Four Wire Connector
Small Plug(CN0082)
To Commander™
Shrink Tubing
or Wrap
Black
Green
Red
Bare
Purple
White
w/ Blue Stripe
Pin A Purple +12 Ignition Power
Pin B Purple +12 Ignition Power
Pin C Black Ground
Pin D White/Blue Speedometer Input
ECR 1903 12/21/01
(Ignition)
(Paddle Wheel Signal)
(Paddle Wheel Ground)
(Paddle Wheel +12 vDc)
(Ground)
Blue
(Depth
Sounder
Signal)
Black
(Depth
Sounder
Ground)
Paddle Wheel Sender
Figure 4
