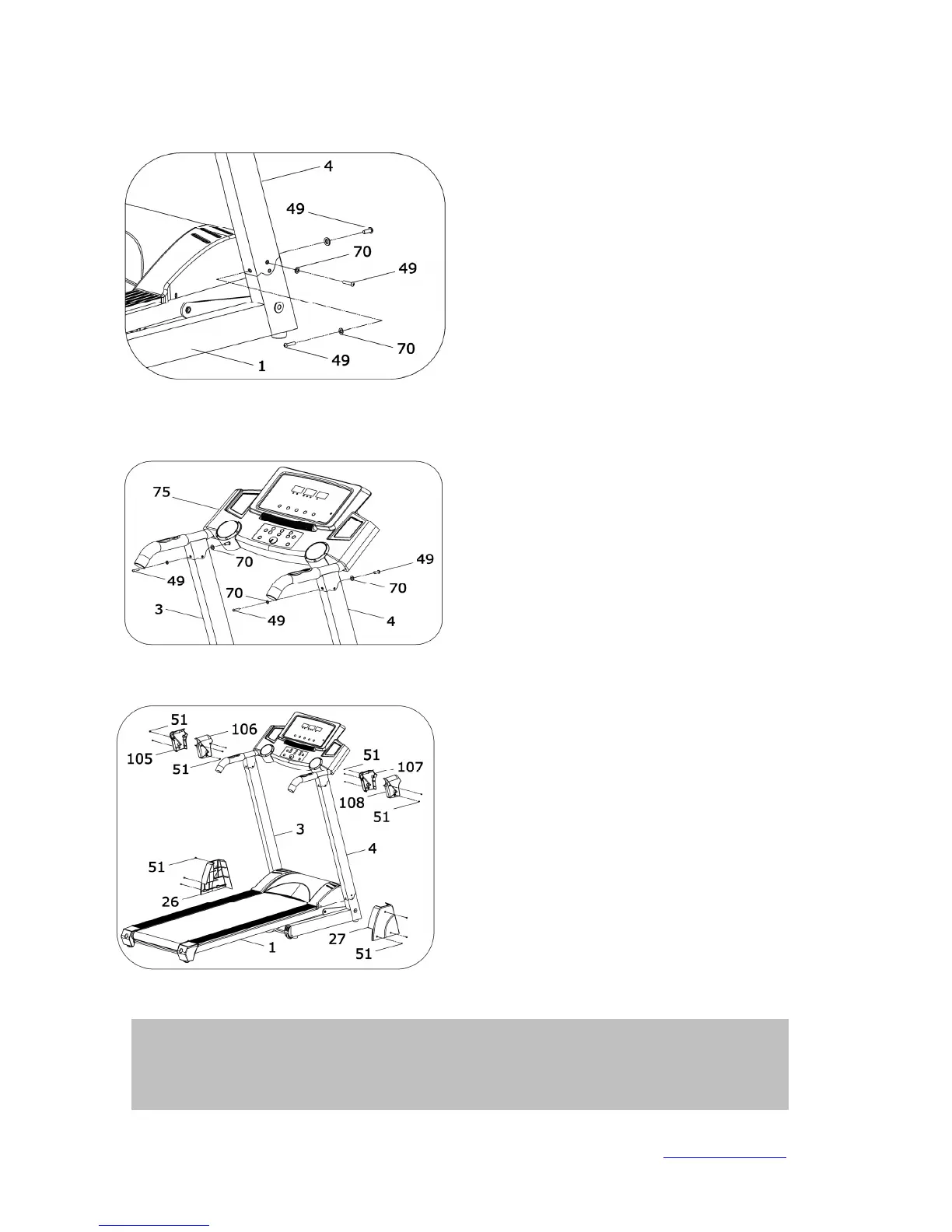

ASSEMBLY STEP 4:
ASSEMBLY STEP 5:
ASSEMBLY STEP 6:
Slide right upright (4) onto MAIN
FRAME (1)
To attach the upright posts (4) to the
frame use bolt (49) and lock washer (70)
using the 5# Allen wrench
Note: Support the right upright with your
hand to avoid injury.
ATTENTION: complete the assembly as pictured above and tighten all bolts
before you use the treadmill. Read the instructions carefully.
Take bolt (49) and Lock washer (70)
and insert them into R&L upright (3,
4). Using the 5# Allen wrench
Then lock the COMPUTER (75)
1. Screw the L&R handlebar cover 105,
106, 107, 108 onto L&R UPRIGHT 3 & 4
with screw (51) by using the Allen
wrench.
2. Screw the L&R upright cover 26 & 27
onto L&R UPRIGHT 3 & 4 with screw
(51) by using the Allen wrench.
To Next Page
