11
POND
UV
Varipump
1½” or 2” Pipe
4” Pipe
Return to pond

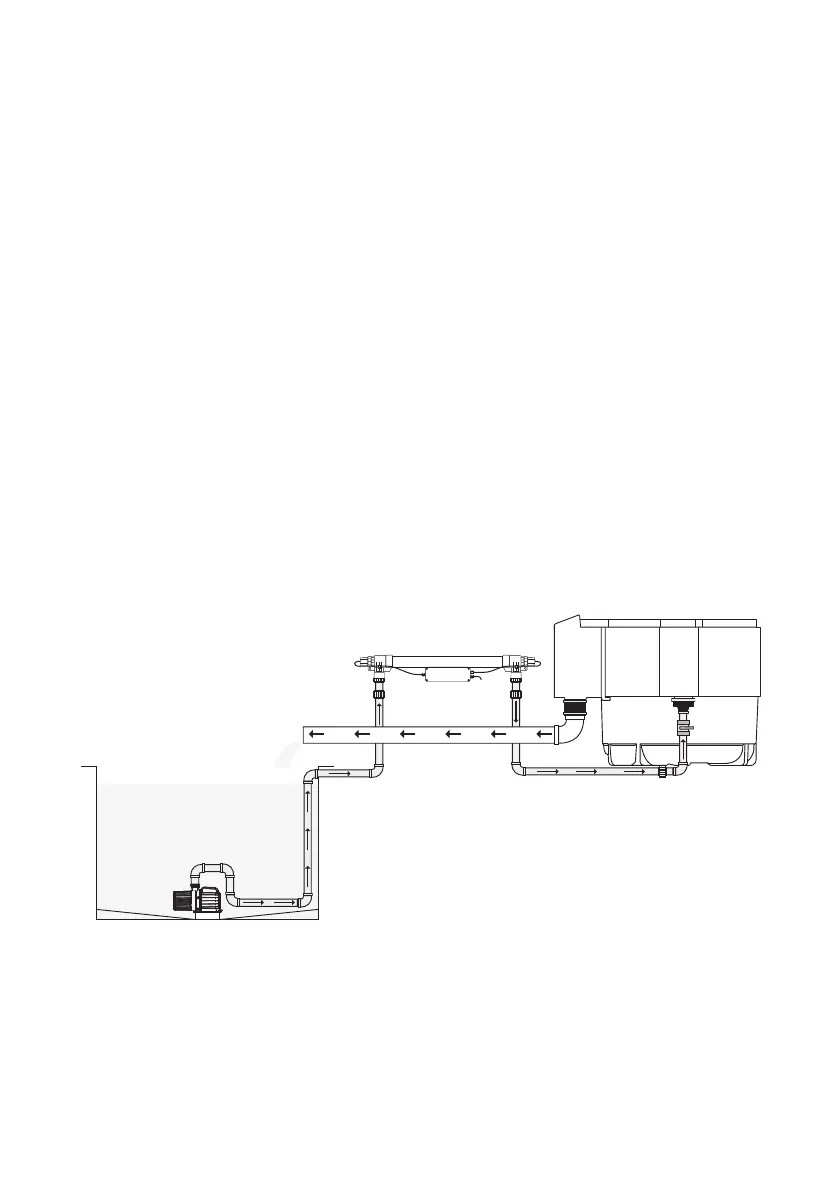

Pump fed filter installation example shown
INSTALLATION ADVICE - PUMP FED SET-UP
Varipump can be submersed in water, as part of a pump fed system. When installing
on pump fed systems we recommend using the hosetails provided to connect up to
flexible hose (not supplied).
1. Flexible hose (not supplied) should be the widest possible diameter.
2. Extra steps on hosetails should always be sawn off and removed.
3. A hoseclip (not supplied) must always be used to hold the hose in place on
the hosetail.
4. Ensure sealing rings are fitted properly.
5. If using pressure pipe, use the appropriate Single Unions, Threaded Female To
Plain Female as shown on page 8.
6. All wiring (electrical) work must be carried out by qualified electricians and must be
installed in accordance to the local codes.
7. The motor must be earthed.
8. The controller must not be submerged in water.
9. Do not operate the pump without water.
To Next Page
