Before installing the Varipump, it is important to consider its location in relation to the mains
power supply and control box. There is 10 metres of cable from the control box to the pump,
and there is 2 metres of cable to connect the control box to the mains supply.
The control box is rated IPX4, therefore it is weather / rain-proof and can be kept outside,
but it MUST NOT be submerged in water.
We recommend securing the control box to a wall in a location you can easily access at all
times. Use the four slots around the edge of the control box to help mount the box, using
appropriately sized screws and wall fixing plugs.
In the unlikely event the pump is supplied with a plug, this can be cut off and removed, as
the mains supply cable should be wired into a safe, compliant, outdoor electrical system,
with an RCD cut-off. Cutting the plug off will not invalidate the warranty.

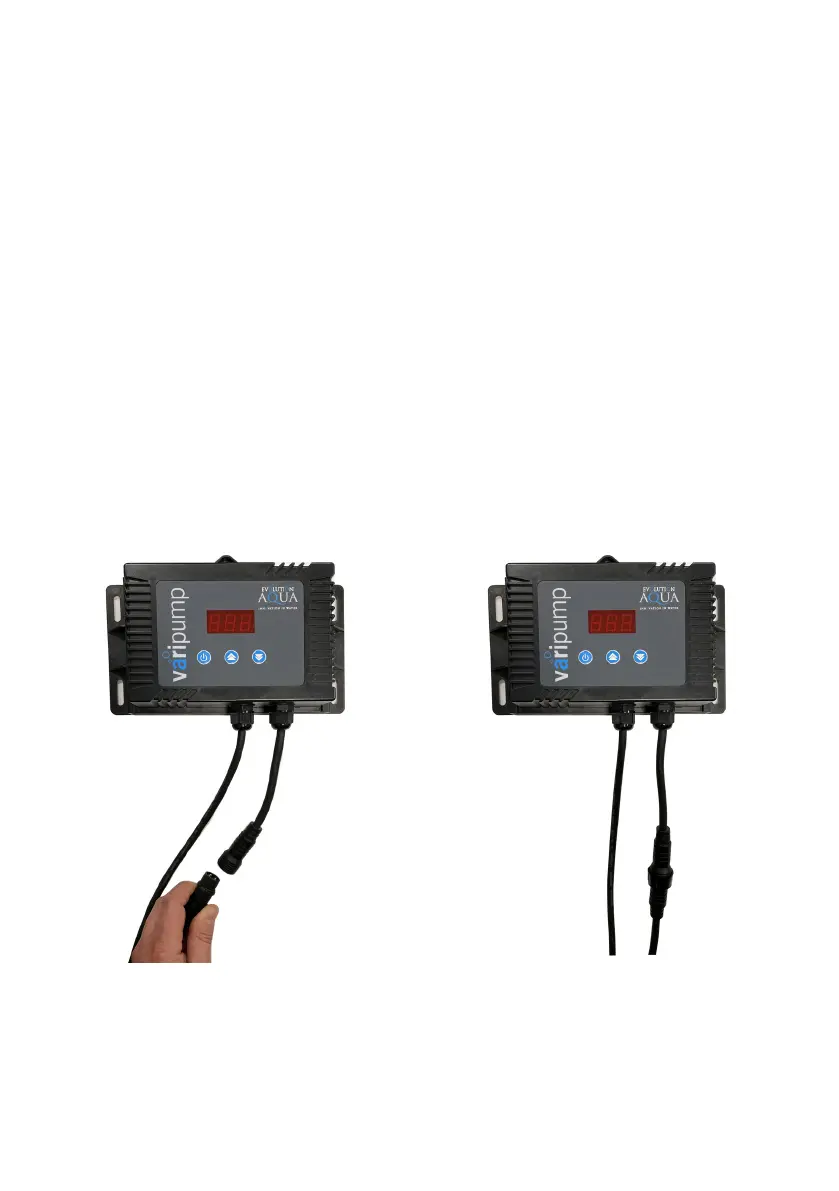

The cable from the pump has a weatherproof 4 pin connector that should be inserted into
the control box connector. Then slide the sleeve over the connectors and tighten up.
SETTING UP THE VARIPUMP CONTROL BOX
MAINS
POWER
CABLE
MAINS
POWER
CABLE
PUMP
CABLE
PUSH-FIT SCREW
PUMP
CABLE
