Evolution 15cc User Manual

EN
5
High-Speed
Needle
Muffler
Spark Plug
Muffler Nipple
Fuel Nipple

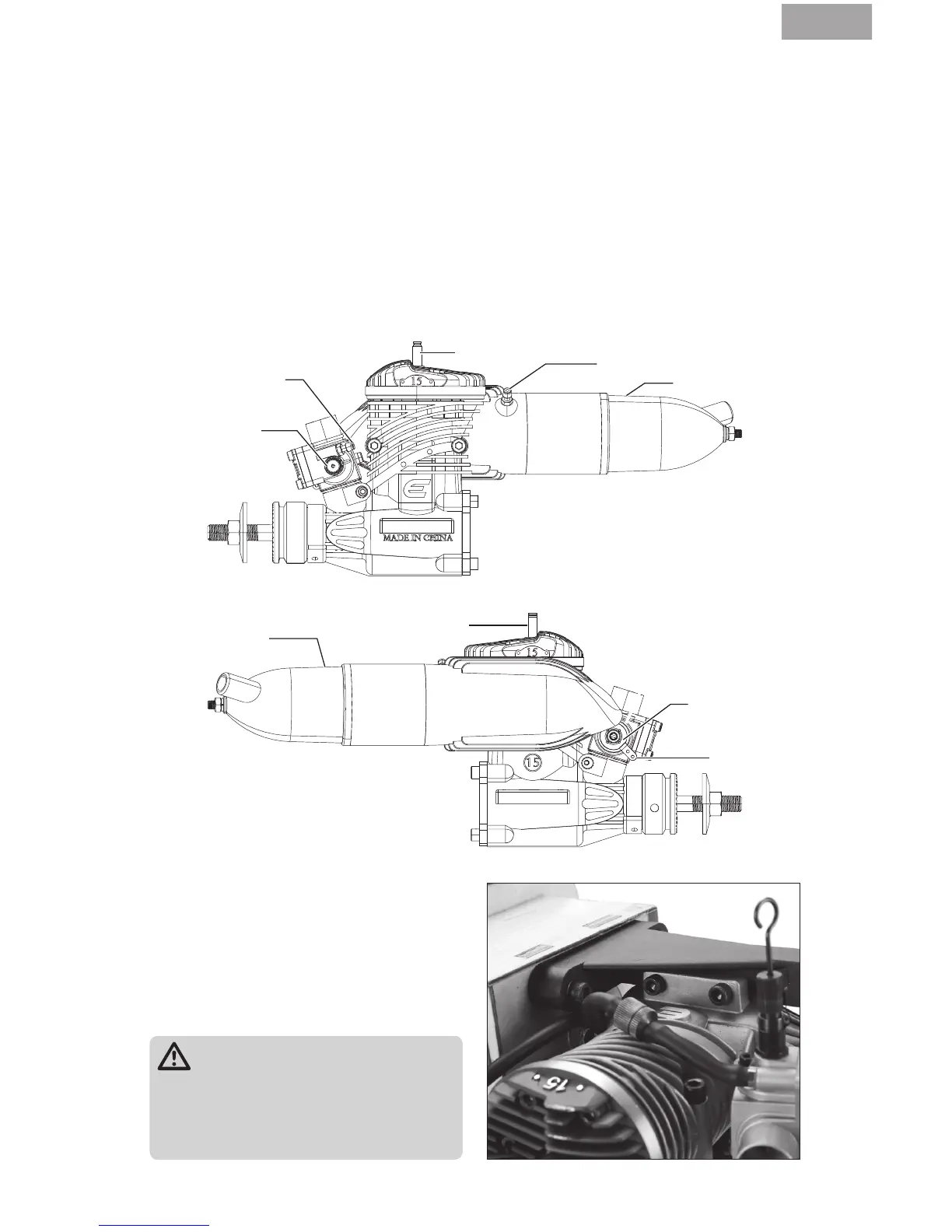

Installing the Engine
1. Secure the engine mount on the airplane
firewall. Tighten the engine mount screws
in the firewall.
2. Install the engine on the engine mount
according to the airplane manufacturer’s
instructions.
WARNING: Tighten all engine
mounting screws before each flight. If
you do not tighten the engine
mounting screws, the screws may
vibrate loose and cause the engine to
separate from the fuselage.
Low-Speed
Needle
Muffler
Spark Plug
Throttle
Arm
Included Content
ENGINE
• Mufer (EVOG15601)
• Mufer Screws & Gasket (EVO9191A)
• Spark Plug (EVOG10350)
• Evolution/Spektrum
™
Telemetry RPM
adapter cable (EVOA107)
• Medium Gas-FKM Fuel Tubing (EVOA104)
• In-Line Fuel Filter (EVOA105)
• In-tank Felt Filter/Clunk (EVOA106)
OPTIONAL ITEMS
• Tachometer (HAN156)
• Propeller 13 x 6 (EVO13060) for break-in;
14 x 6 (EVO14060) for normal ight
• Optical Electronic Ignition Kill Switch
(EVOA100)
• Evolution Synthetic 2-Cycle Oil, (EVOX1001Q)
• Ultra Fuel Pump (HAN155)
