OPERATING INSTRUCTIONS
INSTALLING/REMOVING A DISC
WARNING: Always disconnect the machine from the power
supply before attempting to install or remove a Cutting Disc.
• Ensure that the machines arbor and the blade flanges are
clean and free from dust and debris.
• Ensure that the direction of rotation marked on the blade
matches the direction of rotation marked on the machines
guard.
Note: This machine is supplied with two (2) blade flanges. These
can accommodate blades with either a ø20mm (ø3/4”) or ø22.2
(ø7/8”) arbor hole depending upon how they are installed.

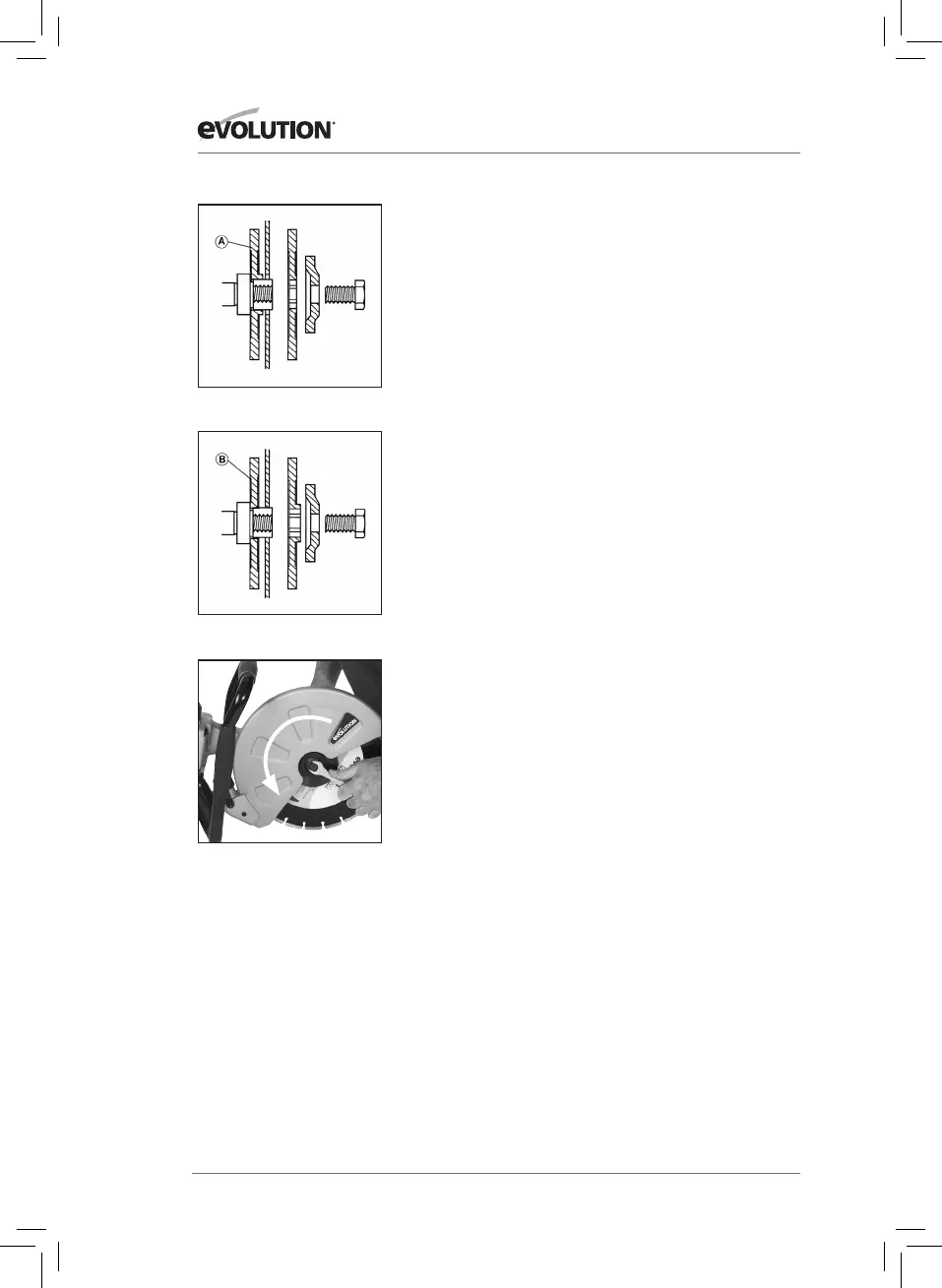

• Install blade flange ‘A’ on the inner side when the arbor hole
in the cutting disc is ø22.2mm (ø7/8”). FIG. 1
• Install the blade flange ‘B’ on the inner side when the arbor
hole in the cutting disc is ø20mm (ø3/4”) FIG. 2
• Install the cutting blade and outer blade flange, washer and
arbor bolt.
• Press the arbor lock to lock the machines arbor.
• Tighten the arbor bolt using the supplied spanner. FIG. 3
• Release the arbor lock and check by hand that the Cutting
Disc is secure and correctly positioned on the arbor and that
if rotates freely.
Note: The arbor bolt has a Left Hand thread. Turn
counterclockwise to tighten the arbor bolt. Turn clockwise to
loosen the arbor bolt.
To remove a Cutting Disc, reverse the above Installation
procedure.
FIG. 1
FIG. 3
FIG. 2
