Filter/Regulator
NOTE
2.6 CFM at 90 psig of Clean/Dry air is required to maintain the life of the solenoid valves and pneumatic actuators. A Filter/Regulator
and Water Separator can be sourced independently or purchased through Neptune Benson. Failure to use these items will void the
warranty of affected parts.
1. Attach the filter/regulator to a wall using anchors compatible with the type of wall construction, Block, plaster, wood,
etc. The anchors are not included.
2. Add an isolation valve before the filter/regulator. Mount the valve on the wall
3. Use iron piping, galvanized piping, or an air hose (not PVC) to connect the compressor to the filter/regulator.
4. Connect the line from the compressor to the filter/regulator.
5. Connect the filter/regulator to the manifold tab.

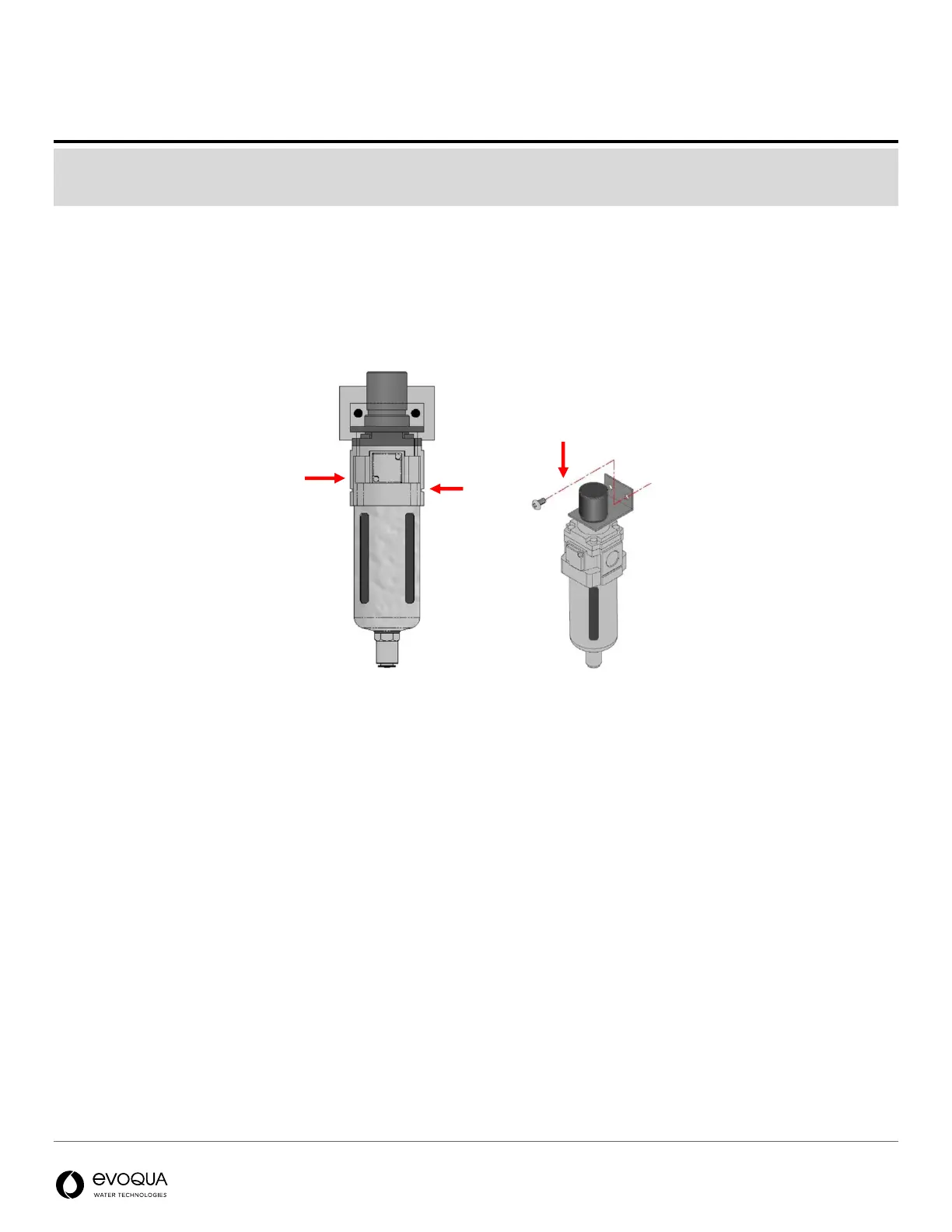

Figure 6: Filter/Regulator/Water Separator Unit
