EWC Controls ULTRA-ZONE ULTRA-TALK UT-3000 - System LEDs and Damper LEDs

©2015GoodmanManufacturingCompany,L.P.

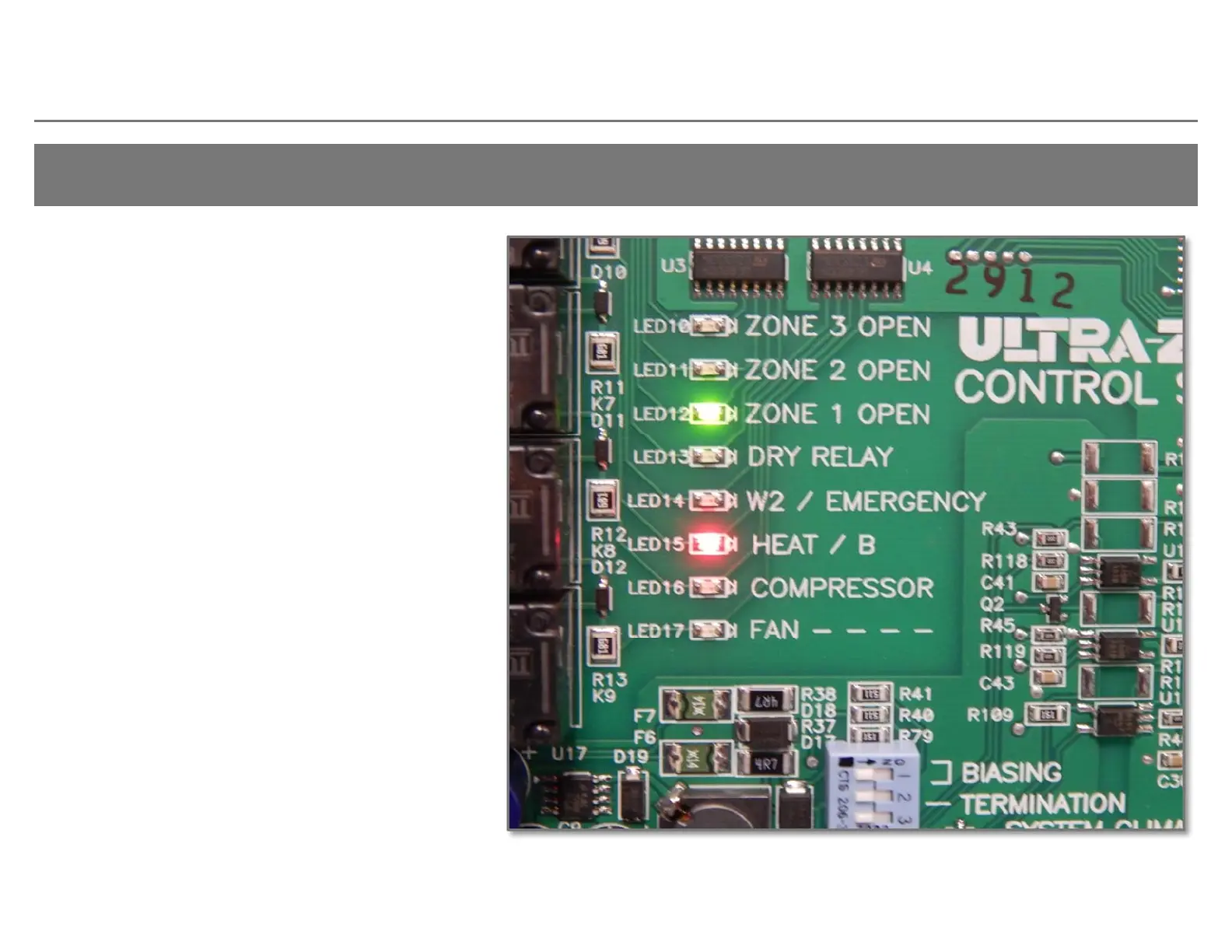

ZoneControlFeatures
 SystemLED’sprovidevisual
indication oftheHVAC
systemstatusandcurrent
modeofoperation.
 Atotalofthree(3)green
damper LED’slabeledzone1
thro ughzone3,indicate
whichdampersare
energizedtoopen.
 Zone1=LED12,Zone2=LED
11,andZone3=LED10.
SystemLED’sandDamperLED’s
