eWON FLX3101 - Front Panel LEDs

Chapter 3
Hardware Description
3.2.2. Part Number Structure for Extension Cards
FLX 3101_00
FL
FL is the prefix for the extensions of
the eWON Flexy family
Only FL (constant)
X
1 alphabetic sign (CAP)
Defines the slots of the base module
in which the extension can be
inserted. See also § 3.6.1 Base Unit
Slot Compatibility.
A 2 first slots only ●●○○
B 2 last slots only ○○●●
X In any slot ●●●●
3101_00 Single Ethernet Extension Card. The suffix _00 is used for software options.

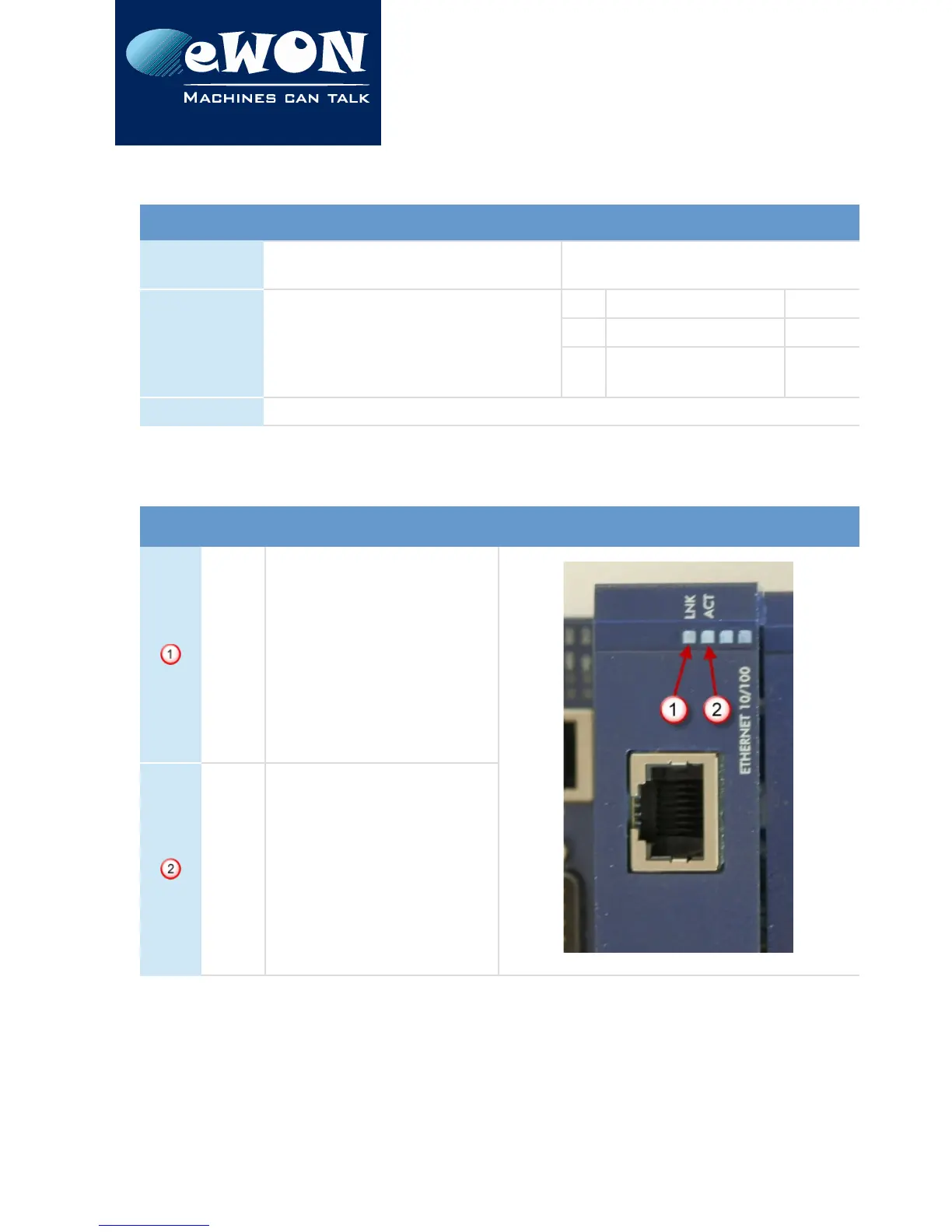

3.3. Front Panel LEDs
Item Mark Function Picture
LNK
ON
Link ETH 10/100 present
+ Speed indication
Green = 100 Mbps
Amber = 10 Mbps
ACT
Flashing Green
Packets transfer activity
Page 8 / 15 eWON Flexy Single Ethernet Ext. Card FLX3101 | IG 017
