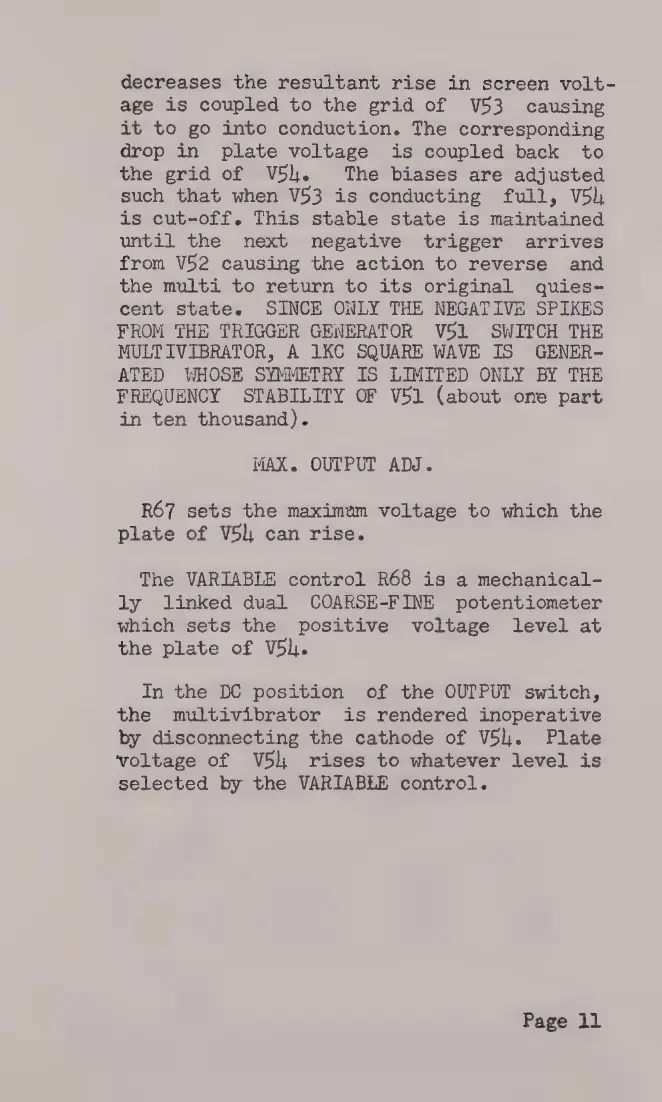

decreases
the
resultant
rise
in
screen
volt-
age
is
coupled
to
the
grid
of
V53
causing
it
to
go
into
conduction.
The
corresponding
drop
in
plate
voltage
is
coupled
back
to
the
grid
of
V5}.
The
biases
are
adjusted
such
that
when
V53
is
conducting
full,
V5)
is
cut-off.
This
stable
state
is
maintained
until
the
next
negative
trigger
arrives
from
V52
causing
the
action
to
reverse
and
the
multi
to
return
to
its
original
quies-
cent
state.
SINCE
ONLY
THE
NEGATIVE
SPIKES
FROM
THE
TRIGGER
GENERATOR
V51
SWITCH
THE
MULTIVIBRATOR,
A
1KC
SQUARE
WAVE
IS
GENER-
ATED
WHOSE
SYMMETRY
IS
LIMITED
ONLY
BY
THE
FREQUENCY
STABILITY
OF
У51
(about
one
part
in
ten
thousand).
MAX.
OUTPUT
ADJ.
R67
sets
the
maximum
voltage
to
which
the
plate
of
V54
can
rise.
The
VARIABLE
control
R68
is
a
mechanical-
ly
linked
dual
COARSE-FINE
potentiometer
which
sets
the
positive
voltage
level
at
the
plate
of
V5h.
In
the
DC
position
of
the
OUTPUT
switch,
the
multivibrator
is
rendered
inoperative
by
disconnecting
the
cathode
of
951.
Plate
voltage
of
V54
rises
to
whatever
level
is
selected
by
the
VARIABLE
control.
