eXact 100 - Basic Principles and Applications

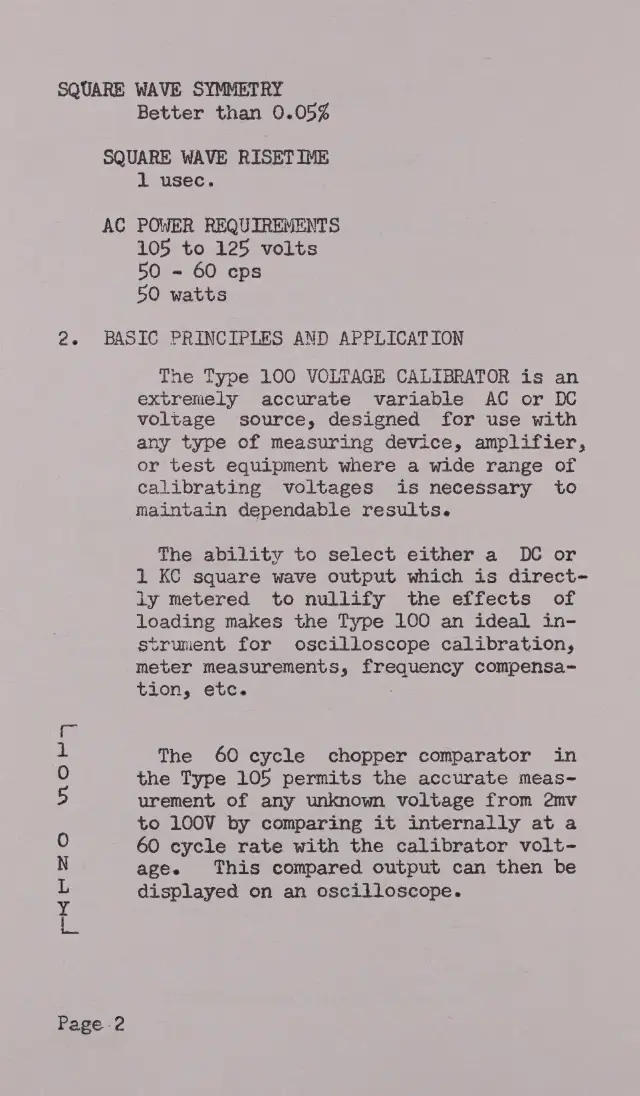

SQUARE WAVE SYMMETRY
Better than 0.05%
SQUARE WAVE RISET IME
AC
1 usec.
POWER REQUIREMENTS
105 to 125 volts
50 - 60 eps
50 watts
2. BASIC PRINCIPLES AND APPLICATION
о NO ЕСУ󰾰 ام
Page 2
The Type 100 VOLTAGE CALIBRATOR is an
extremely accurate variable AC or DC
voltage source, designed for use with
any type of measuring device, amplifier,
or test equipment where a wide range of
calibrating voltages is necessary to
maintain dependable results.
The ability to select either a DC or
1 КС square wave output which is direct-
ly metered to nullify the effects of
loading makes the Type 100 an ideal in-
strunent for oscilloscope calibration,
meter measurements, ea eed compensa-
tion, etc.
The 60 cycle chopper comparator in
the Type 105 permits the accurate meas-
urement of any unknown voltage from 2mv
to 100V by comparing it internally at a
60 cycle rate with the calibrator volt-
age. This compared output can then be
displayed on an oscilloscope.
