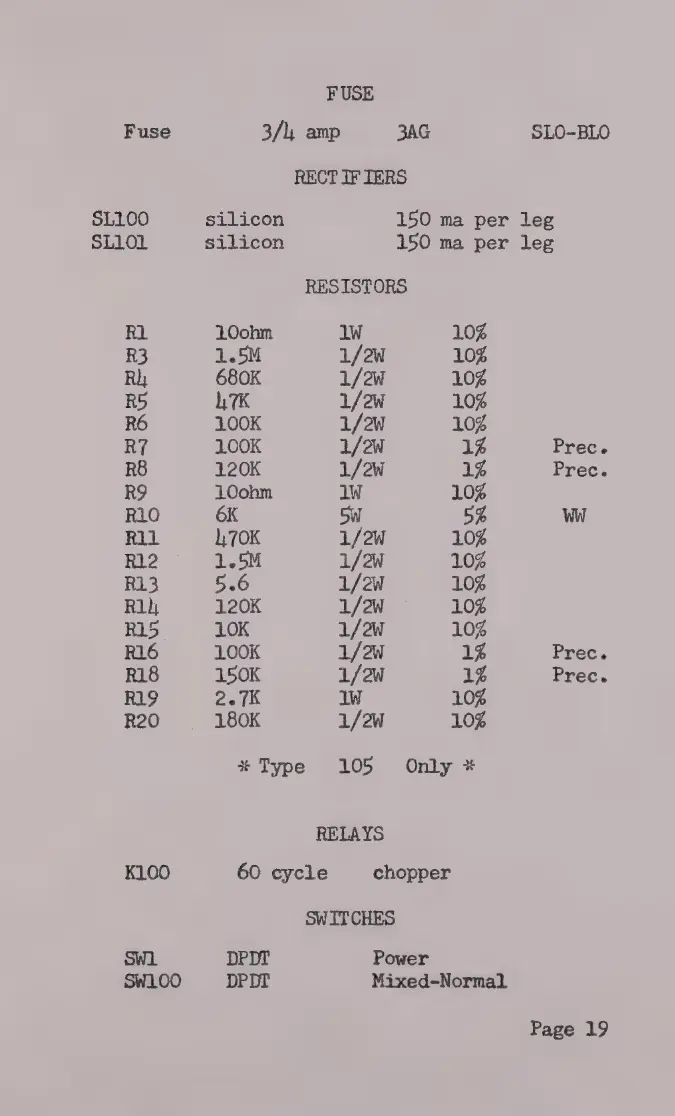

eXact 100 - Page 23

FUSE
Fuse 3/l amp 3AG SLO-BLO
RECT IF IERS
SL100 silicon 150 ma per leg
51101 silicon 150 ma per leg
RESISTORS
Е1 10ohm lw 10%
R3 1.5M 1/2W 10%
Rh 680K 1/2 10%
RS TK 1/2W 10£
R6 100K 1/2W 10%
RT 100K 1/2W 1% Ргес.
R8 120K 1/2W 1% Ргес.
R9 10ohm 1W 10%
R10 6K 54 5% WW
R11 L 70K 1/2W 10%
R12 1.5M 1/2W 10%
R13 5.6 1/29 10%
RI} 120K 1/2W 10%
R15 10K 1/2W 10%
R16 100K 1/2W 1% Ргес.
R18 150K 1/2W 1% Ргес.
R19 2.7K 1W 10%
R20 180K 1/2W 10%
* Туре 105 Only *
RELAYS
K100 60 cycle chopper
SWITCHES
SW1 DPDT Power
SW100 DPDT Mixed-Normal
