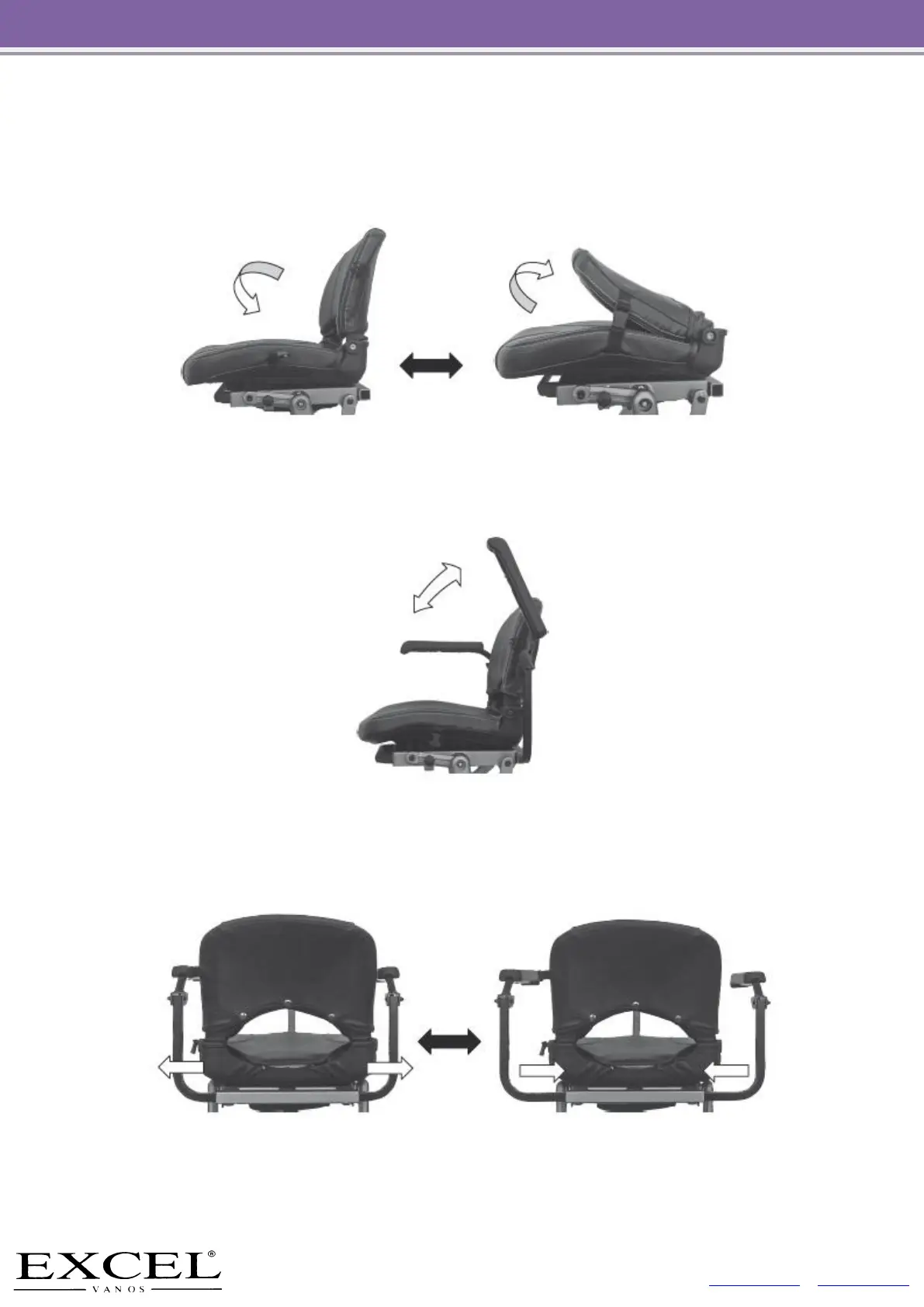

6. Seat
6.1. Backrest angle
Backrest folds forward for ease of folding / storage.
6.2. Armrest angle
Flip the armrest up to expose the adjustable bolt .
Turn the bolt in to lower the angle of the armrest to your desire angle.
6.3. Armrest width
Locate the width socket set screw (follow the armrest support down to the base of the seat).
Then loosen the socket set screw by turning counter-clockwise. Pull the armrest in or out to reach
your desired position. Tighten the width socket set screw.
