EXCURSION HXA20 - Page 13

12
WIRING DIAGRAM

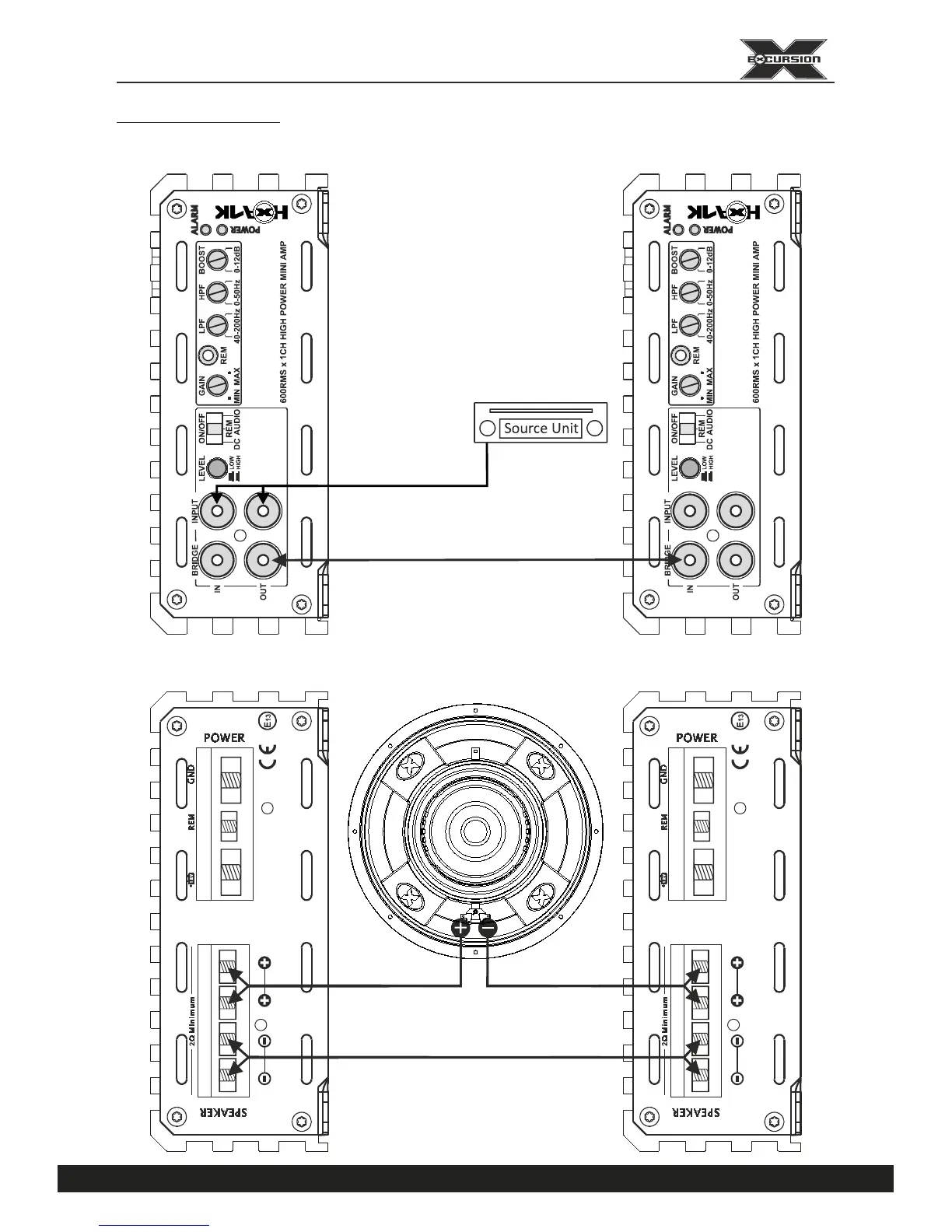

Fig 5. HXA 1K / HXA 2K / HXA 3K / HXA 4K / HXA 5K wiring
( 2 Amplifier BRIDGE Mode - SIGNAL and SPEAKER )
RCA LOW LEVEL signals or
SPEAKER HIGH LEVEL via
optional (XML) RCA Adapter
MASTER SLAVE
4Ohm Min Load : HXA1K
2Ohm Min Load : HXA 2K/3K/4K
1Ohm Min Load : HXA 5K
