90RMS x 4CH HIGH POWER MINI CAR AMP

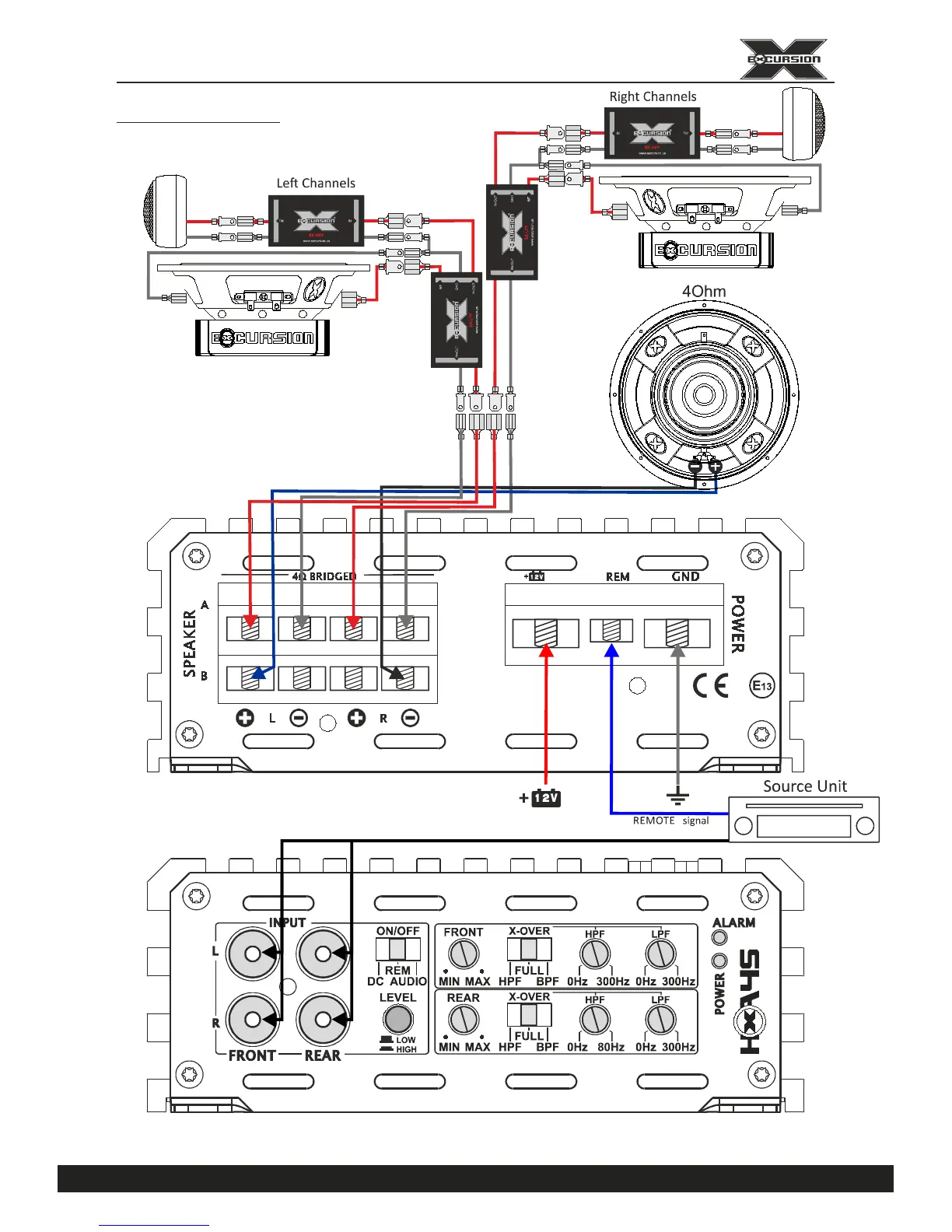

WIRING DIAGRAM
Fig 2. HXA 45 / HXA 65 / HXA 85 wiring
( 3 Channel Mode)
RCA LOW LEVEL or SPEAKER HIGH LEVEL signals via optional XML Adapter
