EXCURSION HXA2K - Wiring Diagrams; HXA 45; HXA 65; HXA 85 Wiring (4 Channel Mode)

7
EXCURSION
90RMS x 4CH HIGH POWER MINI CAR AMP
WIRING DIAGRAM

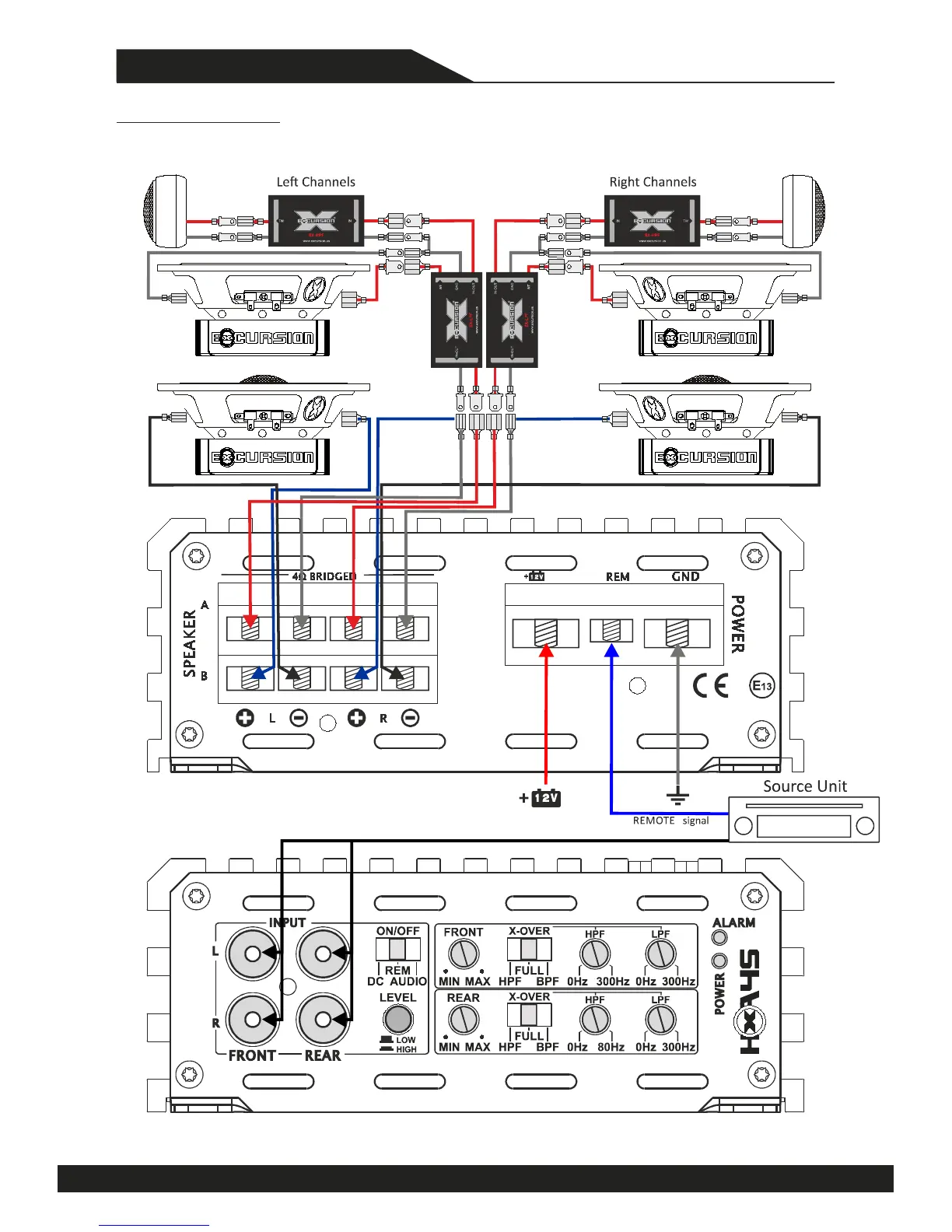

Fig 1. HXA 45 / HXA 65 / HXA 85 wiring
( 4 Channel Mode)
RCA LOW LEVEL or SPEAKER HIGH LEVEL signals via optional XML Adapter
