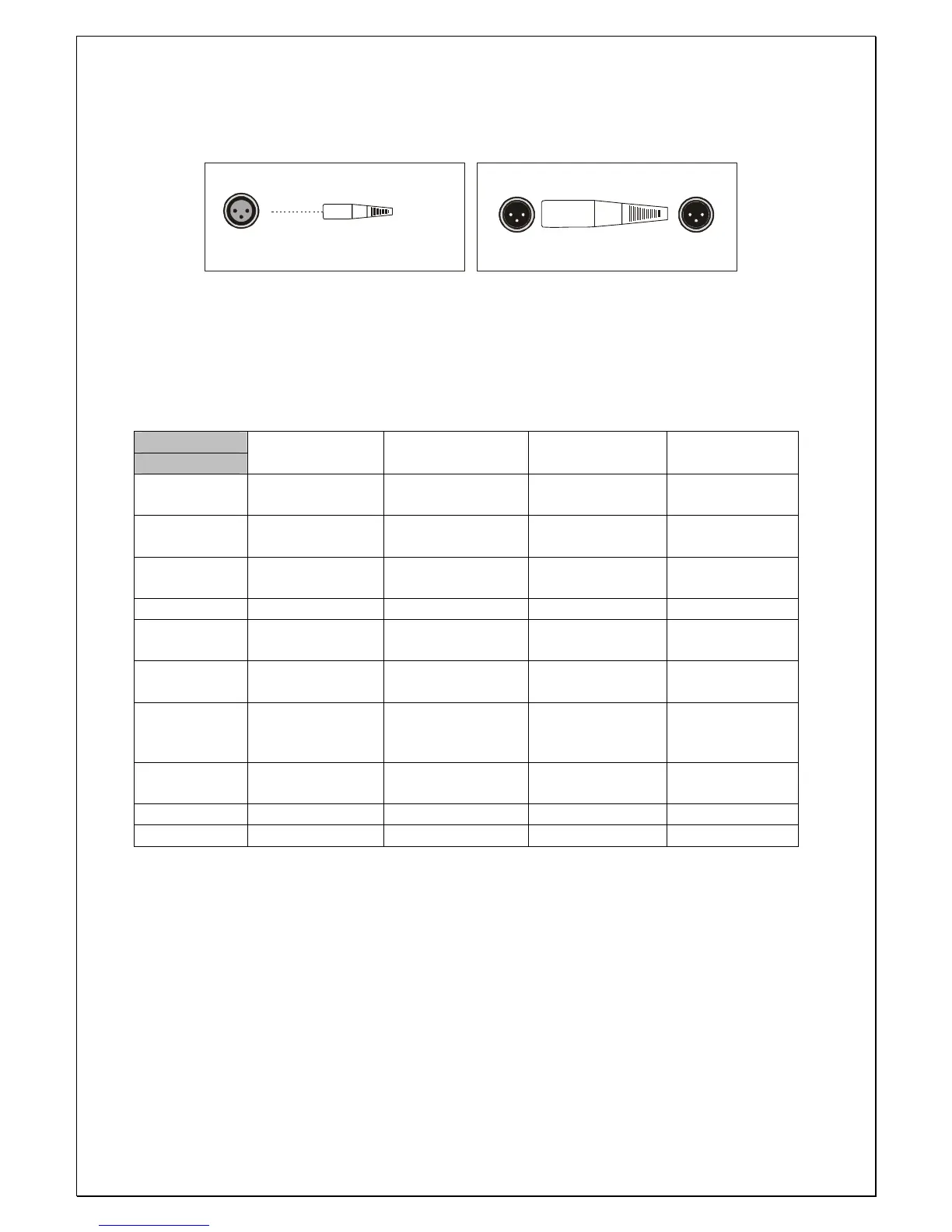

CONNECTIONS
Connection side
1. Masse(Shield) 2. Phase + (Hot) 3. Phase - (Cold)
Wirings side
XLR/OUT
1
3
2
2
3
1
XLR-F
1=SHIELD
2=HOT
3=COLD
1
3
2
XLR/IN
EX-200A , EX-250A, EX-300A, et EX B 600A
TECHNICAL SPECIFICATIONS
Model
Specifications
EX 200 A EX 250 A EX 300 A EX B 600 A
Frequency
range (-10dB)
60Hz-18KHz 45Hz-18KHz 50 Hz-18KHz 40 Hz-125Hz
Power
capacity
200 W 250 W 300 W 600 W
Nominal
impedance
8 ohms 8 ohms 8 ohms 8 ohms
Sensitivity 95 dB 96 dB 97dB 97 dB
Nominal
dispersion
90 °H x 60 ° V 90 °H x 60 ° V 90 °H x 60 ° V
Crossover
frequency
2,5 KHz 2,5 KHz 2,5 KHz
Maximum SPL 120 dB 121 dB 122 dB 126 dB
Input
connectors
XLR XLR XLR XLR
Dimensions 530 x 310 x 345
630 x 330 x 410 720 x 365x495 640x480x500
Net weight 18,5 Kg 23,5 Kg 28,5 Kg 35 Kg
