Exerpeutic 4100 - Step 3: Seat Assembly

Step 3

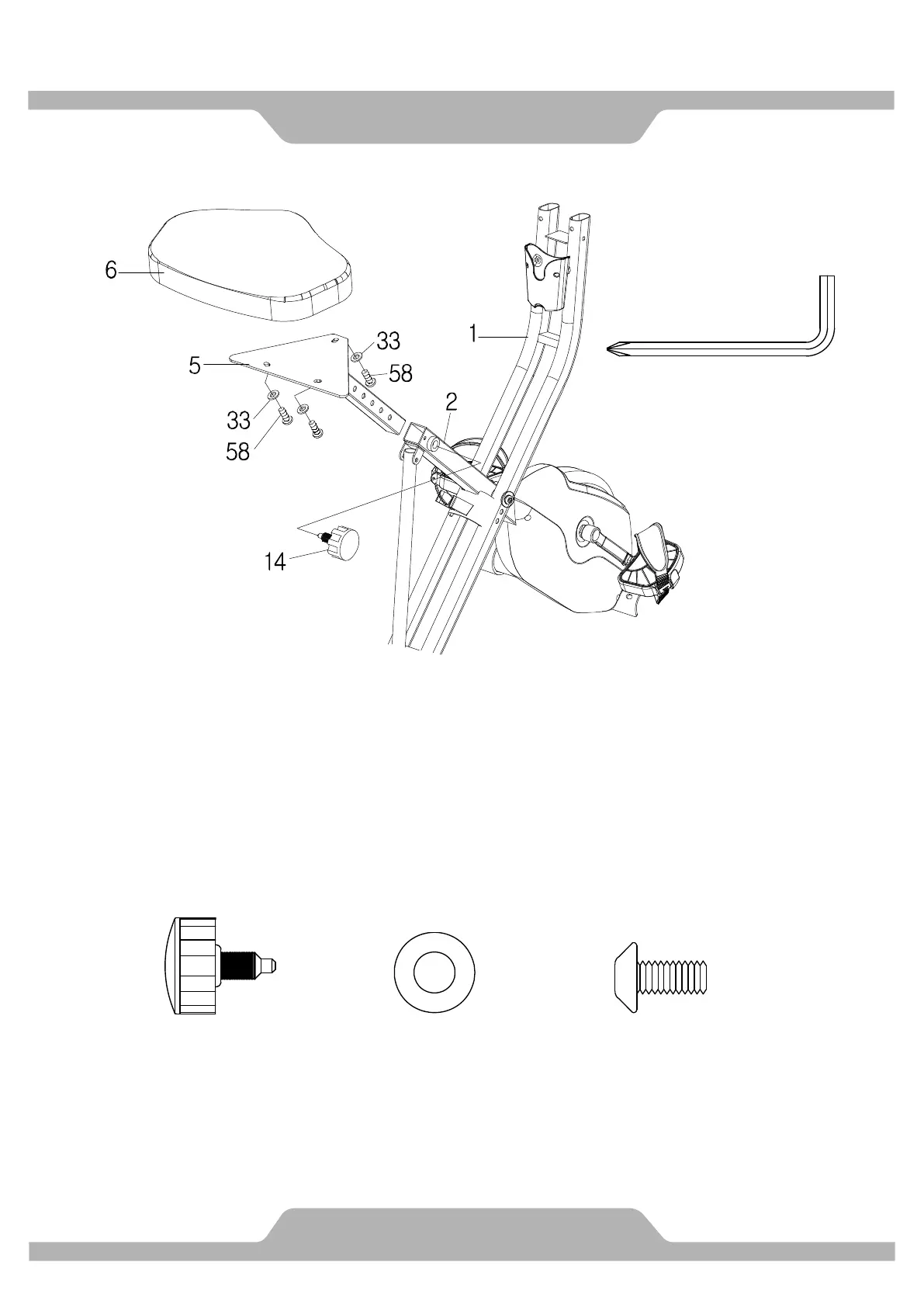

Align Seat Cushion (6) with bolt holes on Seat Post (5). Insert Flat Washers (33)
and Hexagon Socket Bolts (58) into bolt holes. Use Allen Wrench 5mm to
tighten the bolts.
Insert Seat Post (5) into Rear Frame (2), tighten Seat Height Adjustment Knob
(14) at desired height.
Hardware:
ASSEMBLY
11
(14) Seat Height
Adjustment Knob
1 PC
(33) Flat Washer
Ø8.2xØ16.8
3PCS
(58) Hexagon Socket Bolt
M8x15 3PCS
3 PCS
5mm Allen Wrench with
Phillips Screwdriver
1PC
Tool:
