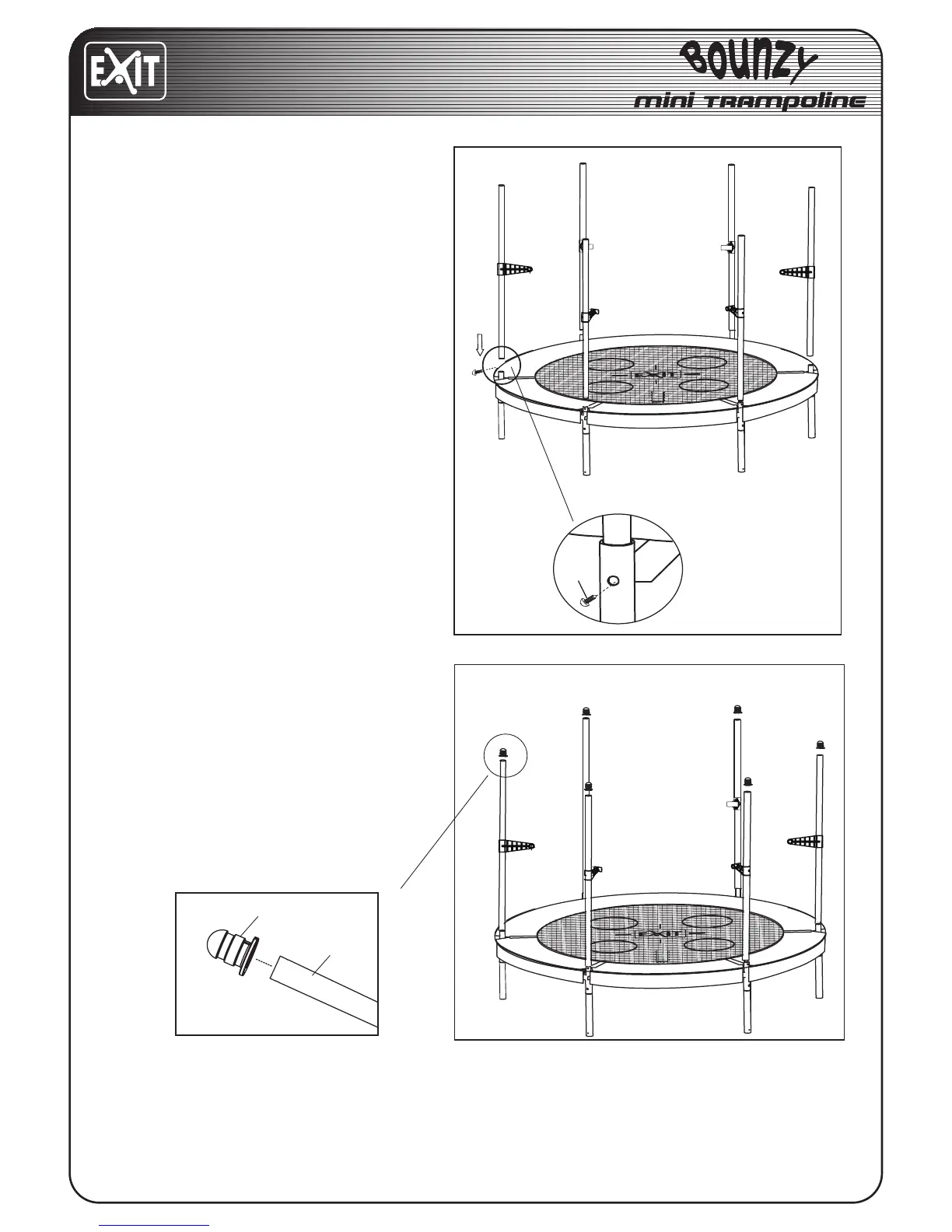

STEP 6
Insert the straight tube (7) into the frame
(1). Make sure the holes on the straight
tube (7) and on the frame (1) are aligned.
Then tighten with one self-tapping screw
(12) using a tool.
Repeat this step to assemble the remaining
straight tubes.
STEP 7
Put the pole cap (13) on the top of the
straight tube (7).
6
Lay the Pad(5) on the Frame. Adjust
Slide the Upper Tube() and Straight
STEP 6
Lay one Straight Tube() with Foam
and one Upper Tube() with Foam on
the ground. Insert the Straight
Tube(0) into the Upper Tube(0).
Secure with a Screw M().
Repeat this step to attach the five
remaining Straight Tube() and Upper
Tube(0) together (not shown).
To Next Page
