3.2.11 Hook the gate assembly (item16) to the gate linkage assembly (item 12). Install the

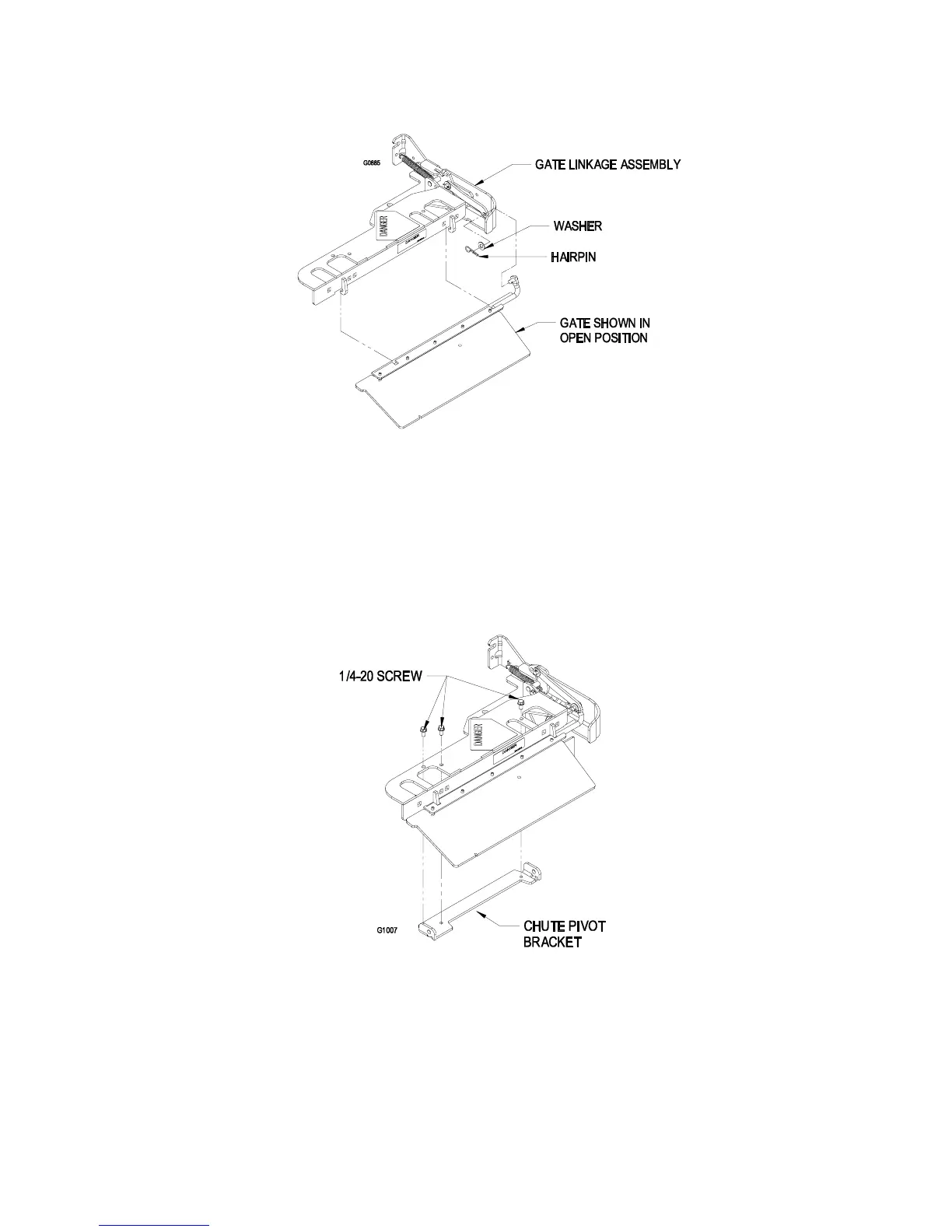

washer (item15) and fasten with the hairpin (item 14) as shown in Figure 10.
FIGURE 10
3.2.12 Mount the gate linkage assembly to the deck.
NOTE: The gate is easier to retain on the link assembly if rotated to the “open” position
when installing on the deck.
For UltraCut deck:
a) Install three 1/4-20 self-tapping screws (item 11) into the chute pivot bracket
(item 19) as shown in Figure 11A.
FIGURE 11A
b) Locate the correct mounting hole as shown in Figure 11B. Drill holes in deck as
shown in Figure 11C. Install the two 5/16-18 x 1 bolts (item 13) and fasten to the
deck with washer (item 6) and nyloc nut (item 2). Install 5/16-18 x 3/4 bolt
(item 18) from the bottom of the deck, and draw up into hole using the whizlock
nut (item 7).
