Exmark OCD01 User Manual

4
3. ASSEMBLY INSTRUCTIONS
IMPORTANT: Disengage blade, shut off engine, wait for all moving parts to stop,
engage parking brake, remove key, and disconnect the wire from the spark plug
before servicing, cleaning, or making any adjustments to the unit.

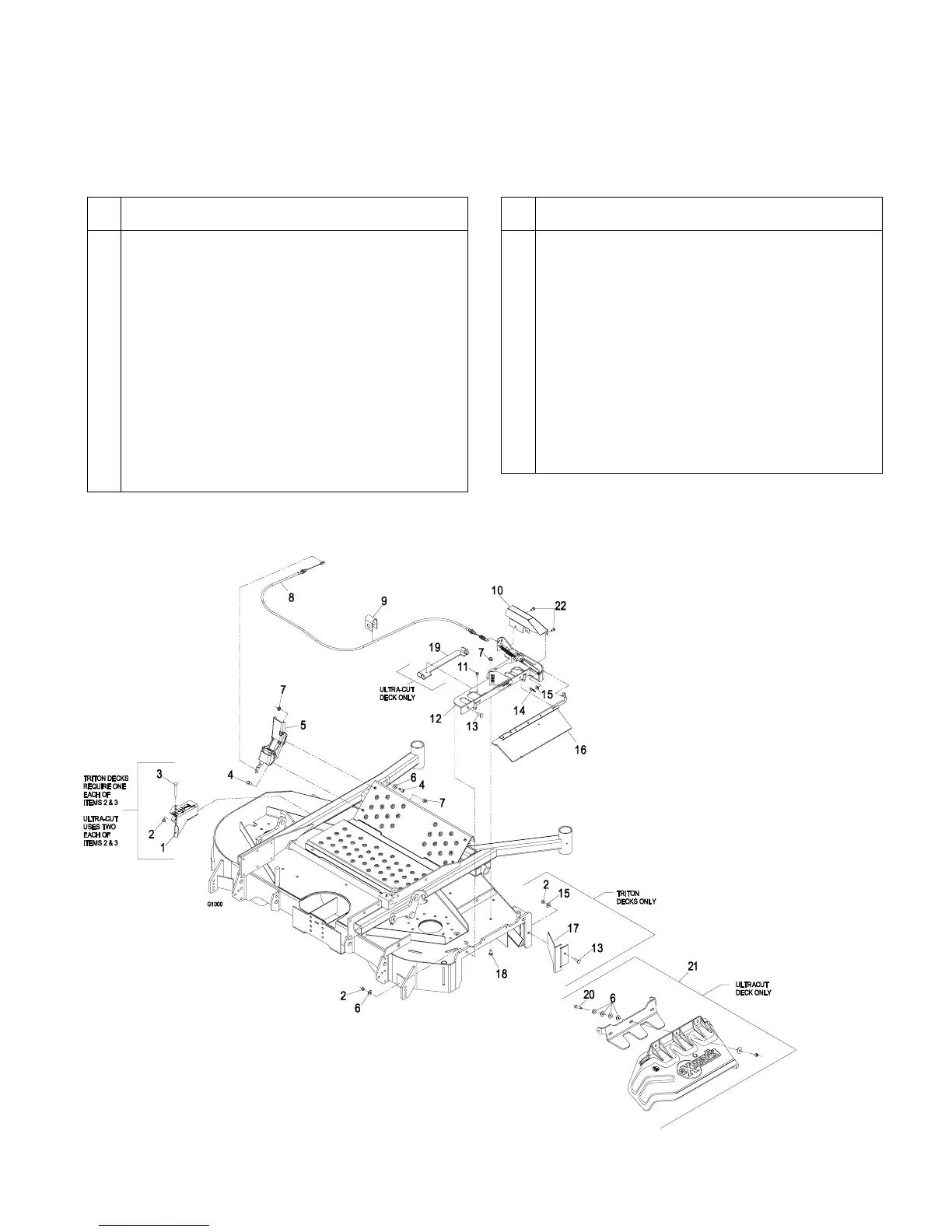

3.1 ASSEMBLY DIAGRAM
Item Part No. Description Qty.
1 109-3880 Asm, Cable Bracket w/Decal ................... 1
2 3296-29 Nut, Nyloc 5/16-18................................... 4
3 3230-9 Bolt, Carriage 5/16-18 x 2 3/4 (Triton)...... 1
3230-9 Bolt, Carriage 5/16-18 x 2 3/4 (UltraCut).. 2
4 322-3 Screw, HH 5/16-18 x 3/4.......................... 2
5 109-3884 Pedal, Foot .............................................. 1
6 3256-3 Washer, 5/16 Std (Triton)......................... 3
3256-3 Washer, 5/16 Std (UltraCut)..................... 7
7 32128-20 Nut, Whizlock 5/16-18.............................. 3
8 109-3606 Asm, Cable 60”-72”.................................. 1
109-3882 Asm, Cable 46”-56”.................................. 1
9 109-4101 Strap, Cable Hanger ................................ 1
10 109-4097-01 Cover, Gate Linkage................................ 1
11 9266714 Screw, HWH 1/4-20 x .50 TF (UltraCut)... 3
Item Part No. Description Qty.
12 109-3603 Asm, Gate Linkage w/Decals................... 1
13 3230-2 Bolt, Carriage 5/16-18 x 1 (Triton)............ 3
3230-2 Bolt, Carriage 5/16-18 x 1 (UltraCut) ........ 2
14 1-806003 Pin, Hair................................................... 1
15 3256-23 Washer, 5/16 SAE (Triton)....................... 2
3256-23 Washer, 5/16 SAE (UltraCut)................... 1
16 109-3605 Asm, Gate................................................ 1
17 109-4089-01 Plate, Blocker (Triton) .............................. 1
18 3230-1 Bolt, Carriage 5/16-18 x 3/4 ..................... 1
19 109-3881-01 Bracket, Chute Pivot (UltraCut)................ 1
20 322-6 Screw, HH 5/16-18 x 1 1/4 (UltraCut)....... 1
21 109-3860 Kit, Flexible Discharge Chute (Ultra Cut).. 1
22 9266934 Screw, HWH 5/16 x 1/2 TF ...................... 2
 Used for Triton (series 5) decks 60”, 66”, & 72” (long cable).
 Used for Triton (series 5) decks 46”, 50”, & 56” and UltraCut (series 4) decks 52” & 60” (short cable).
 For serial numbers 669,999 and lower. Not included – needs to be purchased separately.
FIGURE 1
