10

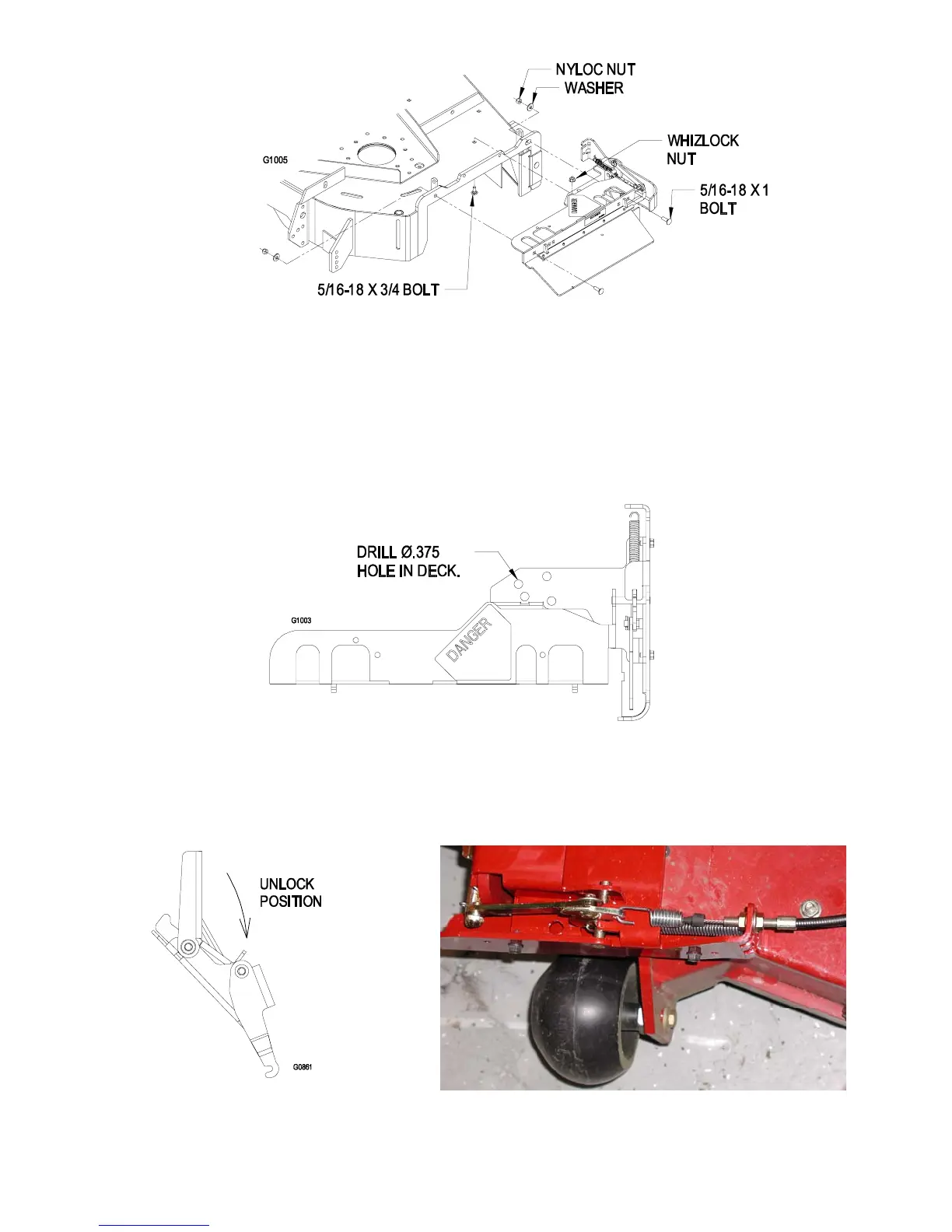

FIGURE 11E
For 66” & 72” Triton decks:
a) Install two 5/16-18 x 1 bolts (item 13) and fasten to the deck with washer (item 6)
and nyloc nut (item 2) as shown in Figure 11E. Drill Ø.375 hole in the deck to
mate up with the gate linkage assembly (item 12) where shown in Figure 11F.
The drilled hole location will avoid under deck baffles on the deck. Install 5/16-
18 x 3/4 bolt (item 18) from the bottom of the deck, and draw up into hole using
the whizlock nut (item 7).
FIGURE 11F
3.2.13 With foot pedal in unlocked position (see Figure 12), attach the cable onto the blocker
pivot plate assembly. Attach cable and adjust mounting nuts to the center of the
threaded portion of the cable as shown in Figure 13.
FIGURE 12 FIGURE 13
