CheckingTirePressure
Checkthetirepressureinthedriveandcastertires.
Properinationfordrivetiresis13psi(90kPa).
Properinationforthecastertiresis13psi(90kPa).
Adjustifnecessary.
InstallingtheRearHitch

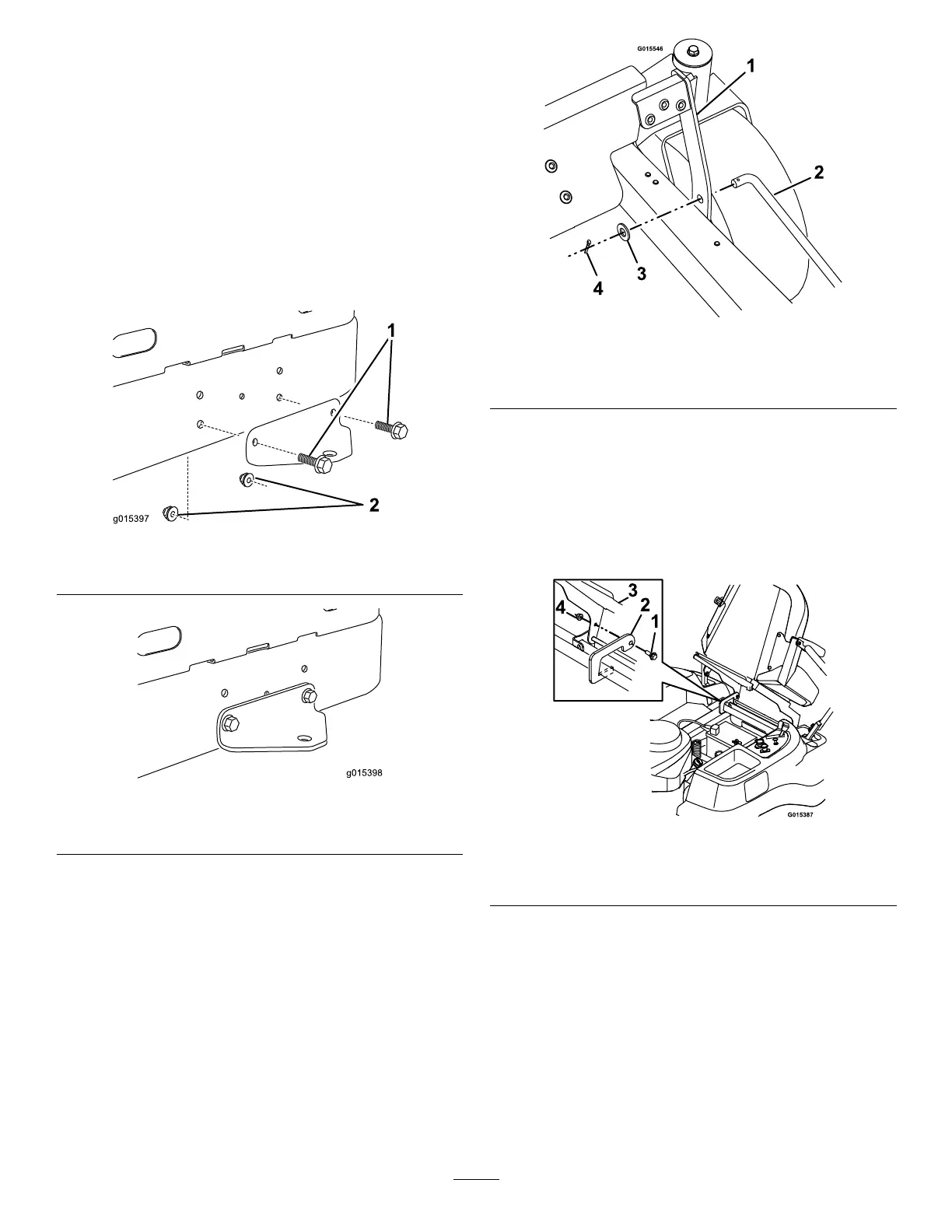

InstallthebrackettotheframeasshowninFigure1and
Figure2.
g015397
1
2
Figure1
1.5/16-18x1inchscrew2.5/16inchnylocnut
Figure2
Afterassembly
ConnectingFootPedal—
50InchUnitOnly
1.Removethewasherandcotterpinfromthedealer
literaturepack.
2.Rotatethefootpedalforward.
3.Inserttherodintothefootpedalhole,installwasher,
andsecurewiththecotterpin(see
Figure3).
Figure3
1.Footpedal3.Washer
2.Rod
4.Cotterpin
ConnectingtheSeatStop
1.Removetheseatstopplateandhardwarefromthe
dealerliteraturepack.
2.Routetheseatstopplateoverthefrontrailofthe
seatsupportasshowninFigure4.
Figure4
1.Shoulderscrew3.Seat
2.Seatstopplate
4.Flangednut
3.Installtheseatstopplatetotheseatframeand
secureitwith5/16-18x.96inchscrewand5/16
inchnylocnut.
2
