ExpressWeld MasterMIG 500W - Back Panel Controls

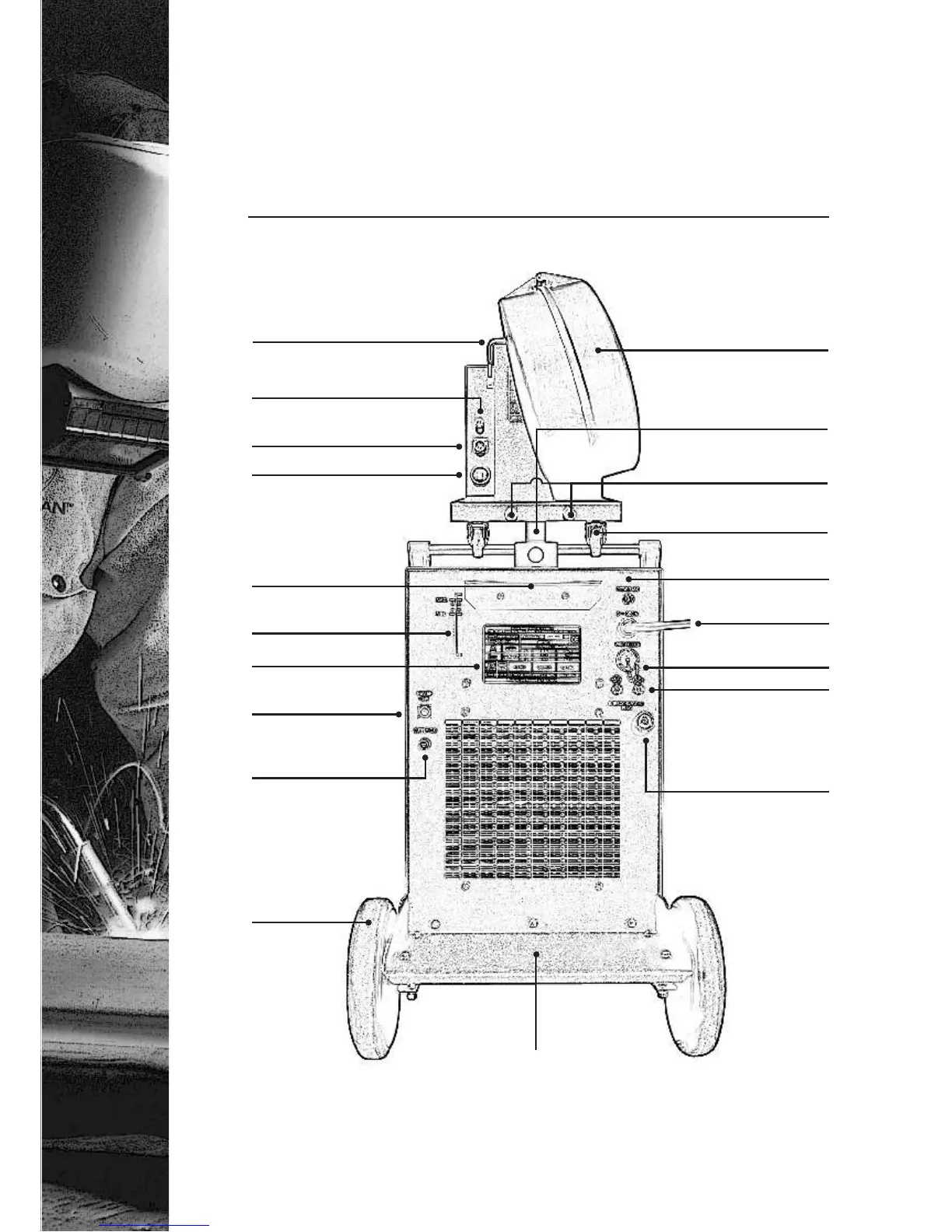

6 Back Panel Controls
Page 19
Expressweld MasterMIG 500W
Shielding gas heater
connection socket
Coolant level
indicator
Wire feeder
fuse (3A)
Wire feeder unit
rear wheels
Welding wire reel
protection cabinet
Rack for placing shielding
gas cylinder
rear wheel
Coolant connection
socket
Wire feeder unit (+)
power connection socket
Control cable
connection socket
Pin for placing wire
feeder unit to
power unit
Wire feeder unit handle
Shielding gas inlet socket
Control cable connection socket
Wire feeder unit (+) power
connection socket
Shielding gas (C02)
heater fuse (8A)
Mains inlet
energy cable
Specification plate
Shielding gas
cylinder fixing slot
Coolant inlet and
outlet sockets
