Exsys EX-1309-T - Terminal Block Pinout

14
English EX-1309-T

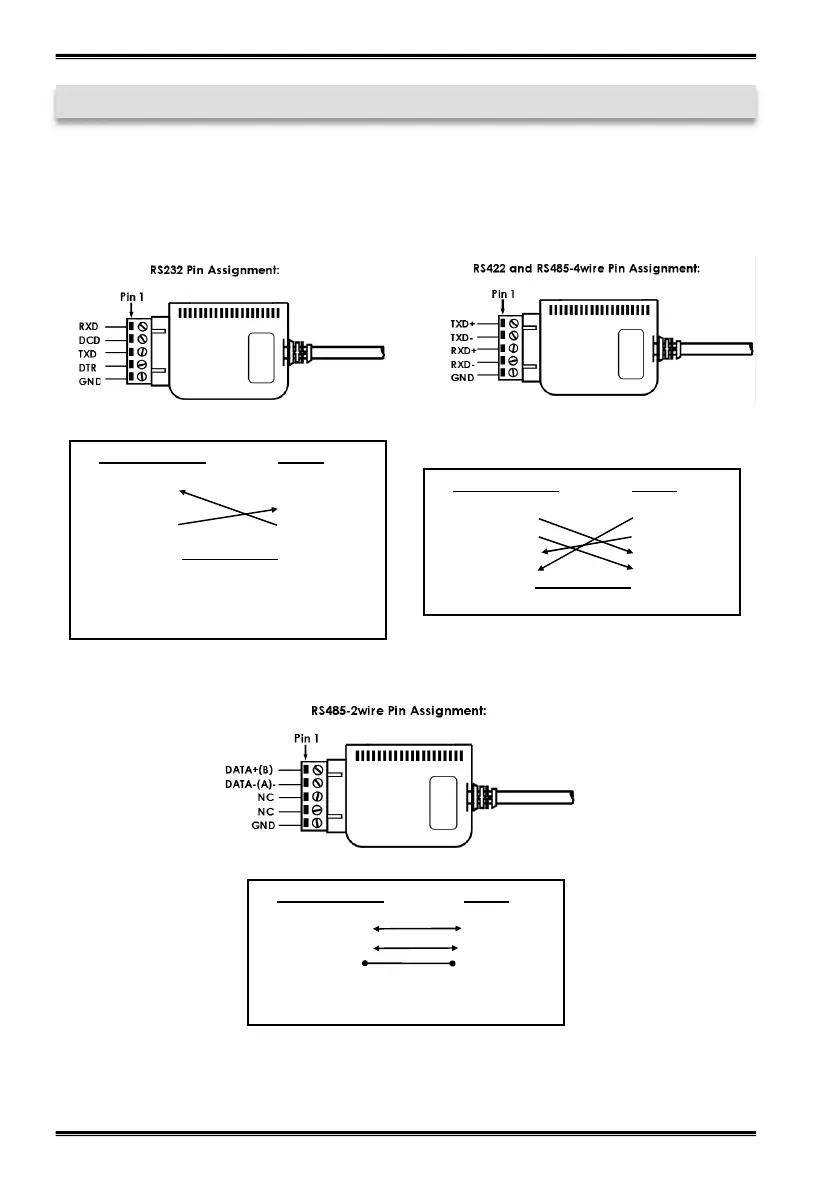

3. Layout and Connections
3.2 Connections
5 Pin Terminal Block:
TB5 (EX-1309-T) Device
1 RXD 1 DCD
2 DCD 2 RXD
3 TXD 3 TXD
4 DTR 4 DTR
5 GND 5 GND
6 DSR
7 RTS
8 CTS
TB5 (EX-1309-T) Device
1 TXD+ 1 TXD-
2 TXD- 2 TXD+
3 RXD+ 3 RXD+
4 RXD- 4 RXD-
5 GND 5 GND
TB5 (EX-1309-T) Device
1 DATA+ 1 DATA+
2 DATA- 2 DATA-
5 GND 5 GND
