SLIDE NUT

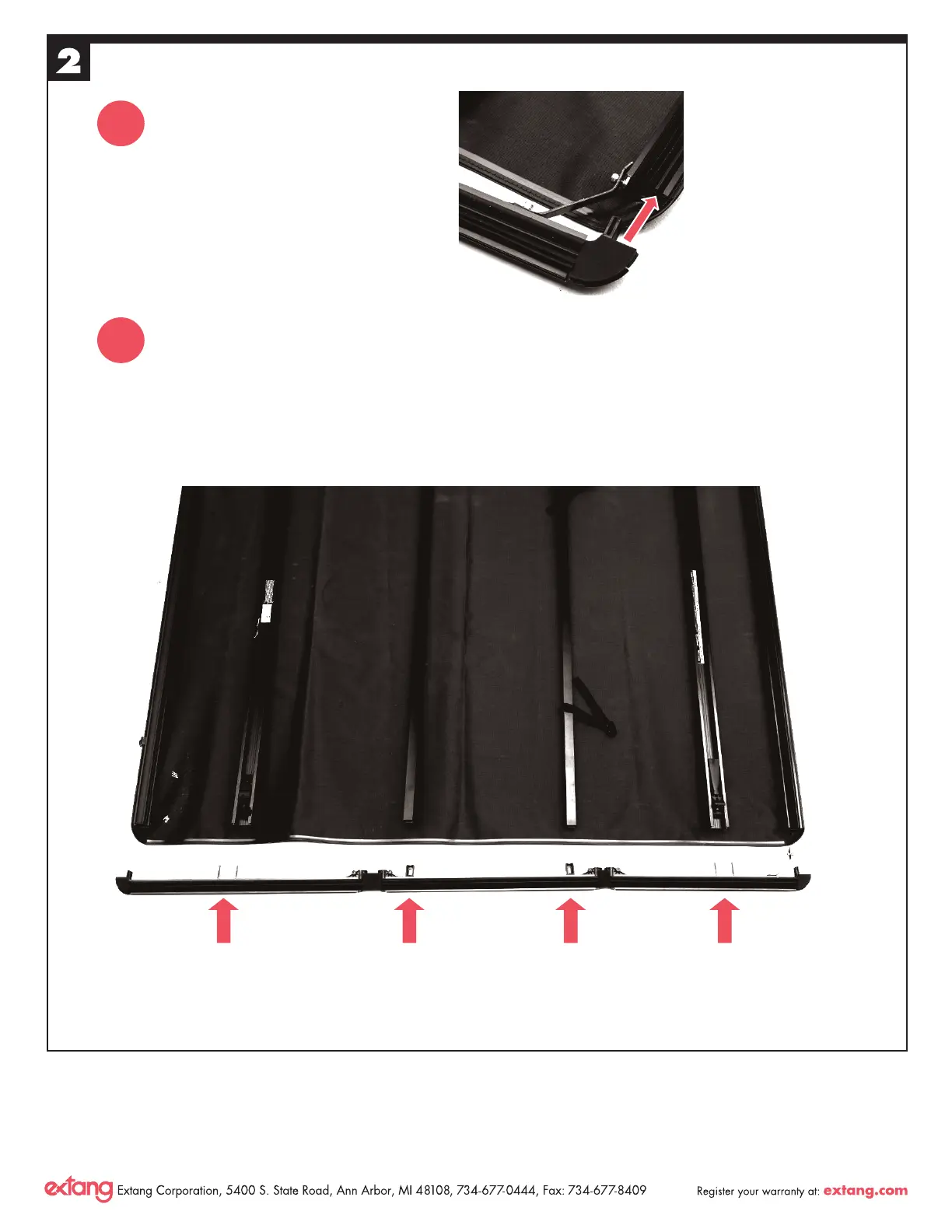

Install the side rail assemblies.
Beginning at the rear corner insert the slide nut
into the c-channel portion of the tail rail,
followed by the rear corner.
Secure the cap screw with the 3/16” hex wrench.
4
Tarp Install
Insert the bows in the following order:
A. Rear (tailgate) bow (with tail clamps) into the u-shaped brackets.
B. Insert the bow (with the straps attached) into the plastic post bracket.
C. Insert the next bow (4 bow systems only) in the same manner as the previous bow (B).
D. The front (cab) bow is installed into the u-shaped brackets like the Rear (tailgate) installation.
5
Note: The cover may seem loose at this point. The tarp tension will increase when the sides are attached.
ABCD
