Model 380942 Version 2.0 July 2006
3

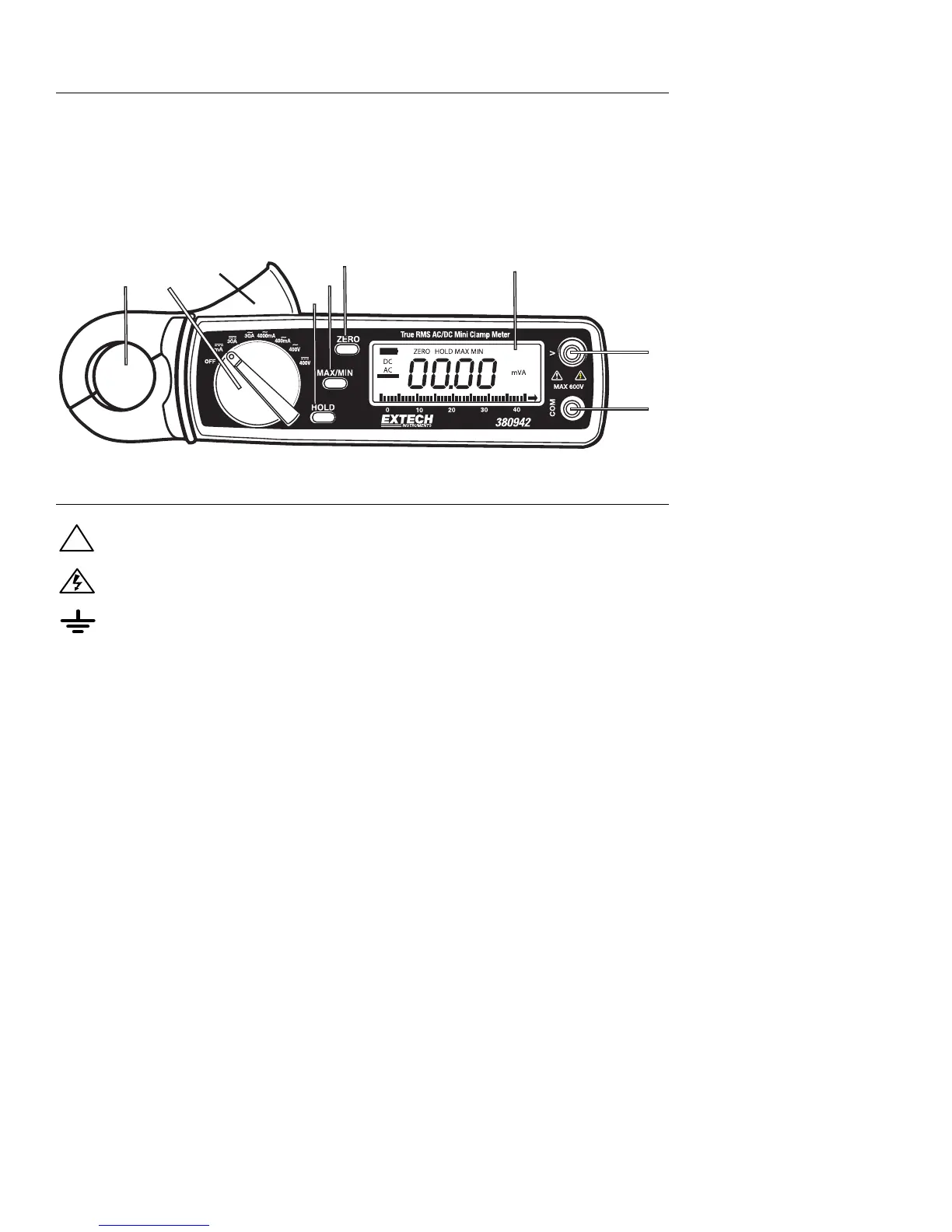

Meter Description
1. Current sense jaw
2. Measurement Trigger
3. Function switch
4. Data HOLD key
5. MAX / MIN key
6. One-touch DCA ZERO key
7. LCD Display
8. Positive input terminal for Voltage
9. COM terminal
1
2
3
4
5
6
7
8
9
Safety Symbols and Information
!
Caution ! Refer to the explanation in this Manual
Caution ! Risk of electric shock
Earth (Ground)
This meter has been designed to be safe in use, but the operator must use caution in its
operation. The rules listed below should be carefully followed for safe operation.
1. NEVER apply voltage or current to the meter that exceeds the specified maximum:
2. USE EXTREME CAUTION when working with high voltages.
3. DO NOT measure voltage if the voltage on the "COM" input jack exceeds 600V above
earth ground.
4. ALWAYS turn off the power and disconnect the test leads before opening the back to
replace the fuse or batteries.
5. NEVER operate the meter unless the back cover and the battery/fuse door are in place
and fastened securely.
