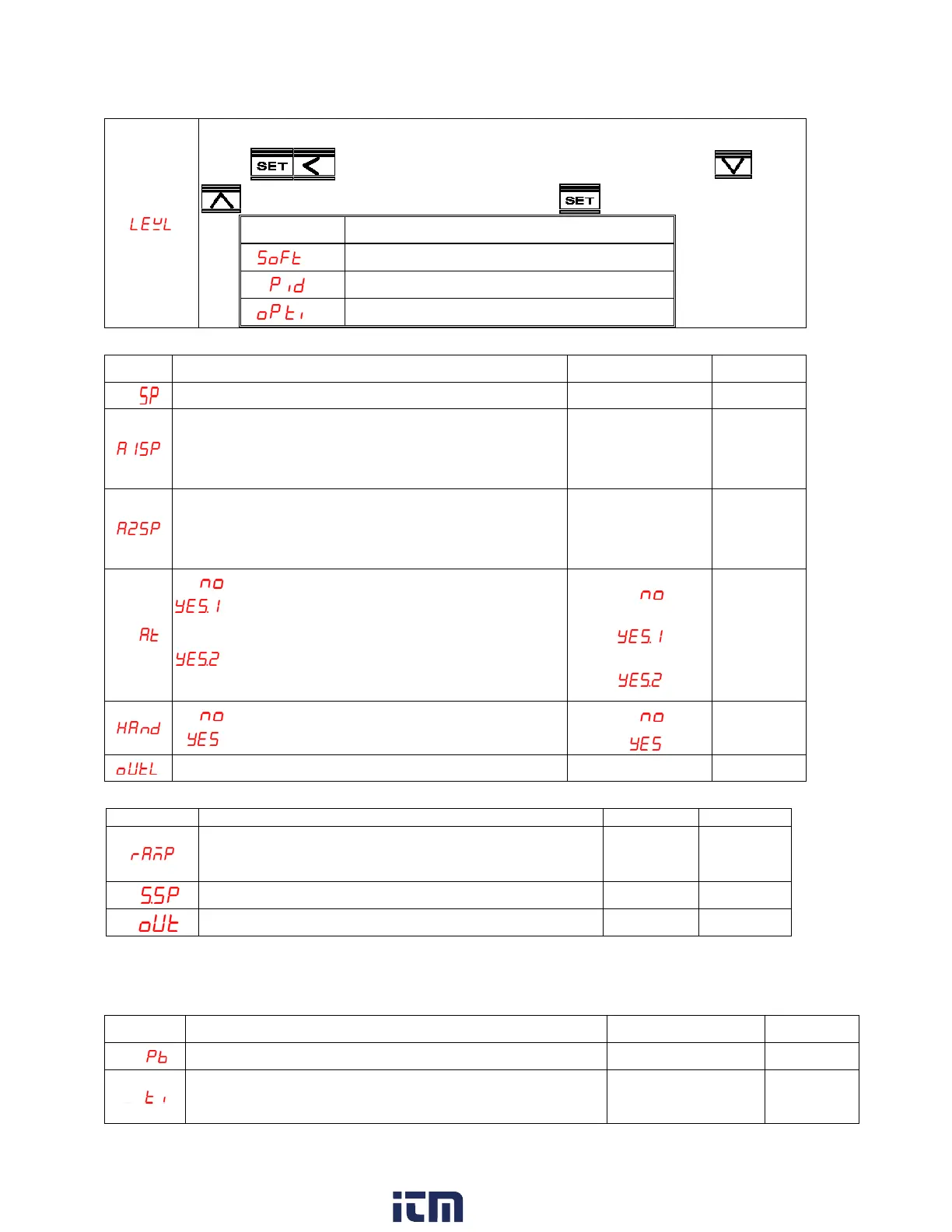

■PARAMETER DESCRIPTION：
LEVEL Selection
Press
keys for at least 5 seconds to access Soft Level. Use or
key to select programming level. Then press key to enter this level.
LEVEL
Description
SoFt Level
PID Level
Option Level
USER LEVEL
CODE DESCRIPTION RANGE Default
Set point value of control
LoLt － HiLt
500
Alarm 1 set point value
/
Timer set value while A1FU is set to
T.on or T. off, the unit can be HH.MM or MM.SS. It depends on
the “P.tnE” parameter.
-1999 － 9999/
00.00~99.59
10
Alarm 2 set point value
/
Timer set value while A2FU is set to
T.on or T. off, the unit can be HH.MM or MM.SS. It depends on
the “P.tnE” parameter.
-1999 － 9999/
00.00~99.59
10
：Auto-tuning is disable
：Standard type auto-tuning.
Autotune PV is compared wit SV during auto tuning.
：Low PV type auto-tuning.
PV is compared with SV-10%FS during Auto-tuning.
no
：Disable the manual mode Manual control
：Enable the manual mode.
no
Output percentage. Adjustable when “Hand” is set to “Yes”
-100.0
－ 100.0
0.0
SOFT LEVEL
Code Description Range Default
Ramp rate for the process value to limit an abrupt Change
of process (℃/min)
0 - 9999
（0.0 –
999.9）
0.0
Set point value of soft-start
LoLt － HiLt ０
Output percentage of soft-start
0.0 - 100.0 100.0
PID LEVEL
CODE DESCRIPTION RANGE Default
Proportional band variable. Set to 0.0 for ON/OFF control mode
0.0-300.0% 10.0
Integral time (Reset). This value is automatically calculated by
activating the Autotune function. If desired, the user can later
0-3600sec 240
