Extech Instruments 96VFL Instruction Manual

48VFL & 96VFL v1.2 07/13

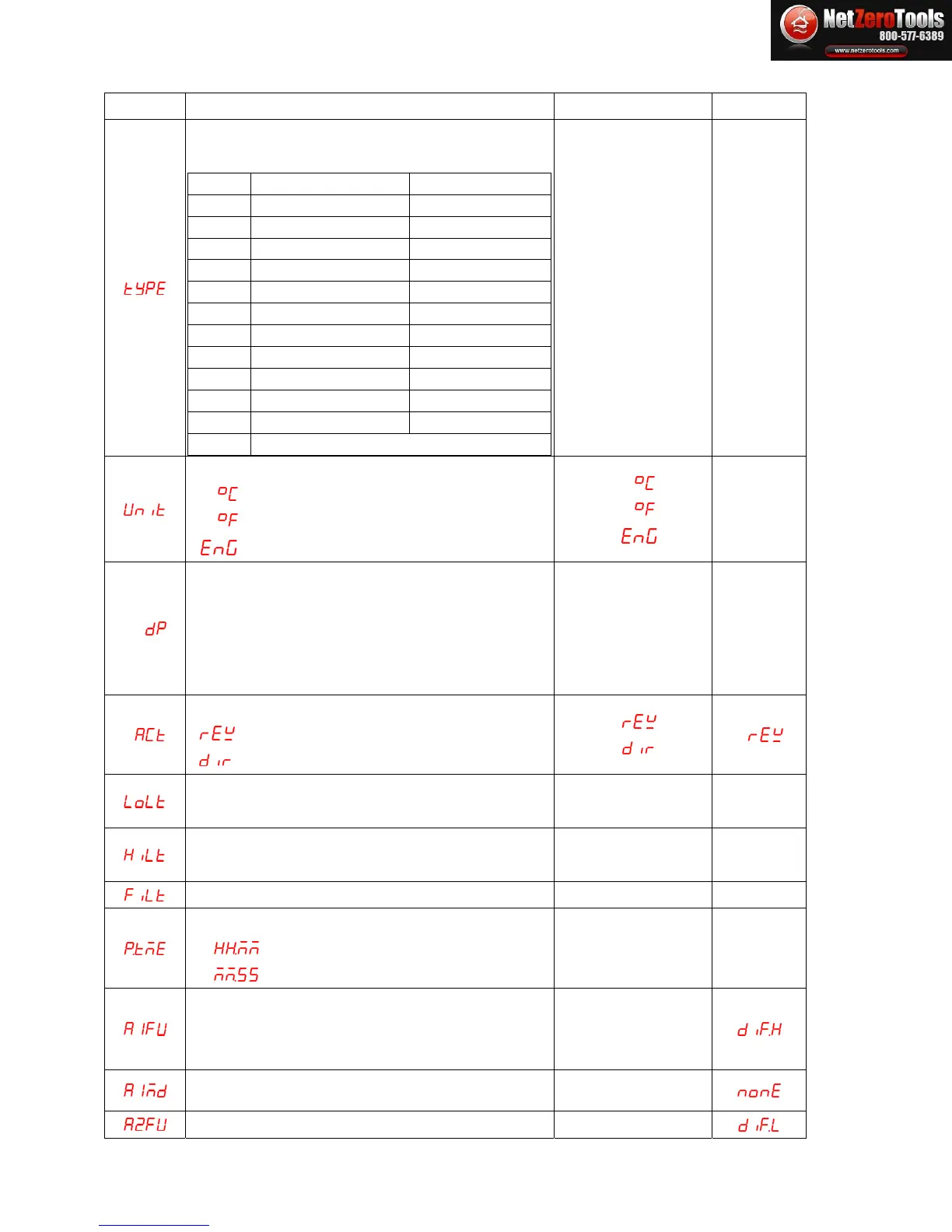

OPTION LEVEL
CODE DESCRIPTION RANGE Default
Input type selection.
tYPE
RANGE(℃) RANGE(℉)
J
-50 ～ 1000 -58 ～ 1832
K
-50 ～ 1370 -58 ～ 2498
T
-270 ～ 400 -454 ～ 752
E
-50 ～ 750 -58 ～ 1382
B
0 ～ 1800 32 ～ 3272
R
0 ～ 1750 32 ～ 3182
S
0 ～ 1750 32 ～ 3182
N
-50 ～ 1300 -58 ～ 2372
C
-50 ～ 1800 -58 ～ 3272
D-PT
-200 ～ 850 -328 ～ 1652
J-PT
-200 ～ 650 -328 ～ 1202
LINE
-1999 ～ 9999
Refer to figure. K
Unit of process value
：Degrees C
：Degrees F
: Engineer units for linear input
℃
Decimal point selection
0000：No decimal point
000.0：0.1 resolution
00.00：0.01 resolution, used for linear input only
0.000：0.001 resolution, used for linear input only
0000
000.0
00.00
0.000
0000
Output 1 control action.
: Reverse action for heating
: Direct action for cooling
Low limit of span or range. Set the low limit lower than the
lowest expected SV and PV display
Full range 0
High limit of span or range. Set the high limit higher than
highest expected SV and PV display
Full range 1000
Software filter. 0.0-99.9
10.0
Time scale for timer alarm.
Hours:Minutes;
Minutes:Seconds
00.00~99.59 00.00
Alarm 1 function. Refer to alarm section for details
If A1FU=None, the alarm function is cancelled
None, Hi, Lo,
dif.H, dif.L, bd.Hi ,
bd.Lo
t.on, t.oFF
Alarm 1 mode. Refer to alarm mode section for detail..
none, Stdy,
Lath, St.La
Alarm 2 function. Refer to alarm function section for detail
none, Hi, Lo, dif.H,
