6 BR200-BR250-KITS_en-GB_v9.1 3/20

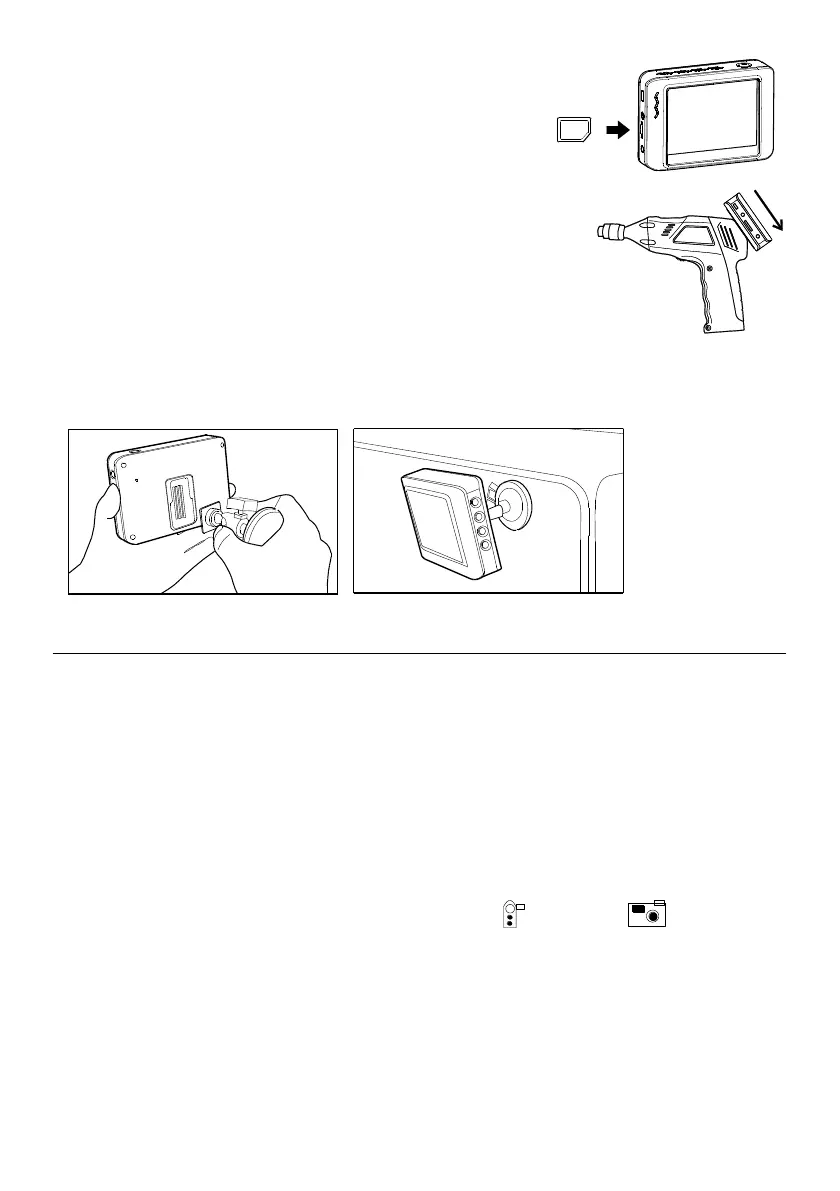

Inserting the micro SD card
Insert card with arrow pointing toward slot. Gently apply
pressure until the card locks into the spring loaded slot. To
remove, gently push the card inward and then release to eject it
from the card slot. Please use a Class 6 or better TF Flash
memory card.
Attaching the monitor to the camera controller
Insert the monitor’s plug into the jack at the back of the camera
controller and slide the monitor downward to lock it into position.
See accompanying diagram.
Remotely mounting the monitor
The supplied magnetic bracket slides onto the rear of the monitor. Mount the monitor on a
magnetic surface for convenient remote viewing. See diagrams below. The wireless feature of
this system allows you to place the monitor up to 10m (33 ft.) from the measurement location.
Operation
1. Turn the ON/OFF dial switch on the cameral controller to power the camera. The power
indicator on the controller will switch on. The ON/OFF switch then acts as a dimmer for the
LEDs on the camera head.
2. Press and hold the monitor power button for at least 2 seconds to power the monitor; the
power indicator will illuminate and a Welcome screen will appear on the monitor.
3. Remove the protective cap from the camera lens and store it safely in the carry case.
4. The real-time image will then appear on the display LCD monitor.
Note: If the picture does not properly synchronize or has poor color, check that the
NTSC/PAL setting is correct. See the Settings Menu section.
5. Use the up arrow button on the monitor to select video or still image mode.
6. Turn the dimmer dial on the camera controller to adjust the LED light intensity.
7. Bend the flexible cable into the desired position. The cable can be bent into the shape of
most examination areas, but please do not bend the cable excessively as this can cause
damage to the system.
