Measurement Modes
There are three (3) measurement modes. Momentarily press the MODE button to step from one
mode to the next:
WOOD MEASUREMENT MODE (WOOD GROUPS WI, W2, W3)
BUILDING MEASUREMENT MODE (MATERIAL GROUPS B1, B2, B3, B4)
SELF TEST MODE (TEST)

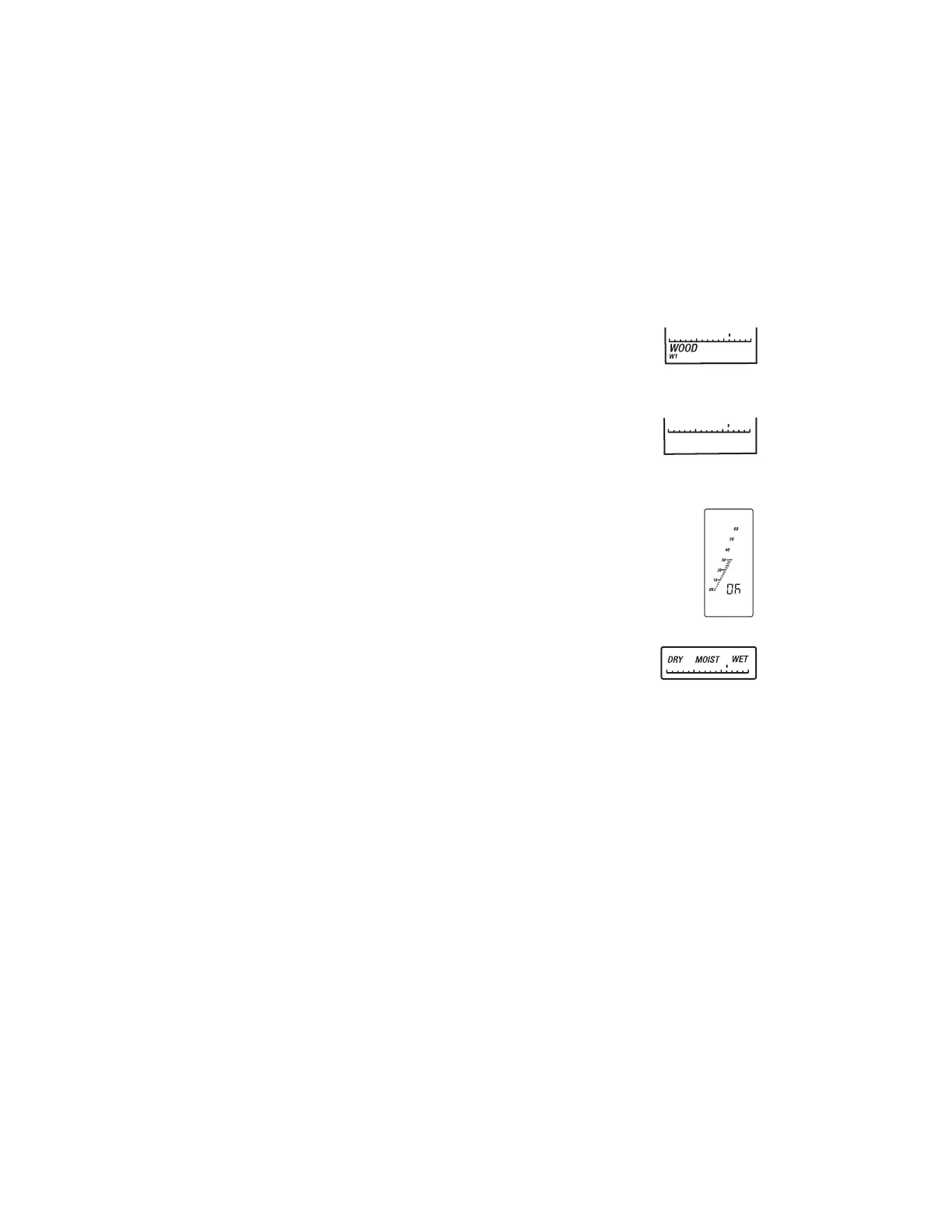

Wood Measurement mode
Momentarily press the MODE button to select the Wood Measurement
Mode. Use the SET button to choose the desired wood group (W1, W2,
W3) (refer to the Wood Group Table in the Appendix).
Building Material Measurement Mode
Momentarily press the MODE button to select the Building Measurement
Mode and use the SET button to choose the desired building material
group (B1, B2, B3, B4). (refer to the Building Material Group Table in the Appendix).
Self Test Mode
Momentarily press the MODE button to select the Self Test Mode. Touch the
measurement pins to the test points labeled ‘T’ on the protective cap. The
display will read OK if the test passes (30 units ±2) or it will display dashes if the
test fails. Next, touch the measurement pins to the test points labeled ‘B’. The
display will read OK if the test passes (60 ±2) or it will display dashes if the test
fails. If tests are failing please return the unit for repair or replacement.
Dry/Wet Indication
Moisture reading will also be displayed on the user defined wet-moist-
dry display. Setting the range of the display is described in the
programming section.
W2 W3
BUILD
B2 B3 B4B1
TEST
