Extech Instruments RH520A User Manual

3 RH520A-en-GB_v4.8 6/19

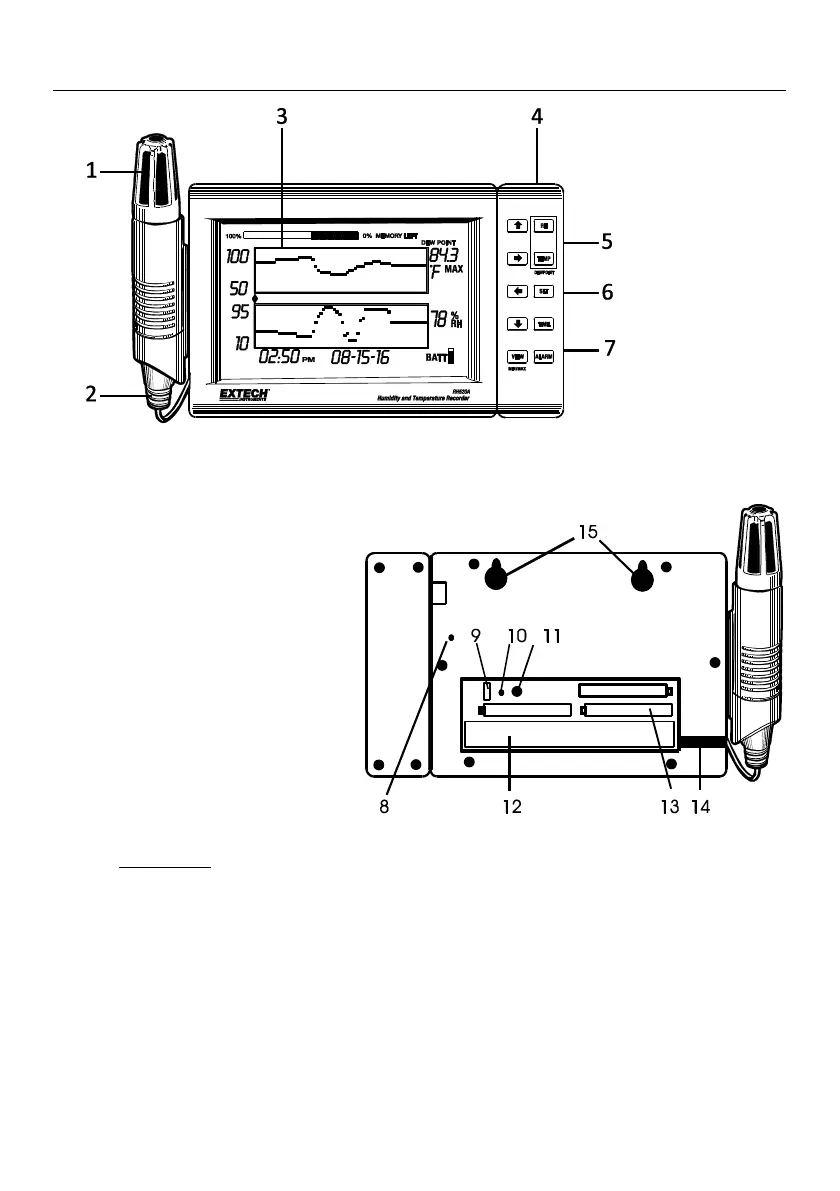

RH520A Description
1. Remote sensor
2. Sensor cable
3. LCD Display
4. Swivel keypad / table-top
stand
5. PC interface jack
6. Universal alarm module jack
7. AC adaptor jack
8. DATA RESET button (clears recorded measurement data and alarm history)
9. Temperature units select switch (C or F)
10. PROGRAMMING RESET button (clears programming changes but retains measurement
data and alarm history)
11. Display CONTRAST adjust
12. Sensor cable storage area
13. ‘AA’ 1.5V batteries
14. Sensor cable run
15. Wall mount holes

Extech Instruments RH520A Specifications

Temperature and Humidity

temperature range	-28 to 60 °C
temperature accuracy	±1.0 °C
humidity range	10 to 95 %
humidity accuracy	±3.0 % RH
dew point temperature	-28 to 60 °C

Power

power supply	Three ‘AA’ batteries and AC adaptor
dc voltage	5 V
battery life	4 weeks typical

Operating Environment

operating temperature range (control module and display)	0 to 50 °C
operating temperature range (sensor)	-28 to 60 °C
operating humidity (control module and display)	90 % RH max.

Memory and Data Logging

internal memory storage	49, 152 complete reading sets
sampling interval	0.1 to 199.9 minutes
alarm output current	3.4 mA @ 5 VDC

Weight and Dimensions

weight	357 g
dimensions	127 x 196 x 23 mm
