Extel WESV 82300 - 2. COMPOSITION OF THE KIT; 3. TECHNICAL CHARACTERISTICS; a. Technical specifications; b. LCD monitor

CFI EXTEL WESV 82300 - 04/2012 - V1
GB3

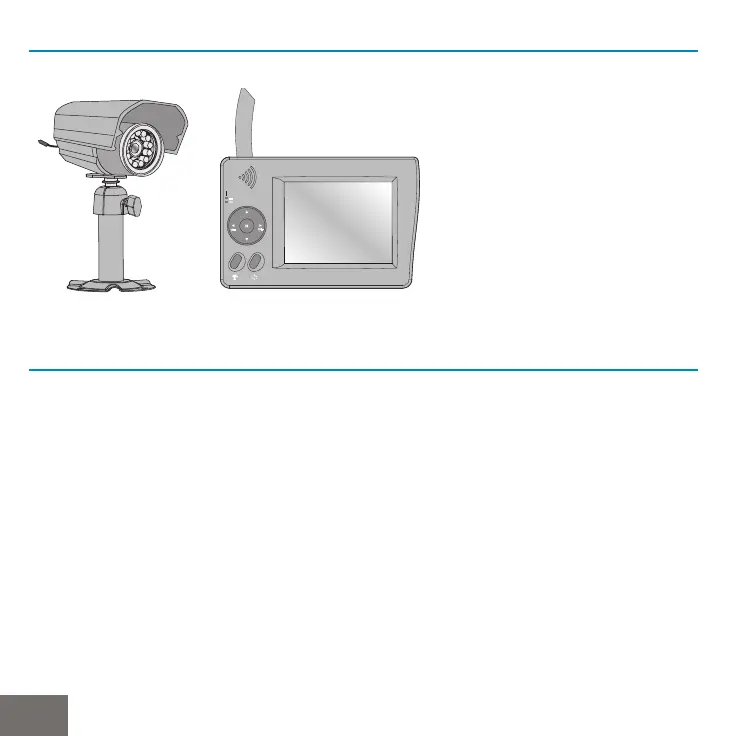

2. COMPOSITION OF THE KIT
• One 2.4Ghz wireless colour
camera
• One camera adaptor (7.5v/300mA)
• One colour LCD monitor
• One monitor adaptor
(7.5v/800mA)
• One camera bracket + fastenings
• One RCA-Jack cable for Audio/
Video output
3. TECHNICAL CHARACTERISTICS
a. Technical specifications:
- Radio frequency 2.4 GHz
- FM Modulation
- Range: approximately 100 m in free field.
b. LCD monitor
- Screen: 9cm in diagonal
- Monitor power supply: 7.5VDC.
- Power consumption: 800 mA.
- Channels: 4.
- Dimensions: 133x86x27(mm)
- Weight: 150 g
- Operating temperature: -10°C to + 50° approx.
- AV OUT: Audio/video jack connections (3.5 mm jack plug).
