4. INSTALLING THE CAMERA

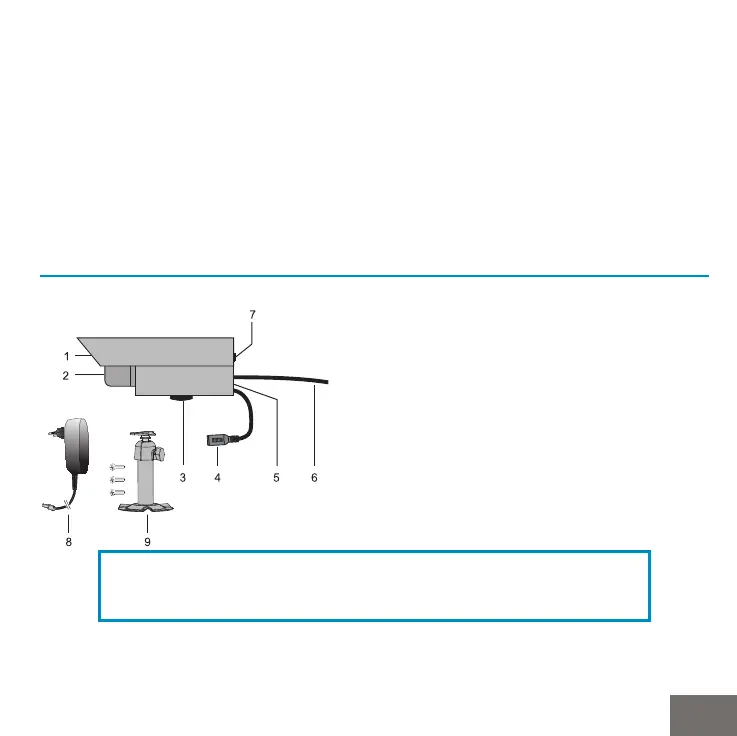

a. Description of the camera
1. Protection of the cameras (IP 44)
2. Infrared diodes with darkness detector
3. Threaded hole for fixing the bracket
4. Connector for adaptor
6.Antenna
7. Channel selector
8. AC/DC adaptor supplied
9. Fixing bracket
Choose a suitable location to install the camera.
As far as possible your system must be installed in a dust-free place with weak vibrations and a
good circulation of air and must be equipped with a wall socket for the 5 VDC adaptor.
c. Camera
- Power supply (straight plug): 7.5VDC.
- Power consumption: 300 mA.
- Channels: 4.
- Light sensitivity: 3 lux* (* Use an additional lighting system overnight).
- Infrared Led: 11 infrared diodes.
- Camera lens: 1/3’’ CMOS colour /628x586 pixels (PAL) or 1/4’’ CMOS colour /656x492(NTSC)
- Weight (without bracket): 140 g.
- Operating temperature: -10°C to 50° approx.
- Dimensions: 100 x 38 x 40 (mm).
CAUTION
Be sure any element does not avoid inserting the
screws in the wall.
