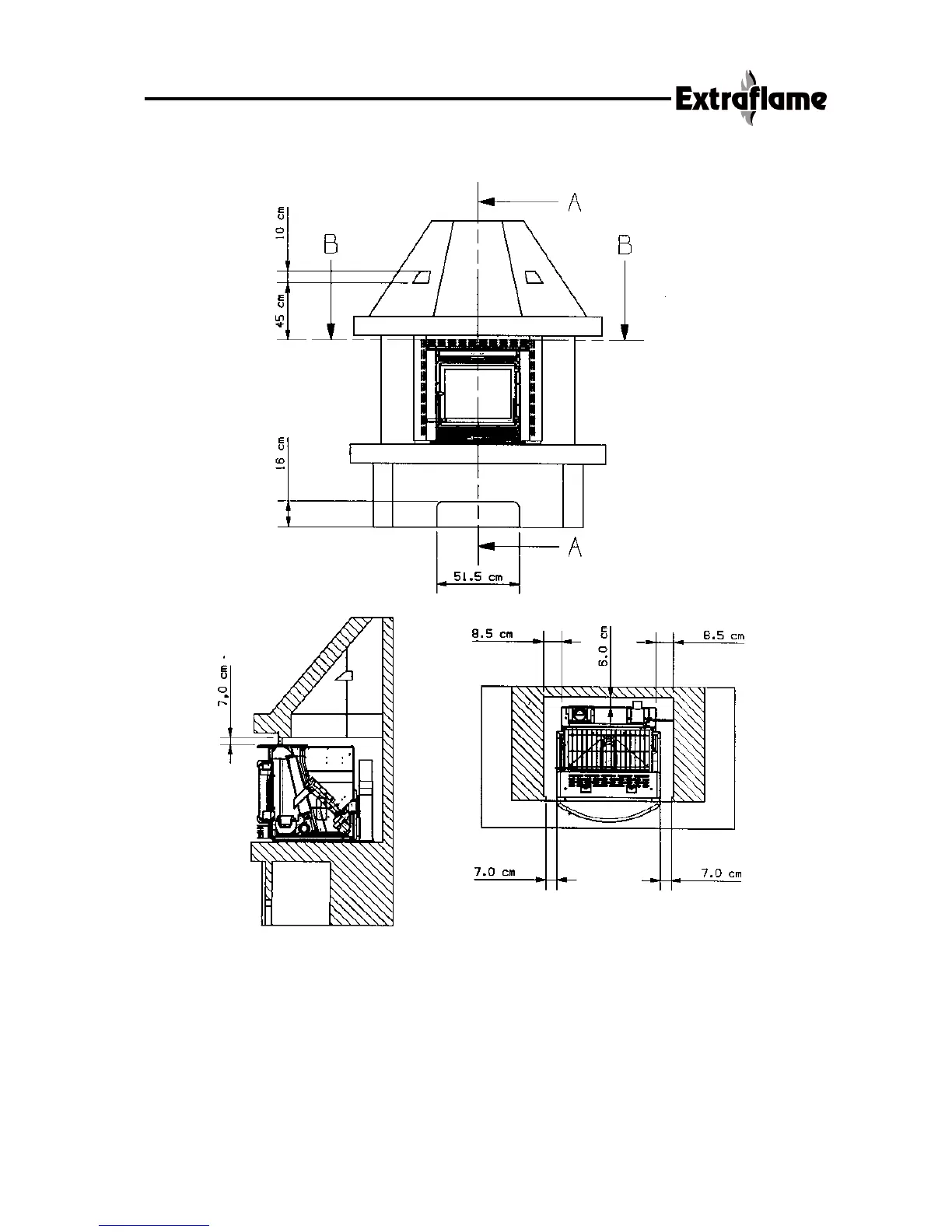

For a correct and safe operation of the insert Comfort, you have, during the construction of the fireplace,
respect the measures (Fig.17) between insert and internal walls of the fireplace, above all the measure of
7,0 cm must be exact (in order to adapt the equipped frames), while the rest of the measures can be,
in case, increased or decreased at manufacture’s discretion.
NB: The fumes outlet pipe must always keep a min. distance of 5 cm. from inflammable parts.
Fig. 17
