1. ON/OFF BUTTON
The stove can be turned on and off automatically by pressing button 1.
2-3 SETTING THE TEMPERATURE AND TIMER-THERMOSTAT
The buttons 2-3 are used to adjust the room temperature inside the house
(
see chap. 12) and program the weekly starts/stops using the timer-thermostat
4-5 ADJUSTING THE FEED RATE
The buttons 4-5 are used to adjust the heating power and warm air ventilation starting
from a minimum setting of :
Ecologica: 2,5 KW/h till to max 11 KW/h
I.C.Maxi: 2,5 KW/h till to max 9,4 KW/h
I.C.Mini: 2,5 KW/h till to max 7,5 KW/h
Babyfiamma: 1,7 KW/h till to max 5,1 KW/h
Preziosa: 1,7 KW/h till to max 5,1 KW/h
Divina: 2,5 KW/h till to max 11 KW/h
Bella-Bella Lux: 2,5 KW/h till to max 7,5 KW/h
Contessa: 2,5 KW/h till to max 9,4 KW/h
Ecologica Idro: 2,5 KW/h till to max 14,47 KW/h
D1 Display for showing the different messages
D2 Display for showing the set heating power
REMOTE CONTROL SENSOR
D2
fig. 20 bis
D2
D1
REMOTE CONTROL SENSOR
fig. 20
D1

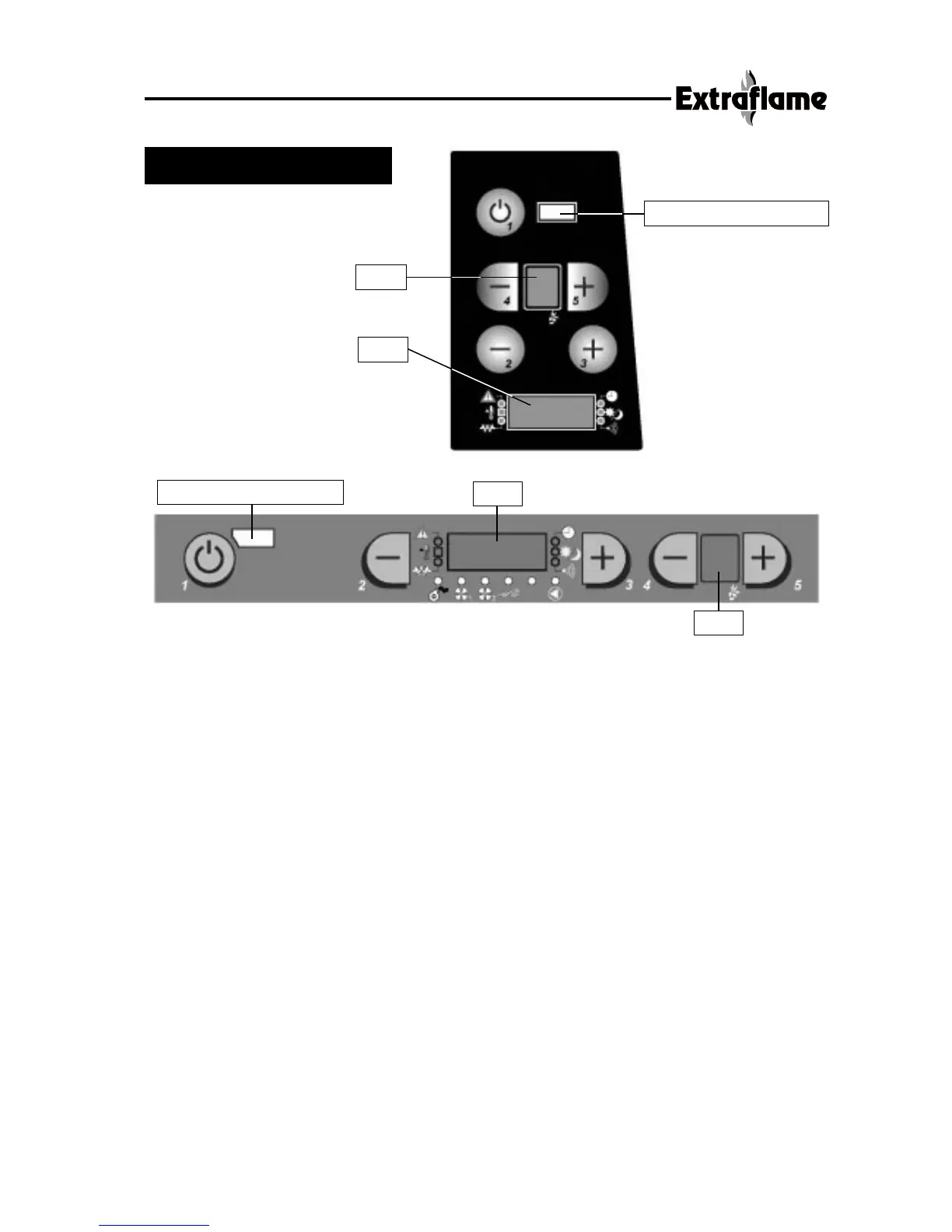

8 CONTROL PANEL
