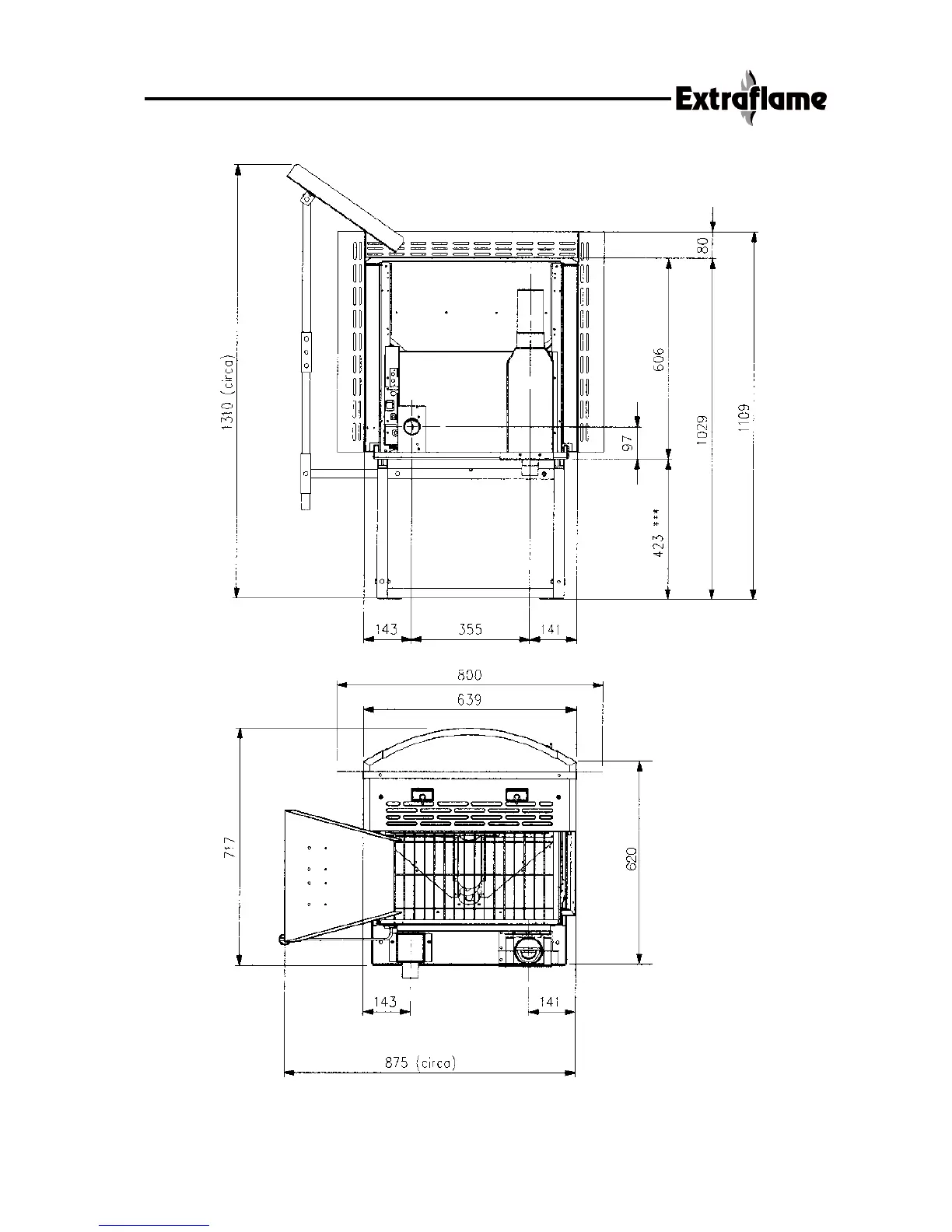

*** Minimum Height
The detail “ adjustment pipe”
is pre-drilled with 3 holes Ø 9 :
90-100-90.
For other adjustments, drill
according to needs.
A: FUMES OUTLET PIPE ø 80
B: AIR INTAKE PIPE ø 50
A
B
I.C. Maxi
