SAFETY DEVICES
18
TABLE OF THE DEVICES FOR CLOSED VESSEL SYSTEMS PRESENT AND NOT PRESENT IN THE PRODUCT
COMFORT IDRO DUCHESSA IDRO
Safety valve *1 *7
Pump control thermostat
* (managed by H
2
O probe
and board  rmware)
* (managed by H
2
O probe
and board  rmware)
Acoustic alarm activation thermostat - -
Water temperature indicator * (display) * (display)
Pressure indicator - -
Acoustic alarm - -
Adjustment automatic circuit breaker switch * ( board  rmware) * ( board  rmware)
Minimum and maximum pressure pressure switch * 1 * 8
Water overheating automatic circuit breaker block
switch (block thermostat)
* 2, 3 *13, 14
Circulation system (pump) - * 9, 10
Expansion system - * 6
Safety dissipation system incorporated with
the generator with thermal safety valve (self-
activated), whenever the appliance does not
have a temperature self-adjustment system.
Not necessary as the machine has a t° self-adjusting
system and a block automatic circuit breaker switch.
As per standard (*) Not as per standard (-)

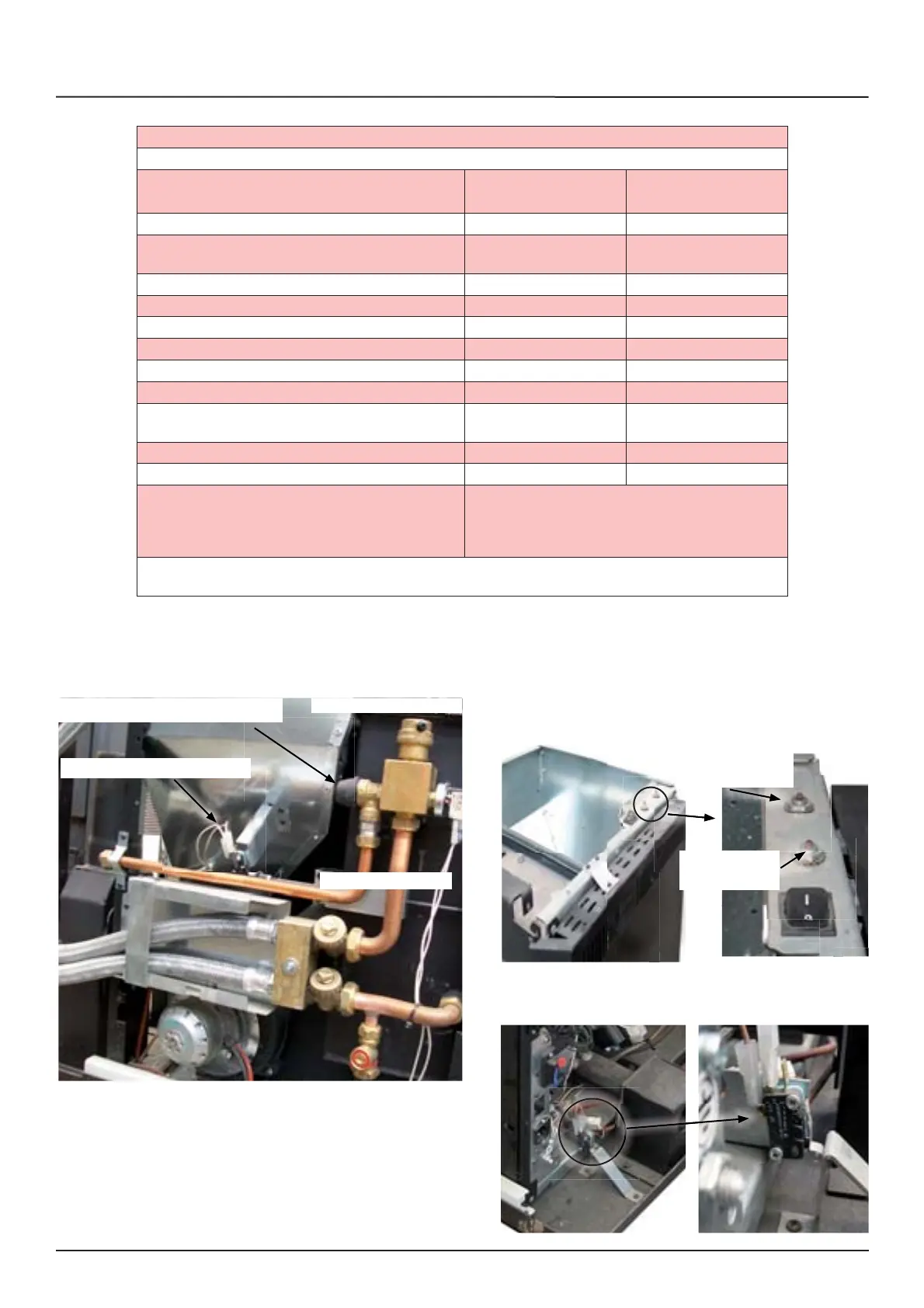

COMFORT IDRO SAFETY DEVICE IMAGES
3 Bar safety valve
Pressure switch
Door micro switch
Air valve
Rearm bulb
100°C
Bulbs positioning panoramic
Rearm bulb
85°C
end run micro switch panoramic
