WHAT IS THE PELLET?
13

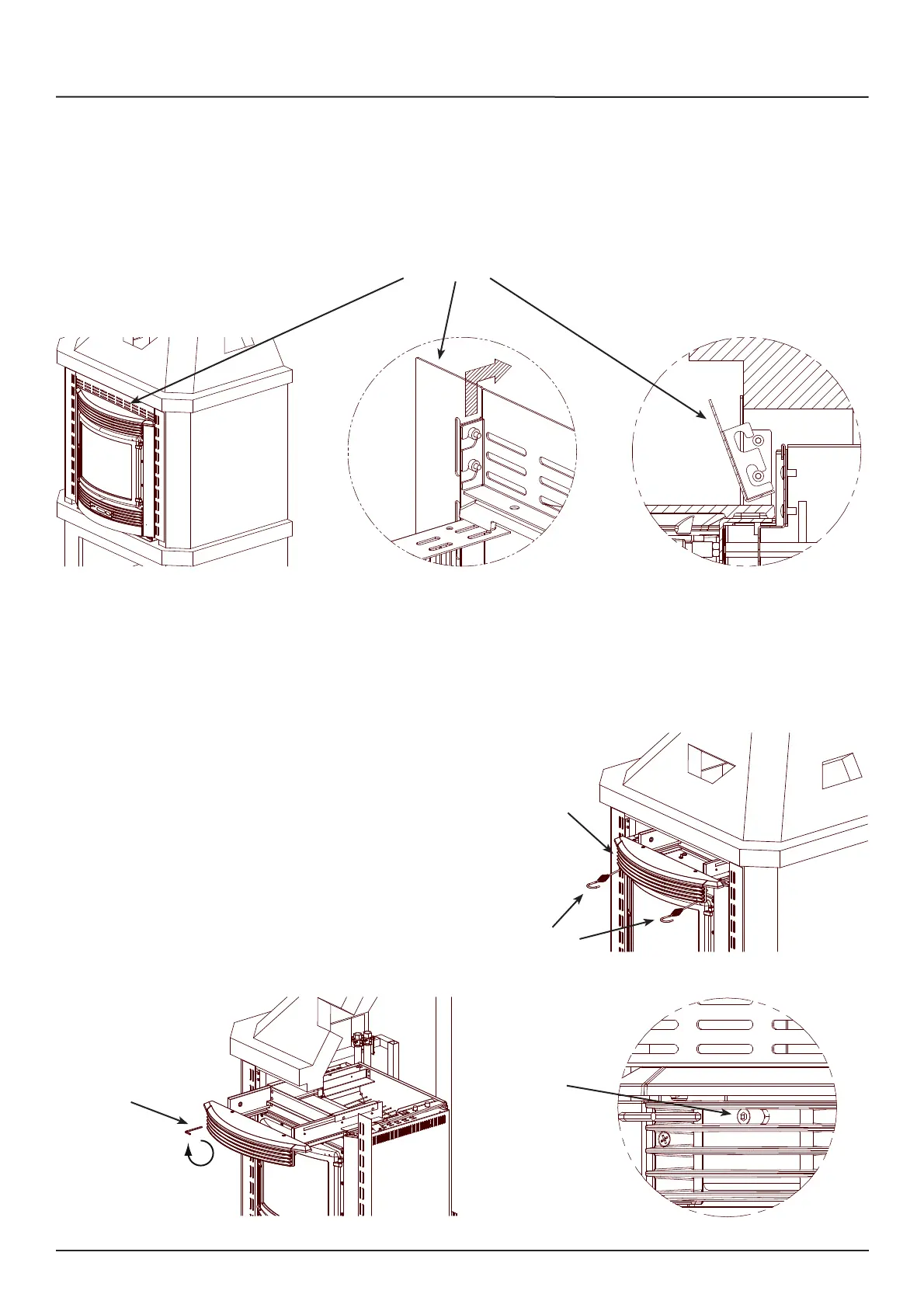

FRONT UPPER FRAME
gure 3.2 gure 3.3 gure 3.4
PELLET FRONT FEEDING OPTIONAL KIT
The use of this optional kit allows to feed the pellets into the feed-box from the front without extracting
the ue, therefore without switching it o .
First, remove the front, upper frame by unhooking it from the 2 lateral frames: to do this, lift it by about 10
mm and then pull it towards yourself. The frame must be picked-up using protection for the hands as it
could have overheated during functioning.
GRATE
IN CAST
IRON
FIRE IRONS
ALLEN
WRENCH
INSERT TO
ALLEN
WRENCH
gure 3.5
gure 3.6
gure 3.7
Take the re irons supplied, attach them to the 2
holes in the lower part of the cast iron grate and pull
to maximum extension.
Take the supplied Allen wrench, insert it into the
relevant seat and turn in a clockwise direction until
fully home. If this operation has been carried out
correctly the drawer will be blocked and cannot be
moved forwards or backwards.
