<FC-3000, FC-7150, FC-7015 only>
- MAX. INPUT VOLTAGE LEVEL

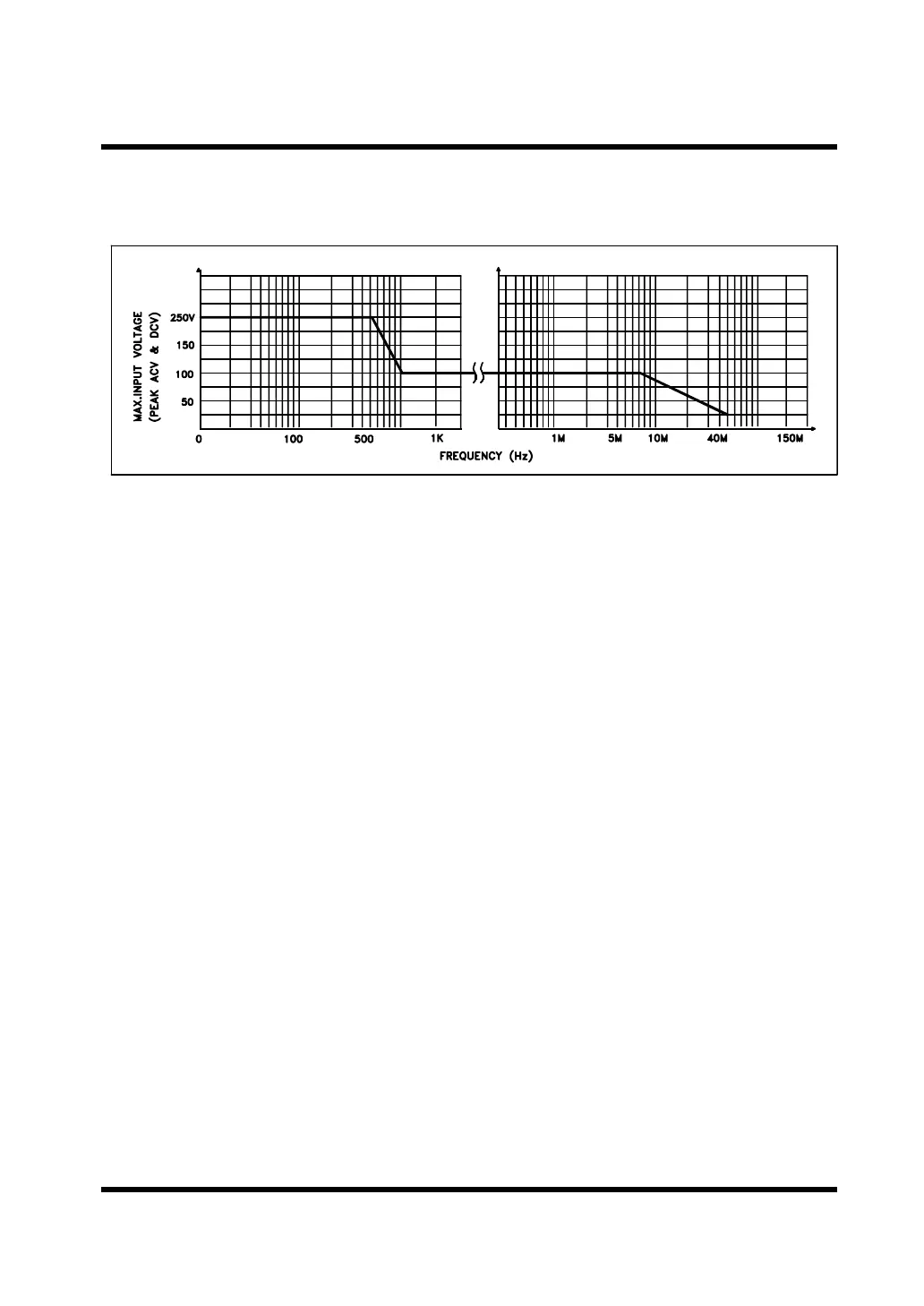

FIG 1. MAX. Input Level. (input A,B)
 INPUT B. CHARACTERISTICS <FC-7150U, FC-7015U>
- FREQUENCY RANGE : 0.1Hz to 100MHz (DC Coupled)
30Hz to 100MHz (AC Coupled)
- SENSITIVITY : 0.1Hz to 100MHz: 30mV
- COUPLING : AC or DC Selectable
- IMPEDANCE : 1 MΩ Resistance, Shunted by < 40pF
- ATTENUATOR : x 1 or x 10 Switch Selectable
- LOW PASS FILTER : -3dB Point of 100KHz, Switch Selectable
- SLOPE : Positive or Negative Switch Selectable
* Resolution and Number of displayed digit (Table 1): Same as INPUT A
* Max. INPUT VOLTAGE LEVEL (FIG 1): Same as INPUT A
 TIME INTERVAL(A→B) <FC-7150U, FC-7015U>
- RANGE : 0.1 uSec-10Sec(0.1Hz-10MHz)
- LSD : 100nSec
- RESOLUTION : ± LSD ± Trigger Error*
- ACCURACY : ± LSD ± Trigger Error ±Time base error x T.l
- MULTIPLIER : 1,10,100,1000 (Gate Time: 10S,1S,0.1S,0.01S)
 RATIO(A/B) <FC-7150U, FC-7015U>
- RANGE : 0.1Hz to 10MHz(input A)
: 0.1Hz to 10MHz(input B)
- RESOLUTION : ± LSD ±(B TrIg. ERROR x FREQ. A)/N
- ACCURACY : ±1 COUNT of A ± B TRIG. ERROR x FREQ. A.
