Ezgo MPT® 1000 User Manual
4
of 1
of 1 rating
100 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Page G
-11
Service Parts Manu
al
ELECTRICAL
19
12
15
24
25
5
34
7

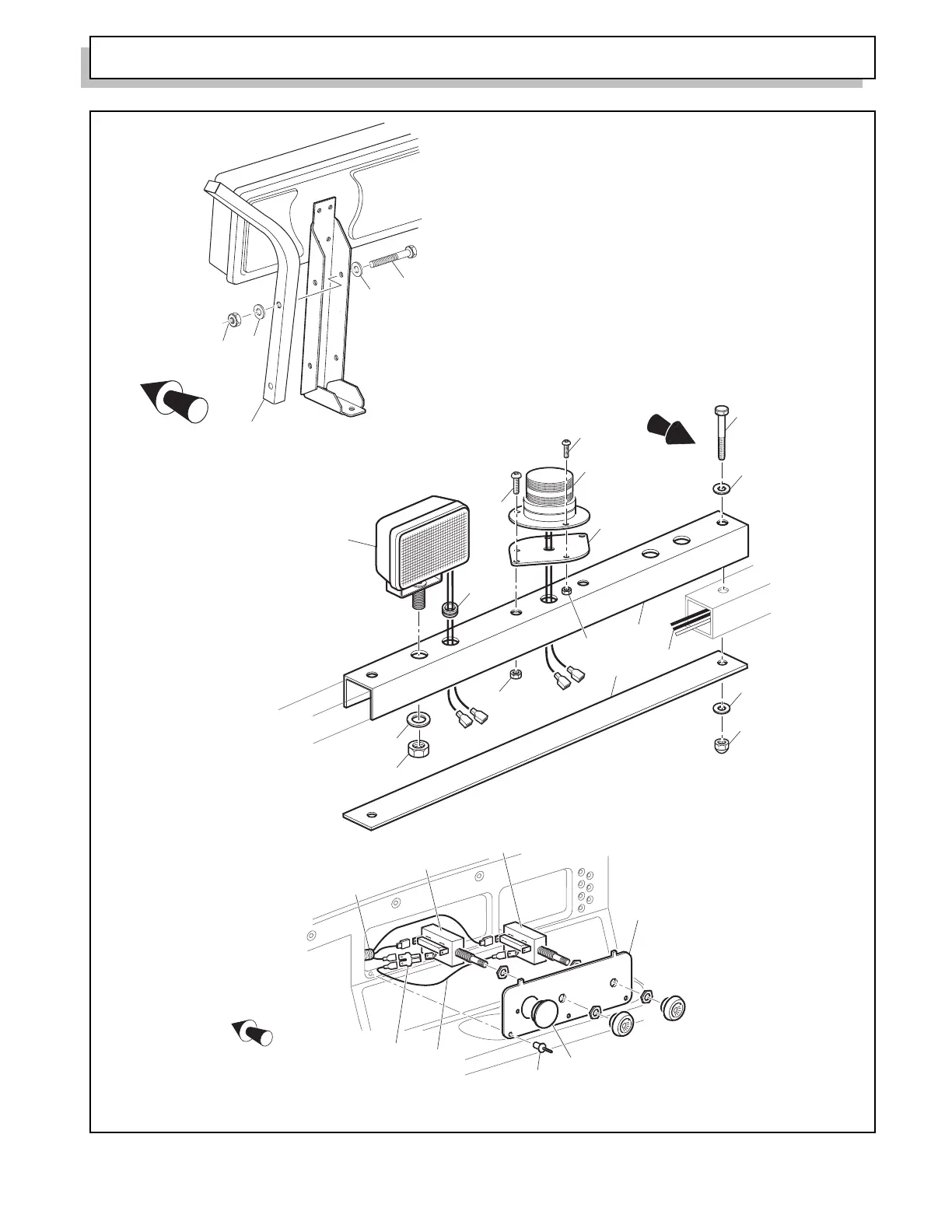

WORK AND STROBE LIGHTS
F
ront of
V
ehicle
1 - Includes Items 2 - 19, 22 and/or 30
10 - Includes Items 11 - 19
22 - Includes Items 23 - 28
30 - Includes Items 31 - 36
23
31
32
18
6
9
33
26
28
36
27
35
Front of
Vehicle
17
11
12
F
ront of
V
ehicle
4
R
ef Ele 20-5
2
3
11
12
12
14
39
16
8
54
56
Table of Contents
Battery Prolonged Storage
3
Table of Contents
4
How to Use the Service Parts Manual
6
Illustrated Parts Breakdown
8
Accelerator Exploded View
9
Accelerator Parts List
10
Battery Charger (Lester) Exploded View
13
Battery Charger (Lester) Parts List
14
Body Exploded View
15
Body Parts List
19
Description Qty
19
Item Part no
19
Brakes Exploded View
25
Brakes Parts List
28
70681-G01 Torsion Spring
30
Pushnut, 5/16
30
Brakes - Front Disc Exploded View
33
Brake Pedal
34
00963-G01 Spherical Nut, 5/16
37
28082-G01 Equalizer Bracket
37
28083-G01 Brake Compensator Bumper
37
70272-G04 Compensator Assembly (Includes Items 19, 20)
37
70581-G01 Flanged Bushing
37
70582-G01 Shoulder Bolt, 3/8 - 16 X 4" Lg
37
70676-G01 Torsion Spring
37
Brake Cable (Driver Side)
37
Brake/Park Brake Pedal Pad Kit (Includes Items 8 - 10)
37
Park Brake Pedal Pad
37
Cab View
43
Cab Parts List
44
Electrical Parts View
45
Electrical Parts List
46
Fuse Block View
49
Horn View
49
Hour Meter Detail View
49
Key Switch and Key Set View
49
Fuse Block Parts List
50
Horn Parts List
50
Hour Meter Detail List
50
Key Switch and Key Set Parts List
50
Headlight View
51
Taillight View
51
Turn Signal View
51
Turn Signal Parts List
52
Taillight Parts List
52
Headlight Parts List
52
Reverse Buzzer View
53
Ground Strap View
53
Ground Strap Parts List
54
Reverse Buzzer Parts List
54
Work and Strobe Lights View
55
Work and Strobe Lights Parts List
56
Electroinic Speed Control - PDS View
59
Electroinic Speed Control - PDS Parts List
60
Front Suspension/Steering View
61
Front Suspension/Steering Parts List
63
Motor View
67
Motor Parts List
68
Rear Axle View
69
Rear Axle Parts List
70
Rear Suspension View
71
Rear Suspension Parts List
72
Seating View
73
Seating Parts List
74
Truck Bed, Plastic View
77
Truck Bed, Plastic Parts List
80
Weather Protection View
83
Weather Protection Parts List
86
Wheels and Tires View
89
Wheels and Tires
90
Wheels and Tire Parts List
91
Specialty Products
93
Options/Accessories
98
